Uponor Wipex hex socket screw set
- Bolt set for Wipex coupling
Item details
Documents
Technical manuals
Installation Report
137 B1120219
Installation Report Ecoflex pressure test water pipes (1120219)
Technical information
10 KB1120217
Technical Information Ecoflex piping systems (1120217)
About
Specification
- Wipex fittings in corrosion-resistant brass, dezincification based on EN ISO 6509 with stainless steel screw.
- O-ring sealing between Wipex coupling and base fitting connectors
- Bolt set for couplers include a hex socket bolt in stainless steel and the nut as well as washer from brass
- Pre-open sleeve design with assembled support part for the dimension 63-110mm.
Application
- Fittings for pipe systems Thermo, Aqua, Quattro, Supra, Supra PLUS and Supra Standard
- Connection of PE and PE-Xa medium pipe to couplers with cylindrical inch male thread
- Max. operating temperature 95°C
Certification
- Approvals should be checked by local responsible person
Product drawings

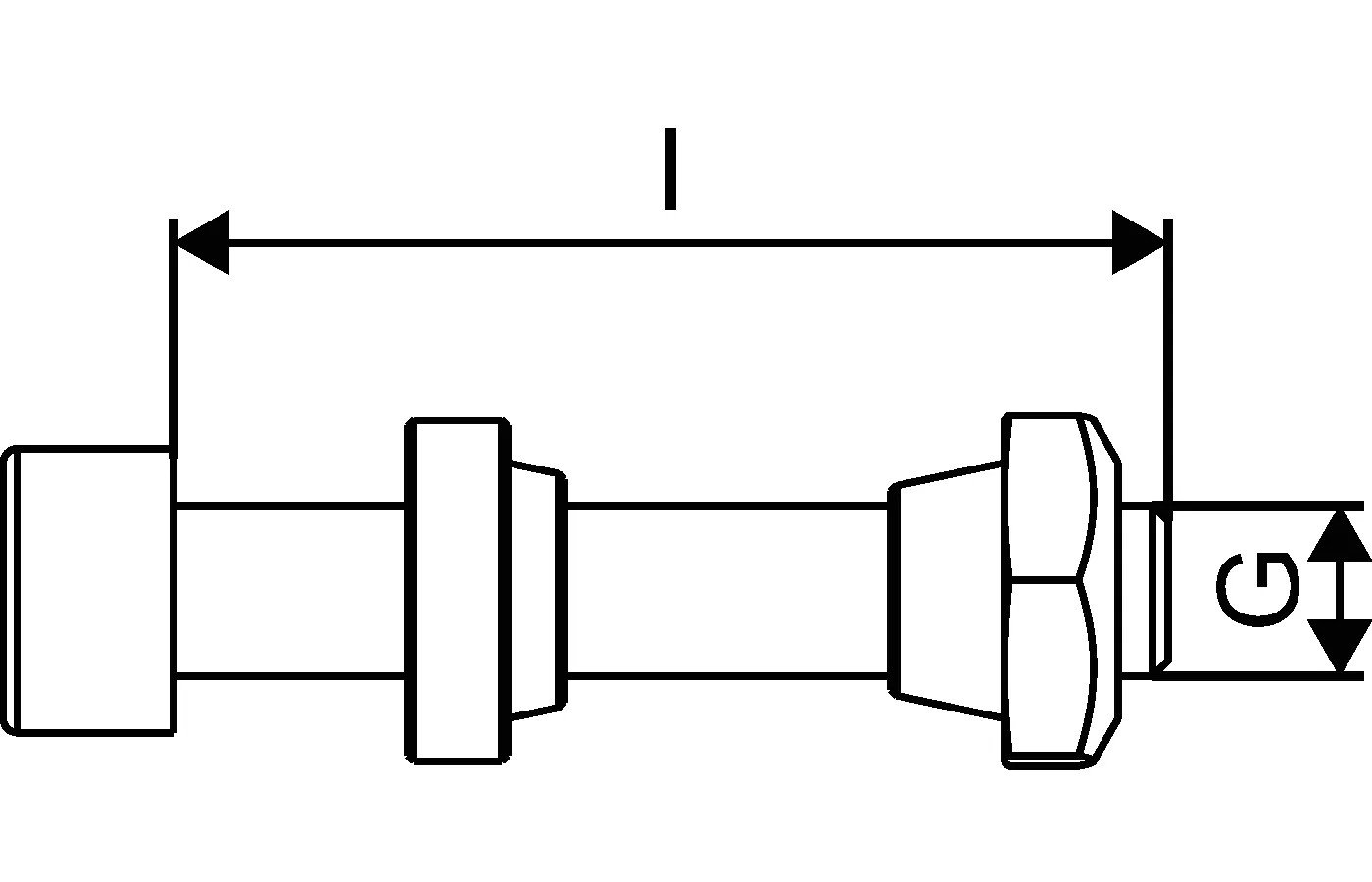

Z-drawing

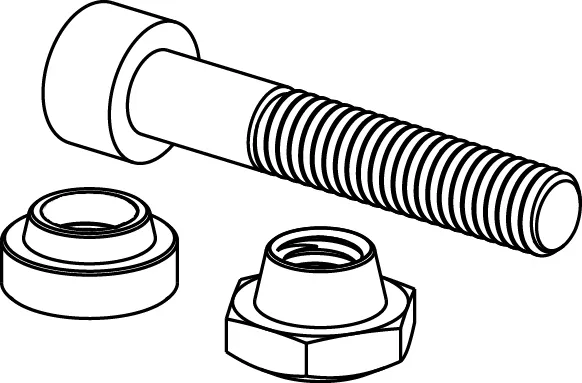

Label drawings

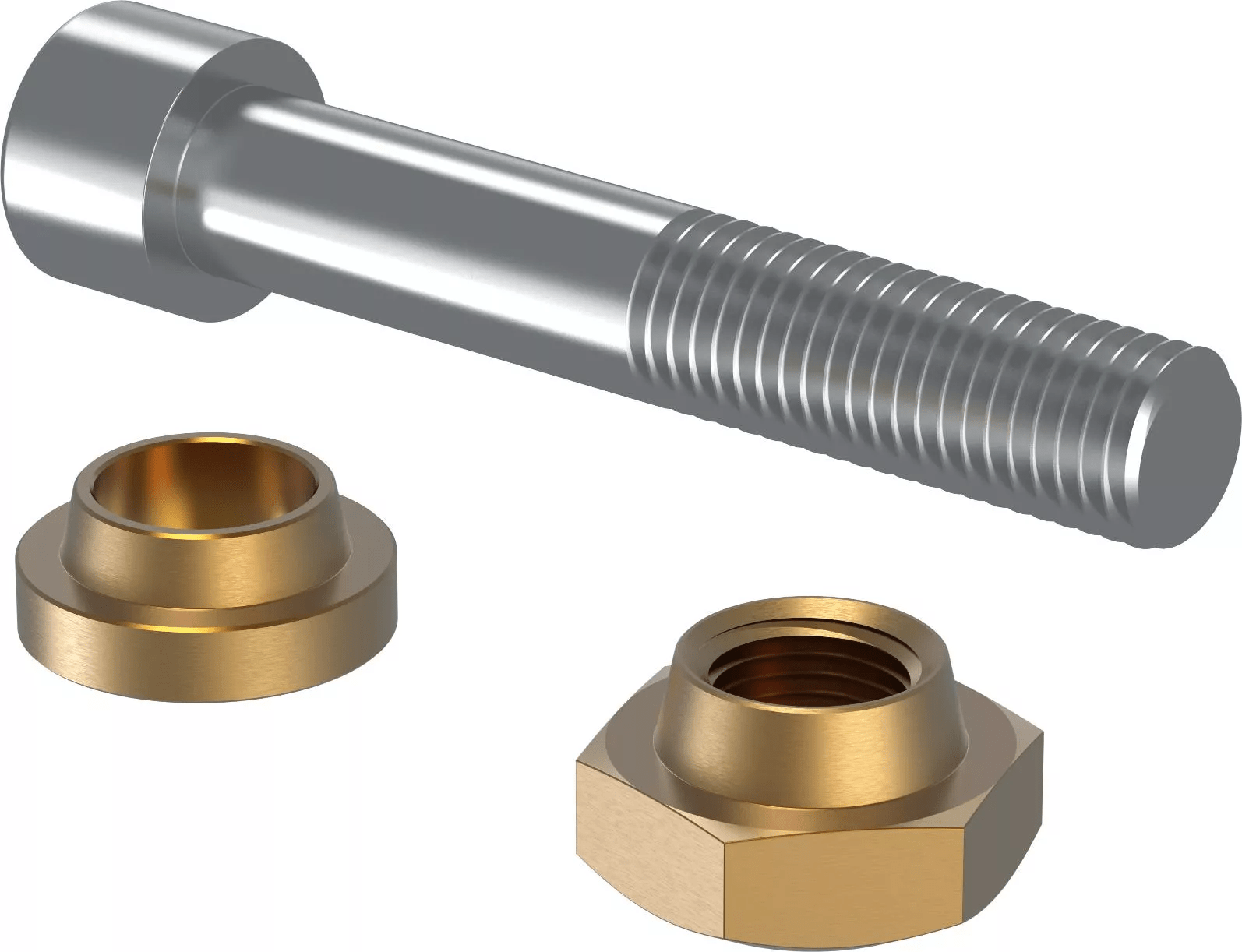

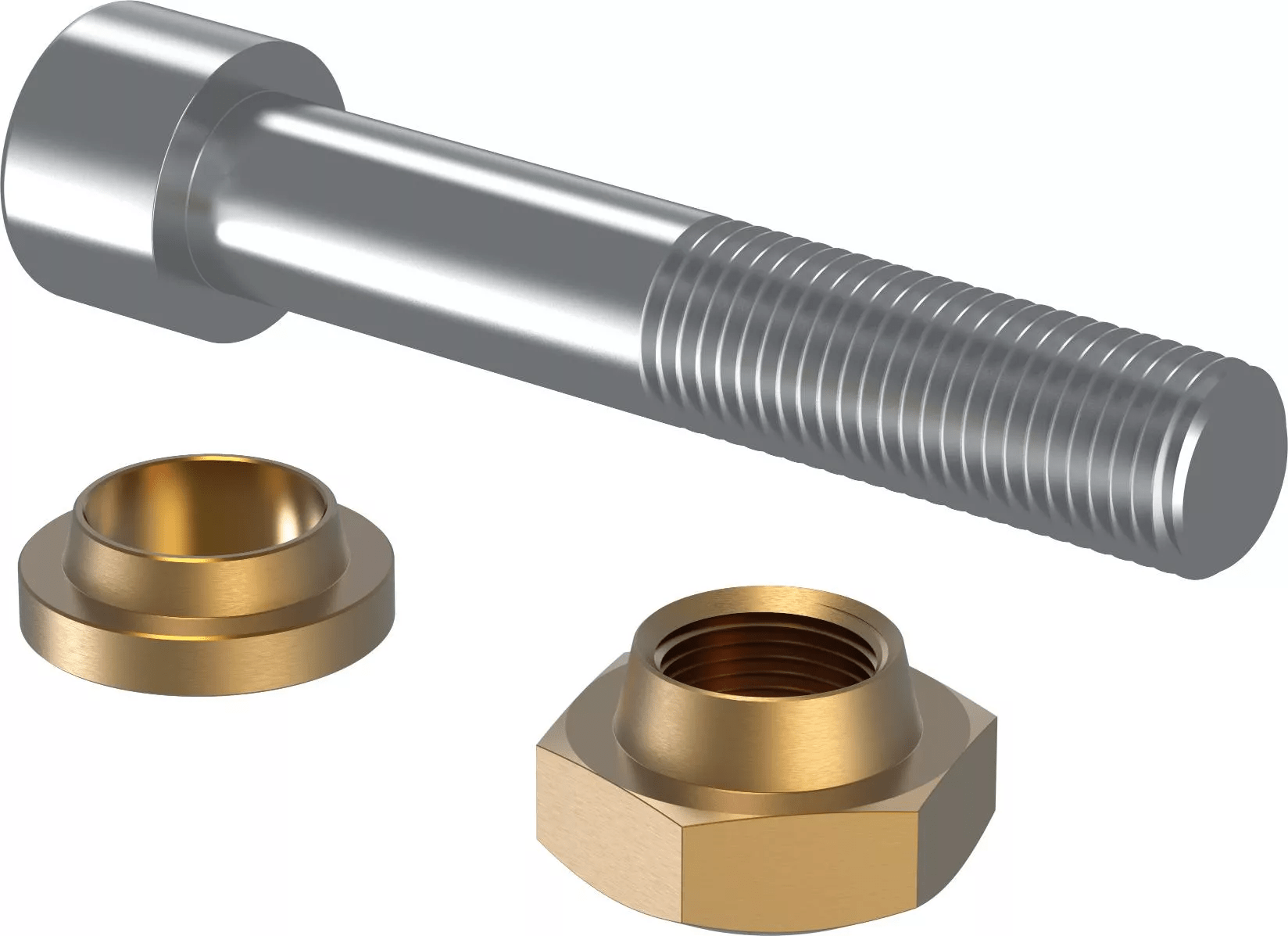

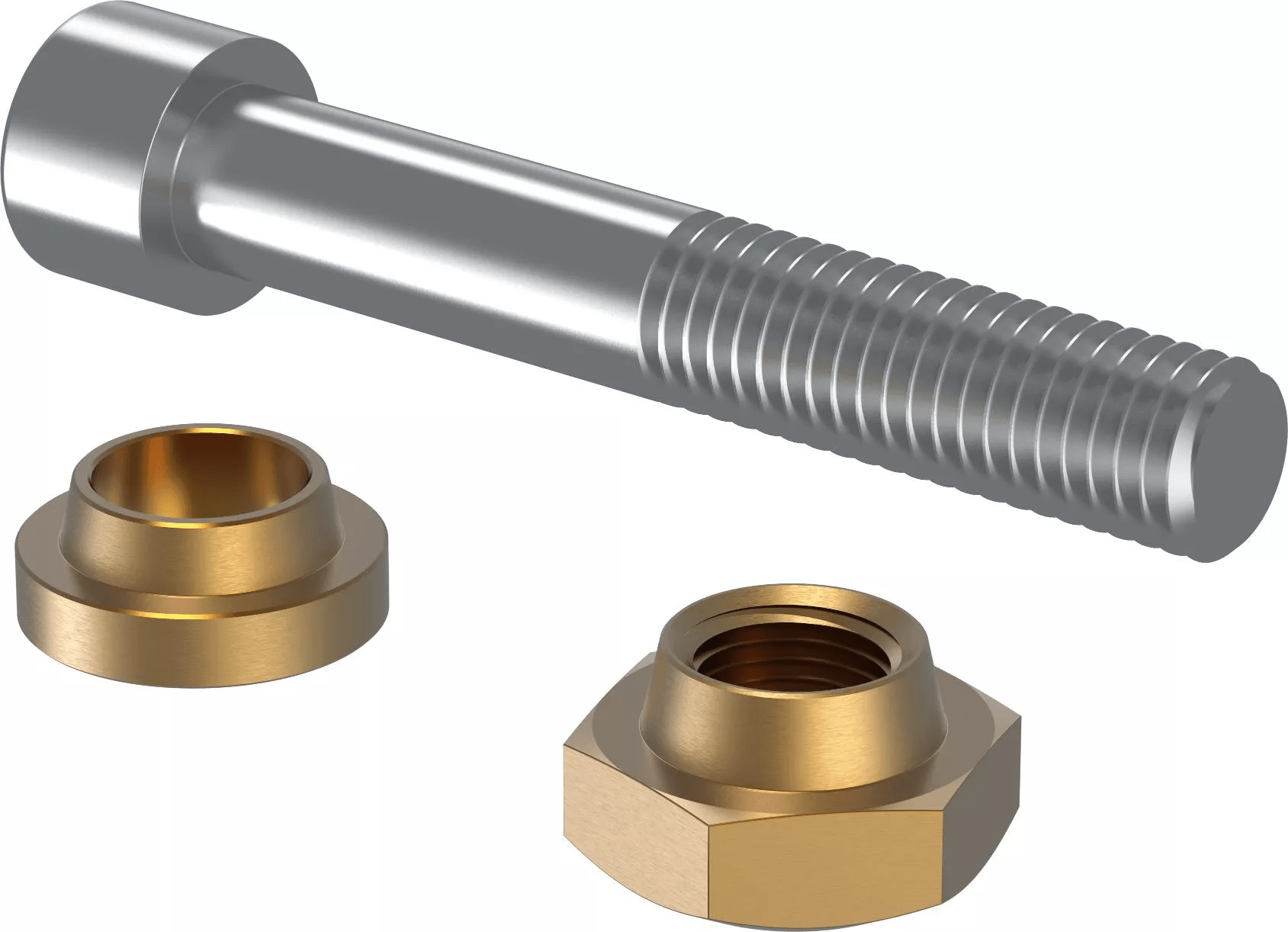

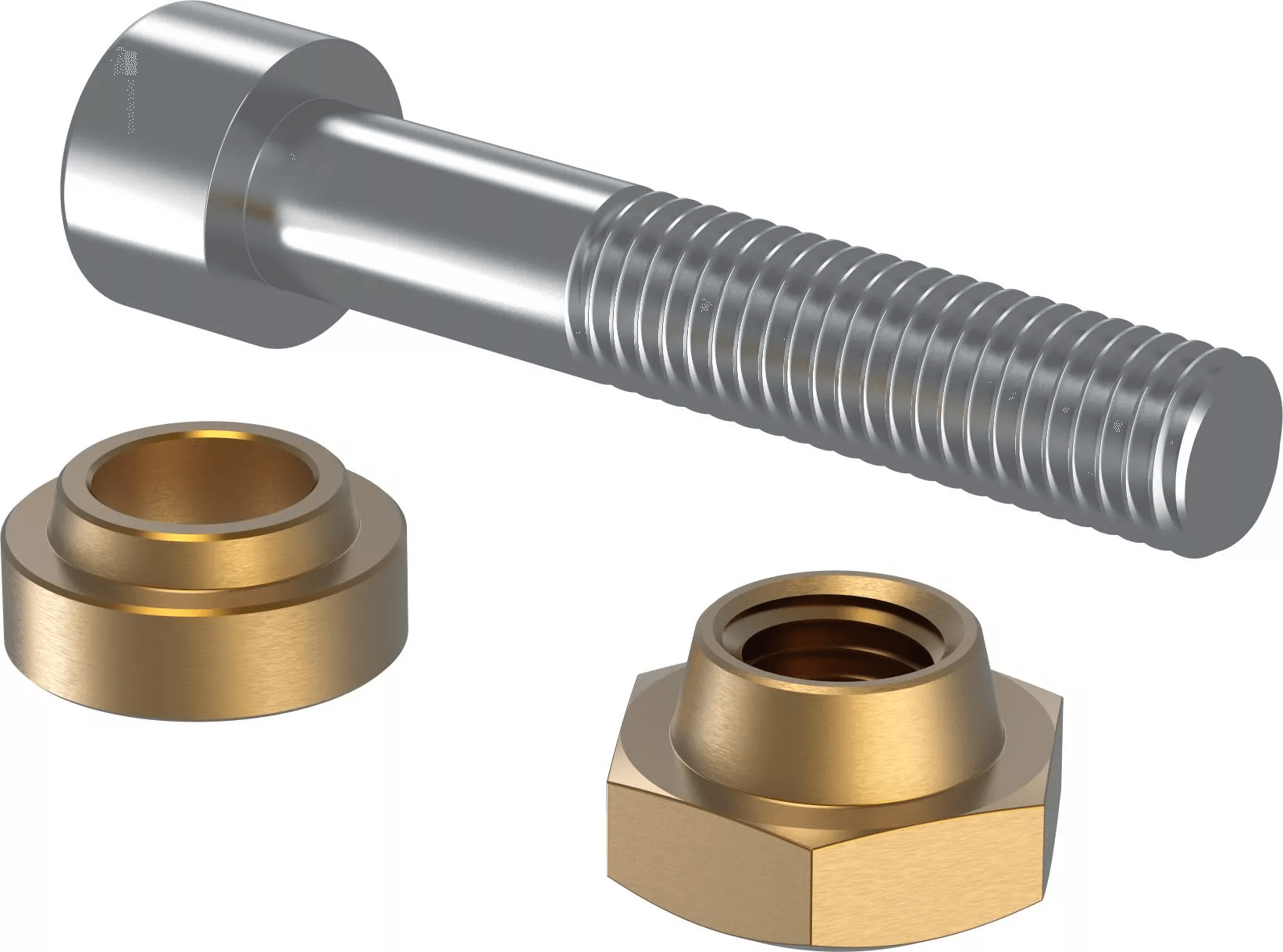

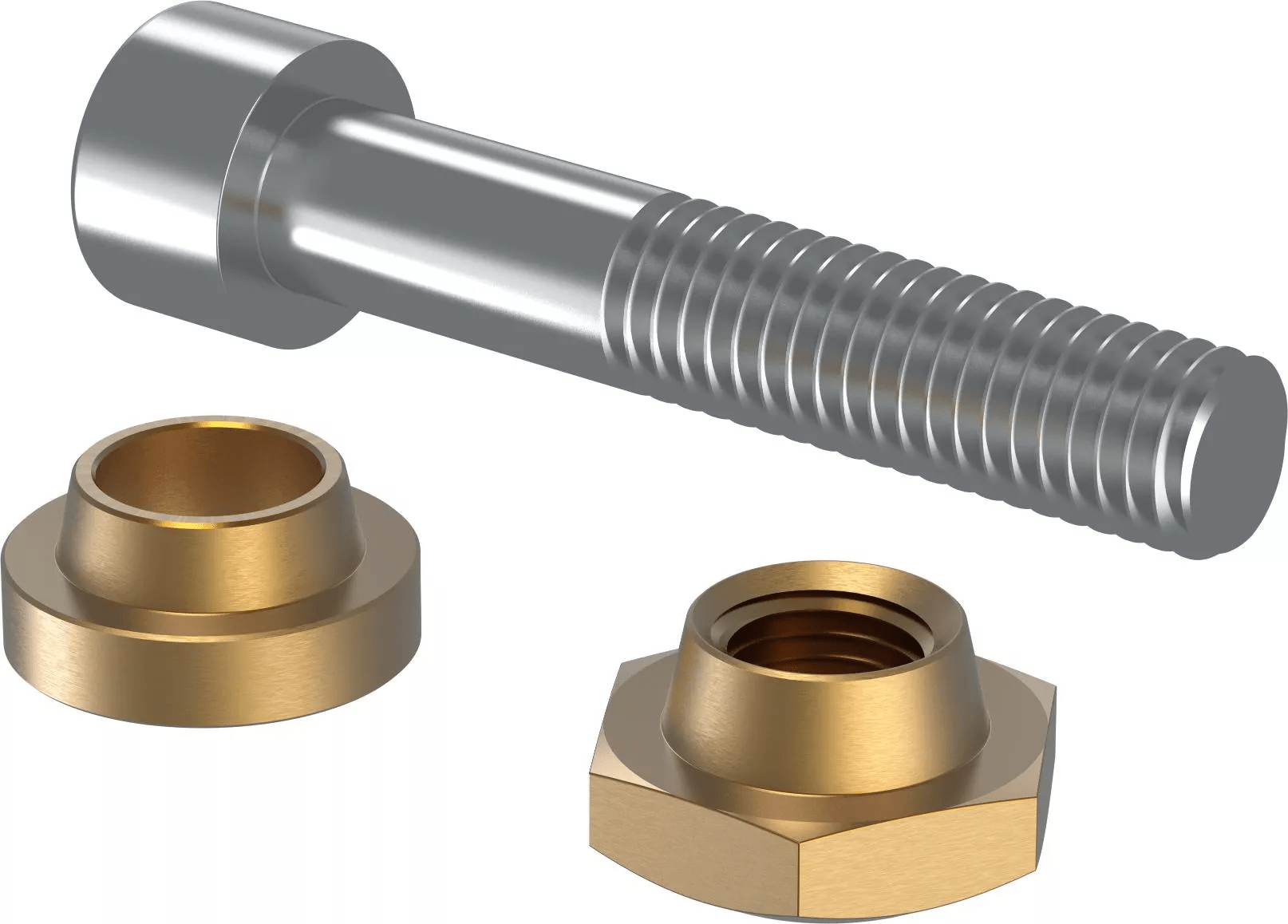

Rendered
90 B
90 B
90 B
90 B
90 B
90 B
94 B
94 B
94 B
94 B
94 B
94 B
118 B
118 B
Download document112 B
112 B
Download document100 B
100 B
Download document98 B
102 B
102 B
Download document99 B
