Referanser3000 mm broerstatter,
3000 mm broerstatter,
Prestfoss,
Norway
Broerstatter av 3000 mm Weholite i Prestfoss
Vi leverte en broerstatter med rør og bekkeinntak til Haukåa bru i Prestfoss.
Location
Prestfoss, Norway
Ferdigstilt
2021
Bygningstype
Kommunalt område
Product systems
Renovering
Broerstatter av Weholite 3000mm SN4, med 28,5 m totallengde. Innløpsside med bekkeinntak og utløpsside med skråskjært rør.
Entreprenør: NCC
Oppdragsgiver: Viken fylkeskommune
Oppdragsgiver: Viken fylkeskommune
Ny kulvert dimensjonert for 200-årsregn

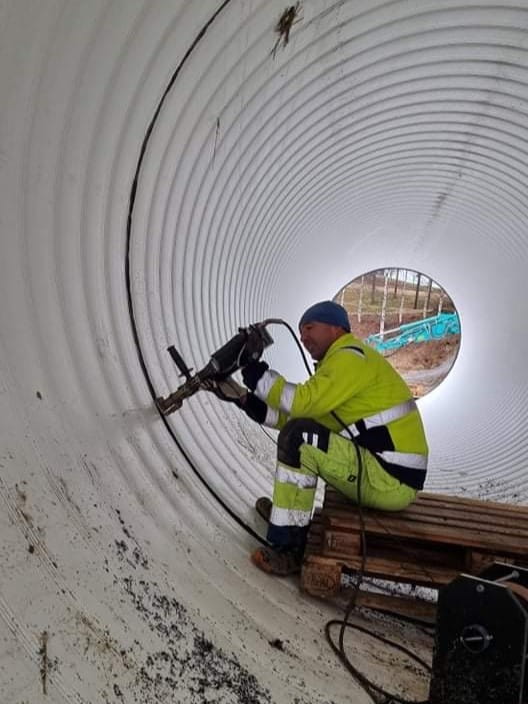

Da Haukåa bru på fylkesvei 132 i Prestfoss skulle erstattes, falt valget på en vegkulvert fra oss. Broerstatteren ble produsert i 3000 mm Weholite med total lengde på 28,5 m. Det var totalt to skjøter, med utvendig FlexSeal fra Trelleborg og sveising innvendig.Raskere gjenåpning av veien

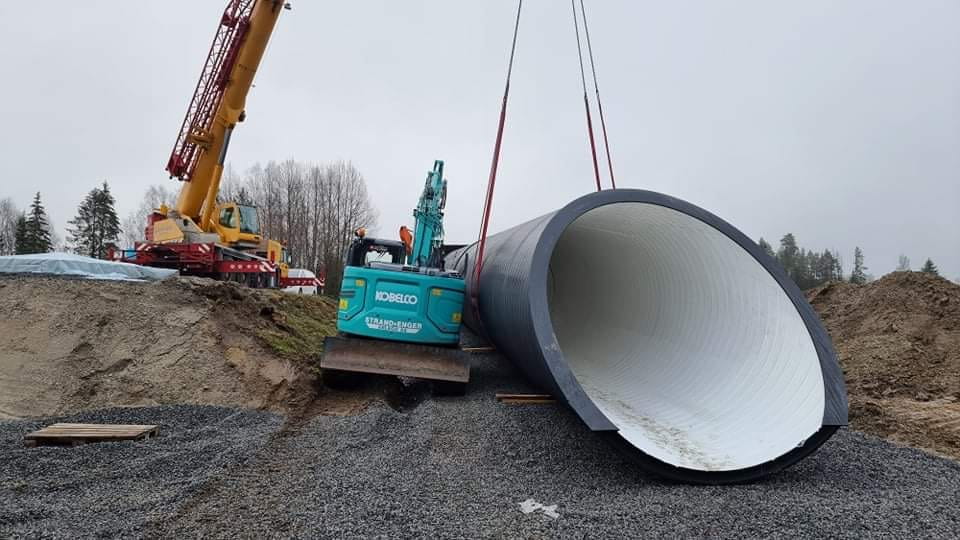

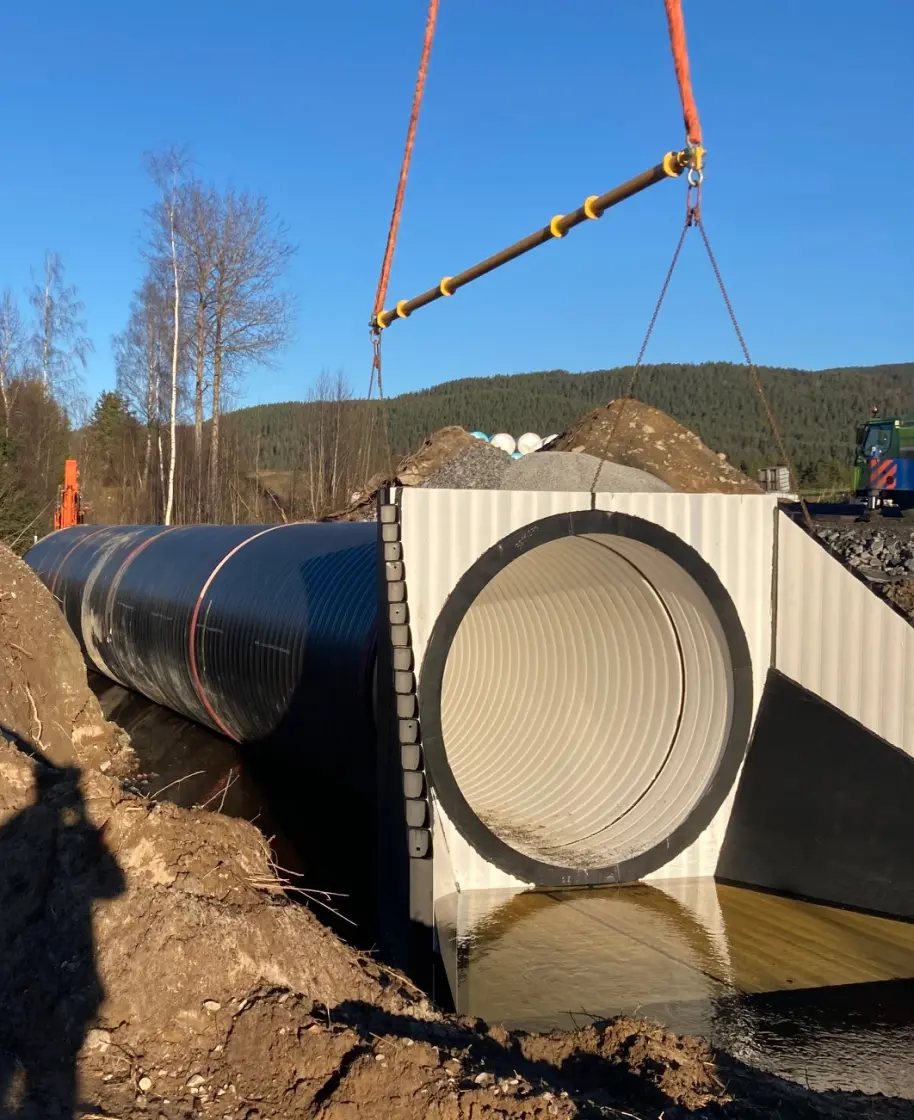

To rør og bekkeinntak ble montert sammen på bakken ved siden av eksisterende bekk. Broerstatteren ble så løftet på plass ved bruk av mobilkran. Deretter kunne man begynne å kompaktere rundt.
Med denne løsningen fikk man en raskere åpning av veien, sammenlignet med å bygge en ny bro.
Løsninger i Weholite gir mange fordeler
Weholite-rør i PE er kjent for sin kombinasjon av styrke og fleksibilitet. Materialet tåler ytre påvirkninger svært godt, noe som gjør det til et ideelt valg for vegkulverter. Med Weholite får man løsninger med en designlevetid på minst 100 år.
Videre gir Weholite fordeler når det gjelder bærekraft, da kulverten kan resirkuleres etter endt levetid.
Broerstatter for Haukåa bru i Prestfoss
