Item details
Dimensions
| Item Unit Length | 74 |
|---|---|
| Item Unit Width | 55 |
| Item_UOM | pce |
| Item Unit Height | 55 |
| Item Unit Weight | 0,358 |

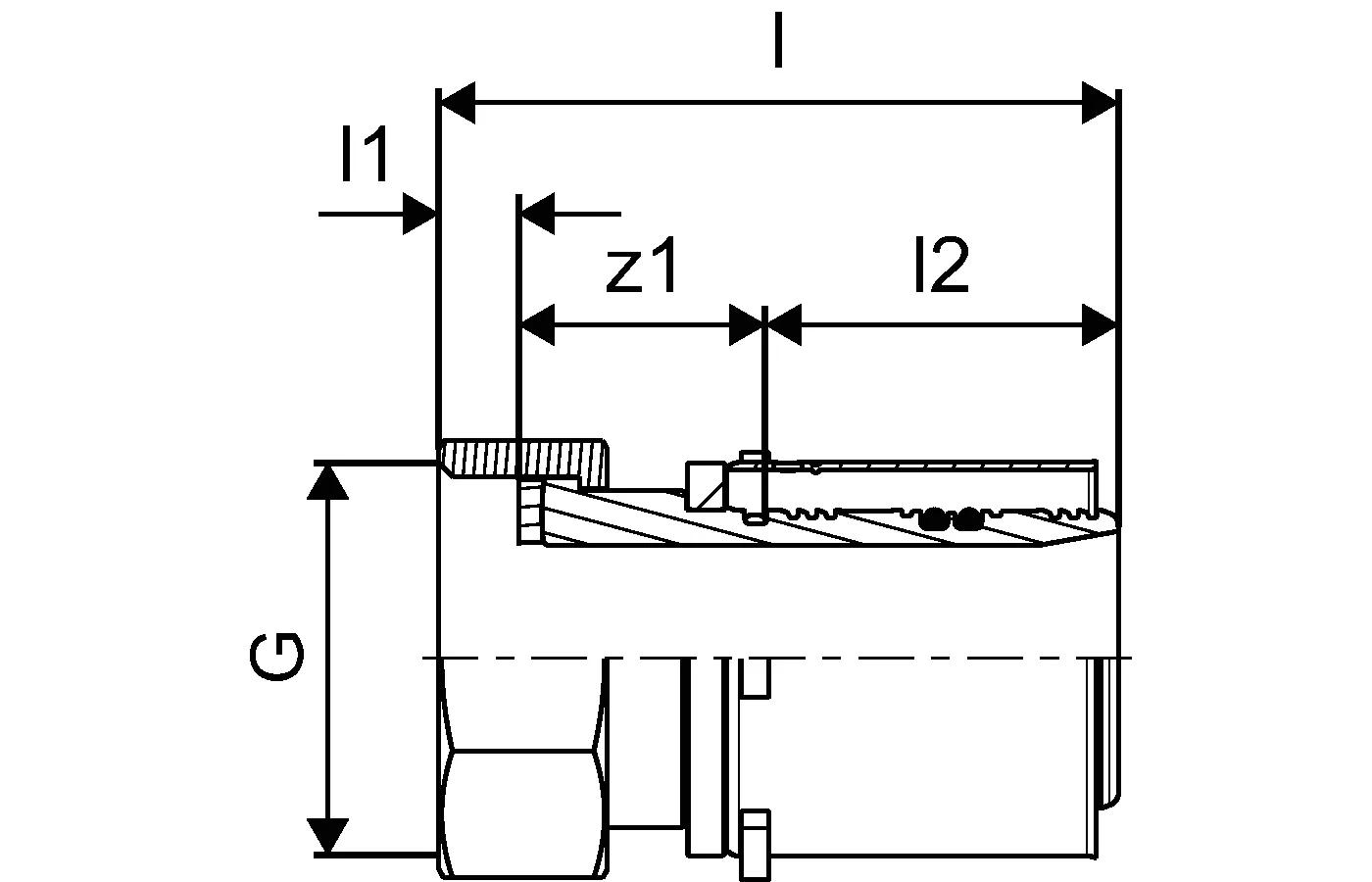

Measurements
| Cylindric_thread_G | 1,5 |
|---|---|
| Length (l2) | 37,9 |
| z1 | 29,8 |
| Length (l1) | 9,5 |
| LENGTH_L | 77,2 |
Packaging
| Packaging Quantity PL4 | 960 |
|---|---|
| Packaging GTIN PL4 | 06414905401741 |
| Packaging Height PL1 | 89 |
| Packaging Length PL1 | 176 |
| Packaging Type PL1 | Base_Box |
| Packaging Volume PL1 | 0,00211464 |
| Packaging Weight PL1 | 1,829 |
| Packaging Width PL1 | 135 |
| Packaging Quantity PL1 | 5 |
| Packaging GTIN PL1 | 06414905401734 |
| Packaging Height PL4 | 570 |
| Packaging Length PL4 | 1120 |
| Packaging Type PL4 | Pallet |
| Packaging Volume PL4 | 0,4775232 |
| Packaging Weight PL4 | 361,19 |
| Packaging Width PL4 | 748 |
Product code
| Item no VVS | 045483042 |
|---|---|
| Item no EAN | 4021598114333 |
| Item no GTIN | 04021598114333 |
| Item no GF | 35001046937 |
Status
| MTO (longer delivery times) | Item available on request, minimum lead time 2 weeks |
|---|
