Drinking water delivery

PE-X Pipes & Plumbing Fittings

Quick & Easy Shrink Fit Pipe

Uponor PE-X pipe – The world’s first, best and most widely used pipe

Ideal for both commercial and domestic plumbing installations, Uponor’s PE-X Quick & Easy system can be used for the hygienic delivery of drinking water, heating systems and chilled water systems. It has been tested to many national and international standards and holds full UK WRAS certification.

There are currently three different methods for manufacturing PE-X, known in the industry as PE-Xa, PE-Xb and PE-Xc:

PE-Xa (Peroxide)- 70% (Uponor PE-Xa up to 85%) crosslinking

PE-Xb (Silane)- 65% crosslinking

PE-Xc (Electron Beam)- 60% crosslinking

What really separates Uponor PE-Xa pipe from the competition is its high degree of crosslinking. This ensures greater flexibility in tight installation spots and better resistance to stress than either PE-Xb or PE-Xc pipe materials.

Application areas:

Tap water connections
Radiator connections
Ideal for new builds and renovations

Specification:

Dimensions:

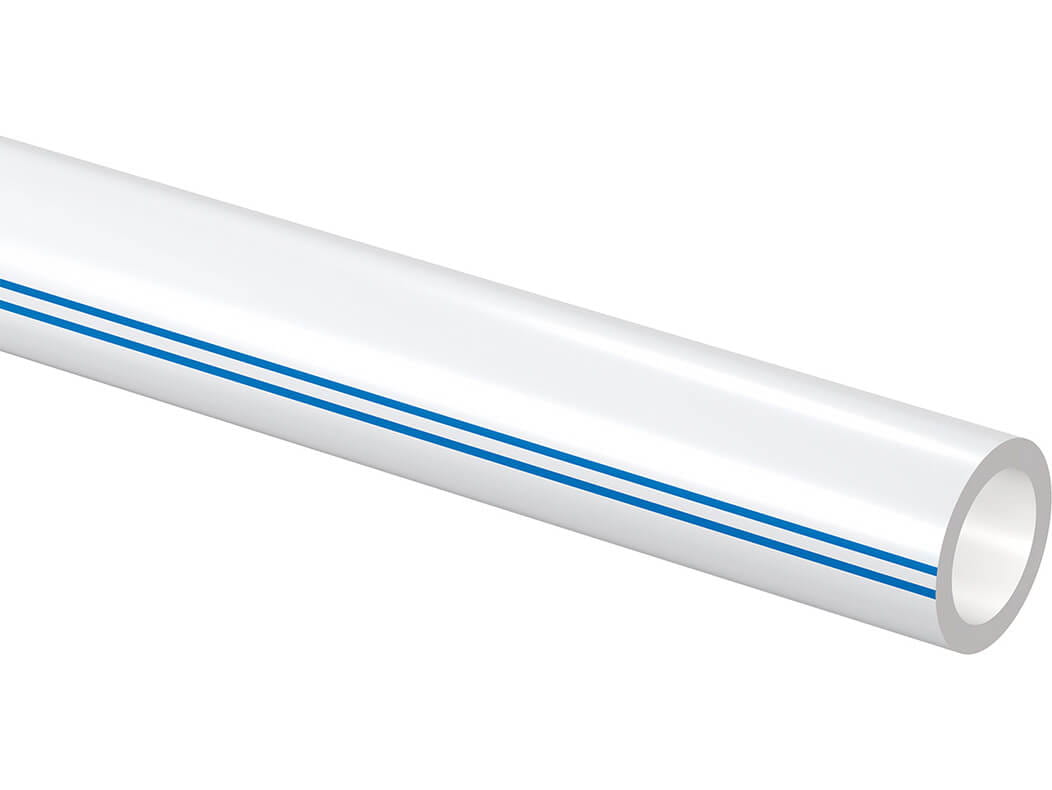

Uponor PE-Xa Combi pipe- 12-63mm

Uponor PE-Xa Combi Pipe Specification

Uponor Aqua pipe

Uponor Radi pipe

Uponor Combi Pipe

Usage for drinking water

✔

Usage for radiator connection/fancoils

✔

Usage for radiant heating and cooling

✔

Available in coils

✔

Available in straight bars

✔

Pressure rating PN 6

✔

Pressure rating PN 10

✔

Max. permanent operating temperature

70 °C

70°C

Max. operating pressure

10 bar

Tap water: 10 bar Heating: 6 bar

Dimensions in mm

15 - 110

16 - 110

13 - 63

Insulated pipes in dimension (in mm)

16, 20, 25

Pipe in pipe as 16, 20, 25

Features and benefits of Uponor PE-Xa Combi Pipe

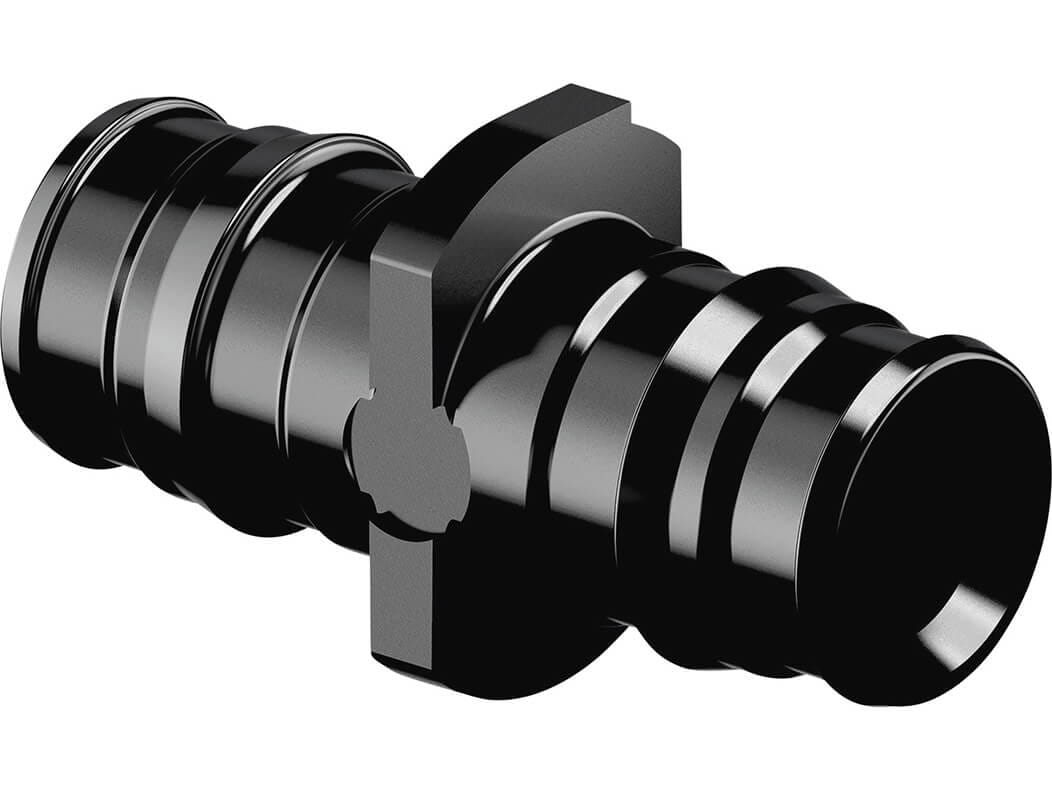

Quick & Easy Shrink-Fit jointing technology for PE-Xa pipes

The Uponor Q&E fitting is a jointing concept that relies on the unique elastic features of Uponor PEX-pipe to create a joint that is stronger than the pipe itself.
The unique shape memory of Uponor PEX-piping forms a tight seal around the fitting creating a strong reliable connection within seconds.

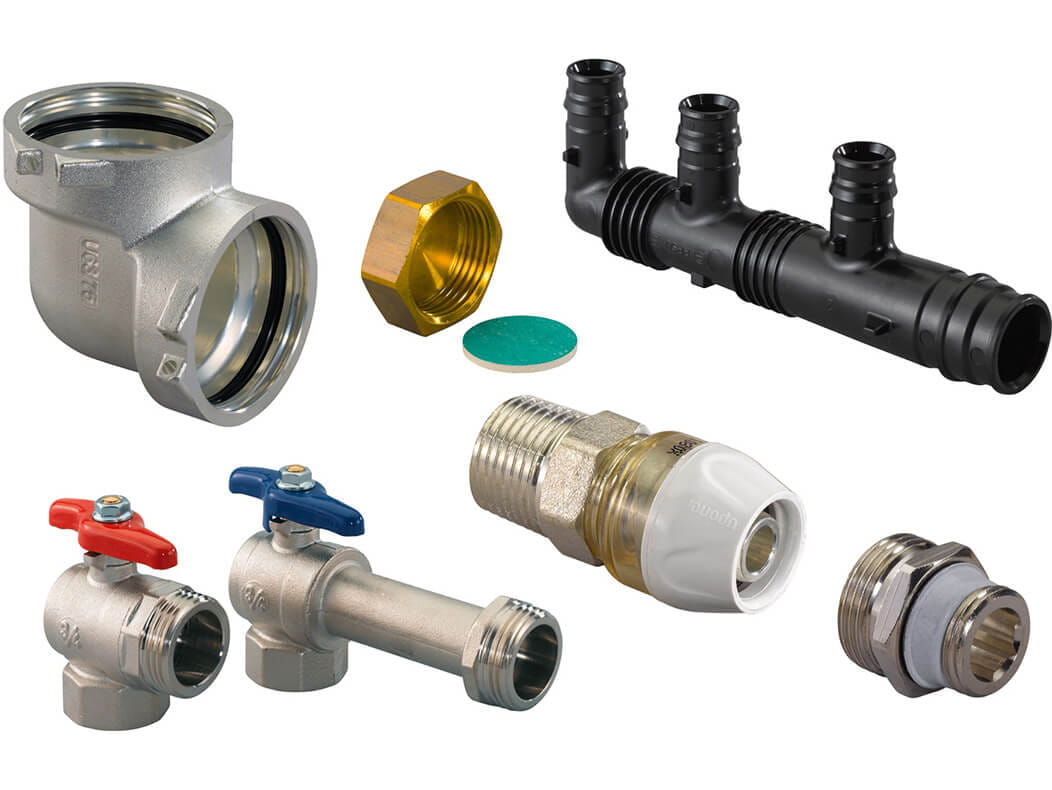

Available in a range of high performance PPSU and threaded brass fittings for pipe dimensions up to 63 mm

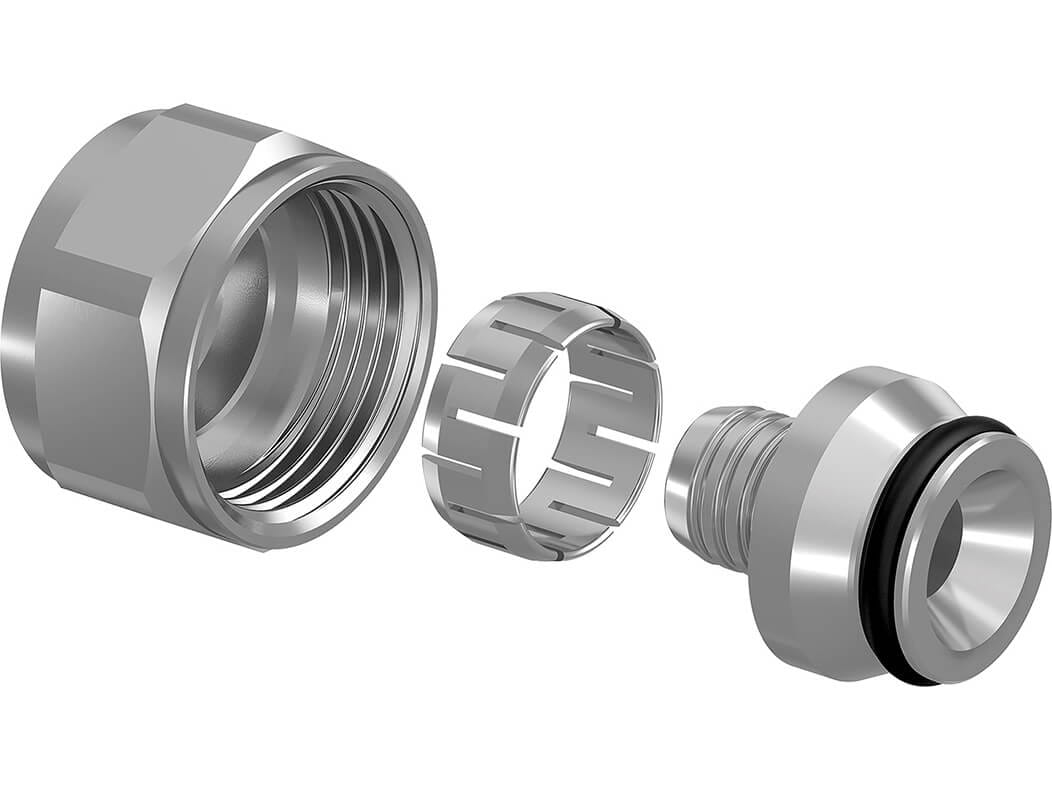

Quick & Easy pipe may also be used with Uponor’s range of compression fittings
Low pressure loss
Corrosion resistant
Extremely reliable connection
Easy to connect Q&E to copper, steel and other plastic based systems
