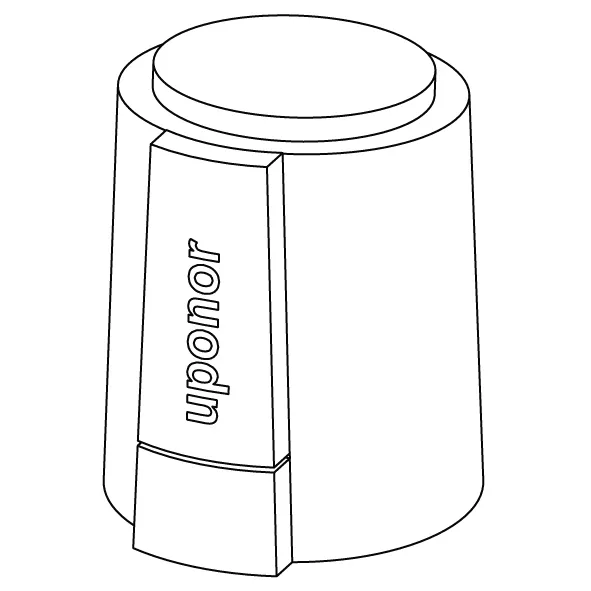

Uponor Vario PLUS actuator PRO 24V 1W NC

- interface between existing third-party manifolds and Uponor
- open/closed indicator
- first open function
- Autobalancing functionality for new and retrofit installations
- temperature range: 0°C … +60°C

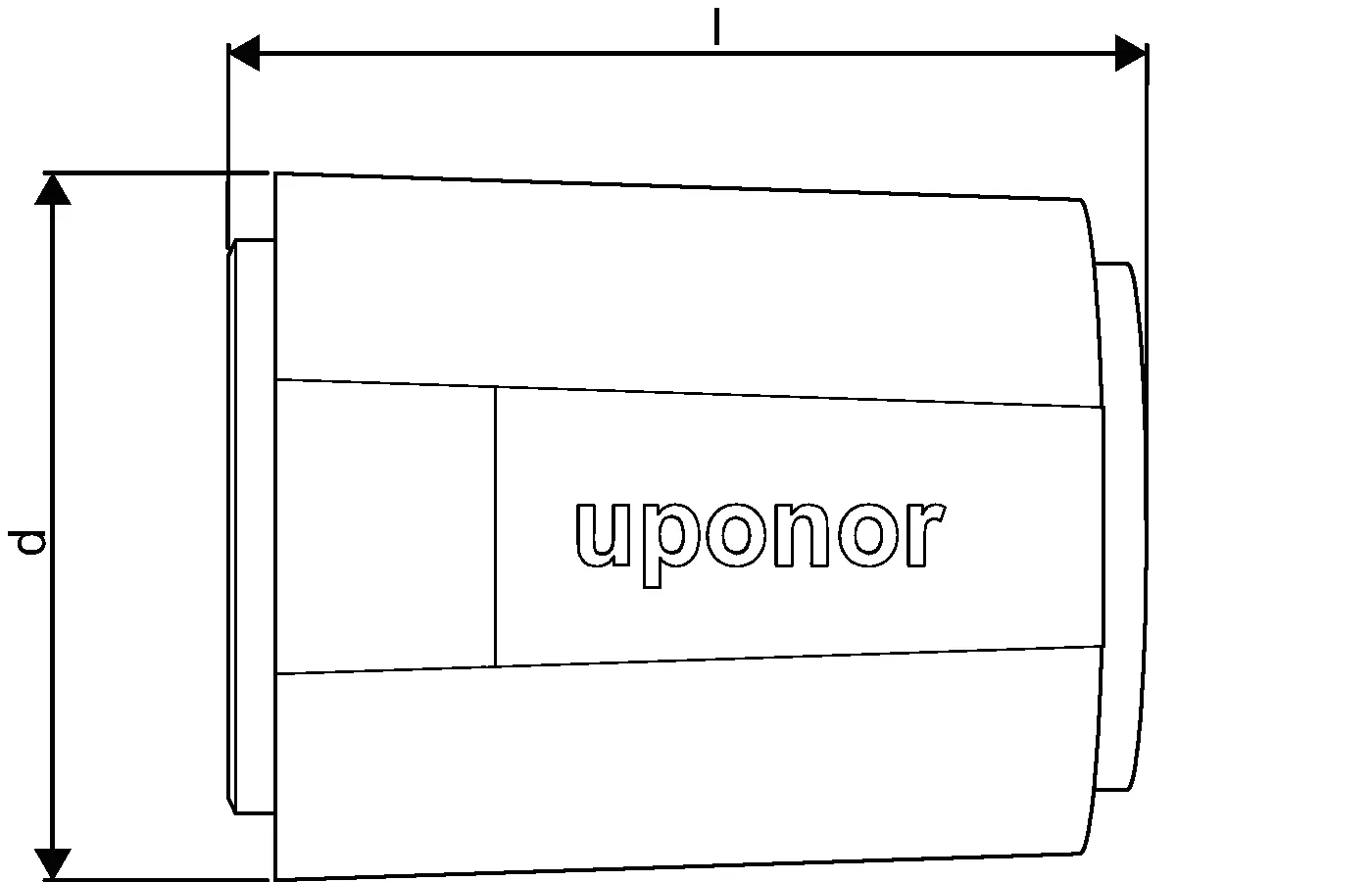

- height: 58mm + adaptor ring
- stroke length: 5mm
- connection cable: 2x 0.75mm²x1m
- diameter: 44.3mm
- conformity: EAC
- protection class: IP54
- color: blue

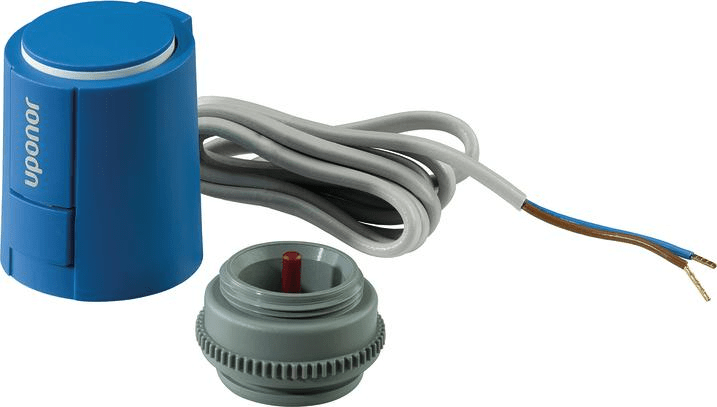

Consisting of:
- Vario PLUS actuator
- bayonet manifold valve adaptor ring M30x1.5mm
- mounting instructions

Item details

1090262

Uponor Vario PLUS actuator PRO 24V 1W NC VA02 MT 30x1,5

Until stocks last

Documents

EU declaration of conformity

EU declaration of conformity

637 B1094368

Uponor DoC VARIO 1087763 INT (1094368)

Application information

Specification

- Modular fibre glass reinforced polyamide manifold with 1,3,4,6 loops for connection with basic kit
- connection right or left with flat sealing or connection from below with optional elbowset
- supply with lockshield (LS) valve for balancing with adjusting ring or supply with Flowmeter (FM) for balancing
- shut-off and flow view
- adjusting ring for balancing without tools
- prepared places for room name labels
- return with valves and caps, prepared for actuators
- loop connection G3/4" eurocone
- loop pitch 50 mm
- header pitch 225 mm

Actuator:
- NC (normally closed) = closes without power
