Vario underfloor heating manifolds

For all radiant heating and cooling applications

Vario underfloor heating manifolds cover all radiant heating and cooling applications

Uponor Vario manifolds are high quality manifolds made from different materials to cover all applications for radiant heating and cooling. Synchronised components connections allow easy connection to all Uponor pipe dimensions.

Overview of Uponor stainless steel manifolds

Vario S FM

Vario S body FM

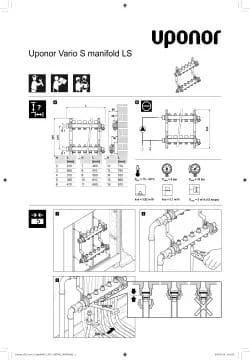

Vario S LS

Vario S DFC

Material

Stainless steel

Construction

Segment

Circuits

2-16

2 - 16

2-16

2-12

Secondary connection G3/4 eurocone

Primary connection swivel G1

option

With integrated flow meters

With integrated lock screws

Fill & drain valves

option

Stainless steel manifolds

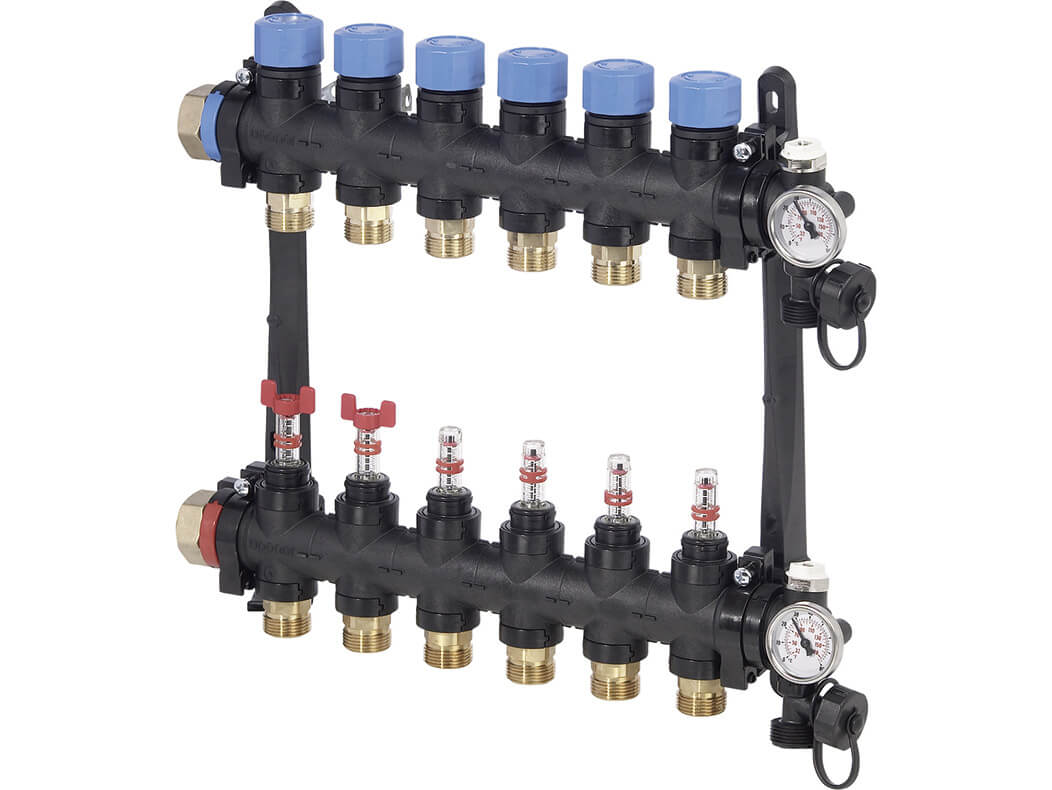

Glass fibre reinforced polyamide manifolds

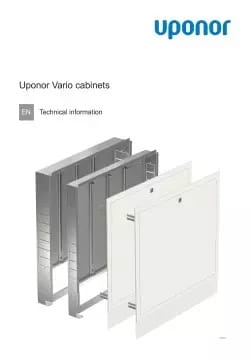

All details about Uponor Vario manifolds, cabinets and actuators

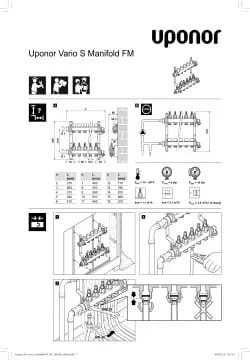

Vario S FM manifolds - stainless steel manifold for easy and cost-efficient installation

Benefits

One-piece distributor with 2-16 heating circuits

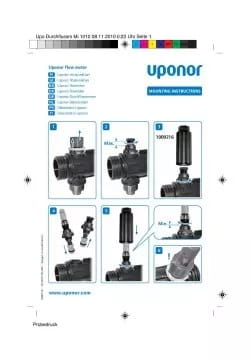

0 – 5 l/min flow meters,
G1 primary connection
Loop connection G3/4" eurocone

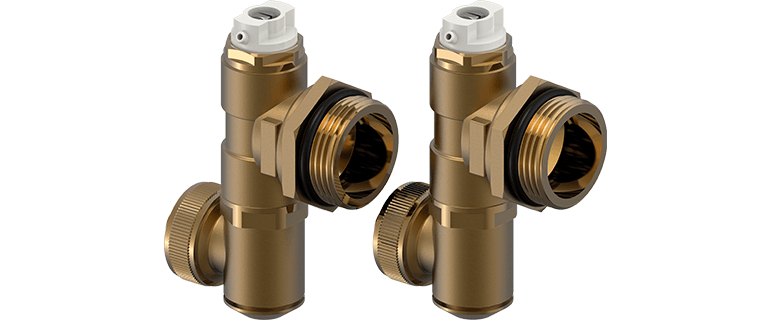

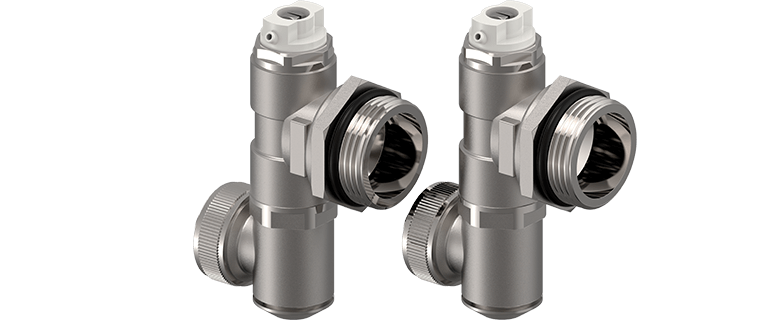

Drain valve/air vent as standard
Loop pitch 50 mm
Header pitch 225 mm

Application area:

Radiant heating and cooling
Suitable for large heating/cooling areas
Residential and commercial

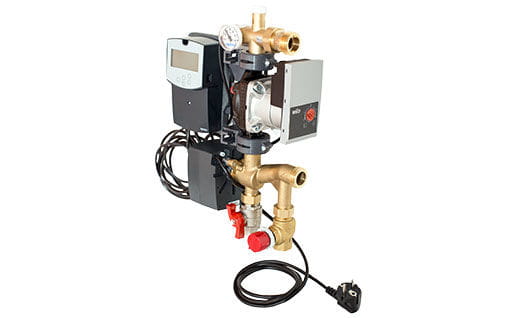

Compact installation combined with pump groups, differential pressure regulator and metering sets connection set in Uponor distribution cabinets

Product catalogue

Reliable actuators for autobalancing technology

New Uponor Vario actuators are tested with the Uponor Smatrix system and support the autobalancing function. While working together, Uponor Smatrix system and the new actuators provide exactly the requested temperature by reducing the energy consumption up to 12 %.
A unique design combined with a carefully designed heart offer full control and certainty of cooperation with Uponor manifolds.

Vario actuators (24V/230V)	Vario S (all versions)	Vario M
Vario Plus actuators (24V/230V)	Vario Plus FM/LS	Magna
Retrofit actuators (24V/230V)	Vario B WGF	selected third party manifolds
Vario adapter set (spare parts)	Vario S FM Vario S body FM Vario S LS Vario S DFC Vario M	Vario Plus FM Vario Plus LS Magna
