Application area:
For control of underfloor heating systems in small zones
Max. 90° primary
Max. pressure: 6 bar at 60°C
Specification:
Integrated pump: Q: 0,1 - 0,4 m³/h, H: 0,2 - 1,1 m, Phyd< 1W
Bracket for left- or right installation
Air bleed screw
Secondary circuit temp. range 20-50°C
Balancing valve
Secondary loop 3/4" eurocone
Primary valves with clamp connection for CU-Pipe 15mm

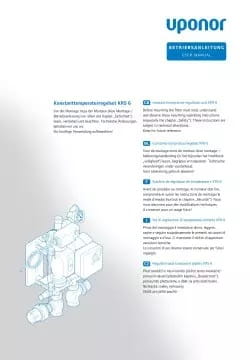

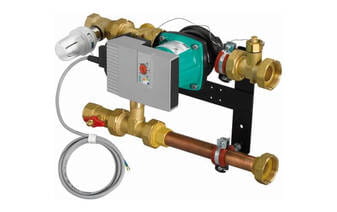

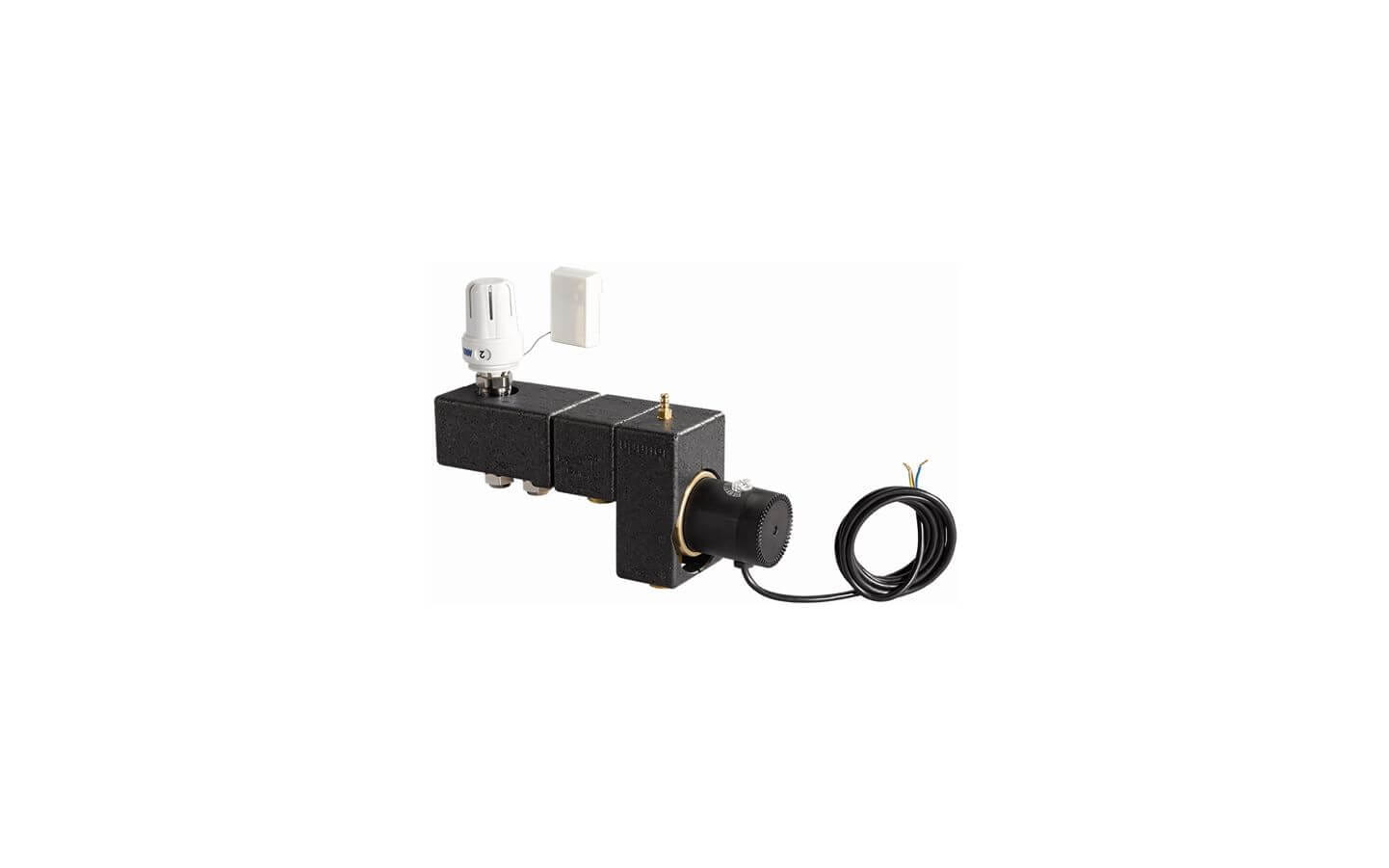

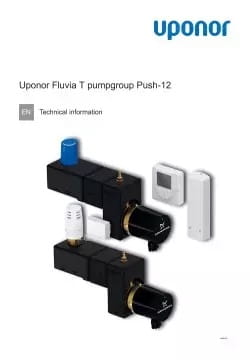

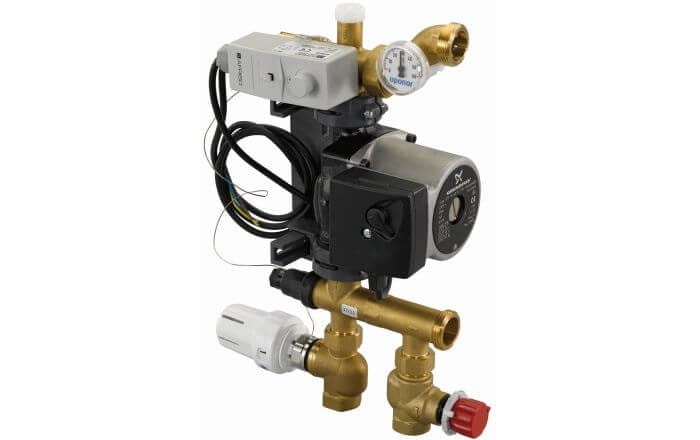

Select Uponor Fluvia T and get details in the product catalogue TPG 30 Fluvia T With thermostat for constant supply water temperature control Uponor Fluvia T Push 12 Pump group for single rooms or small areas up to 40 m2 KRS 6 Fluvia T Pump group for constant supply water control including temperature limit switch Installation on manifold
Application area:
For weather compensated supply water temperature control
Max. temperature 90°C primary
Max. secondary pressure: 6 bar at 60°C
Specification:

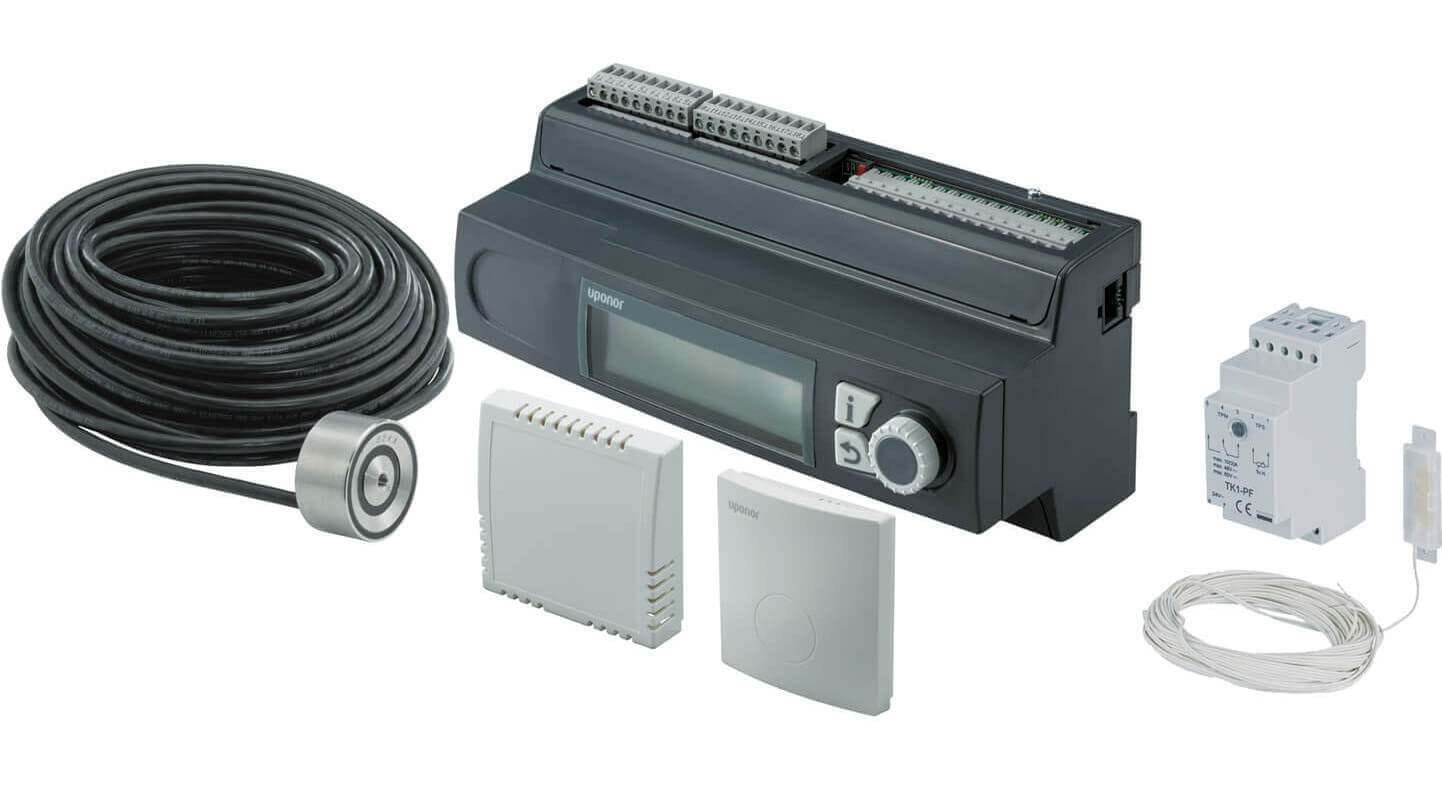

Pump group pre-mounted with supply temperature controller Uponor Smatrix Move
Outdoor temperature sensor (for installation on building site)
Water temperature sensor for supply temperature
3-way-mixing valve
Motor drive
Proportional pressure control
Upgrade to heating/cooling possible with Uponor Smatrix Thermostat T-168 and Uponor Smatrix Antenna
Select Uponor Fluvia /Fluvia Move PLUS and get details in the product catalogue

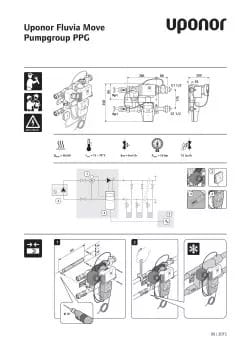

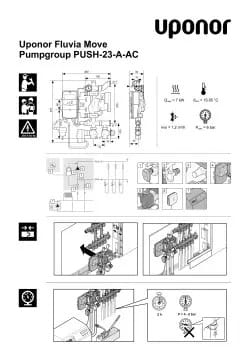

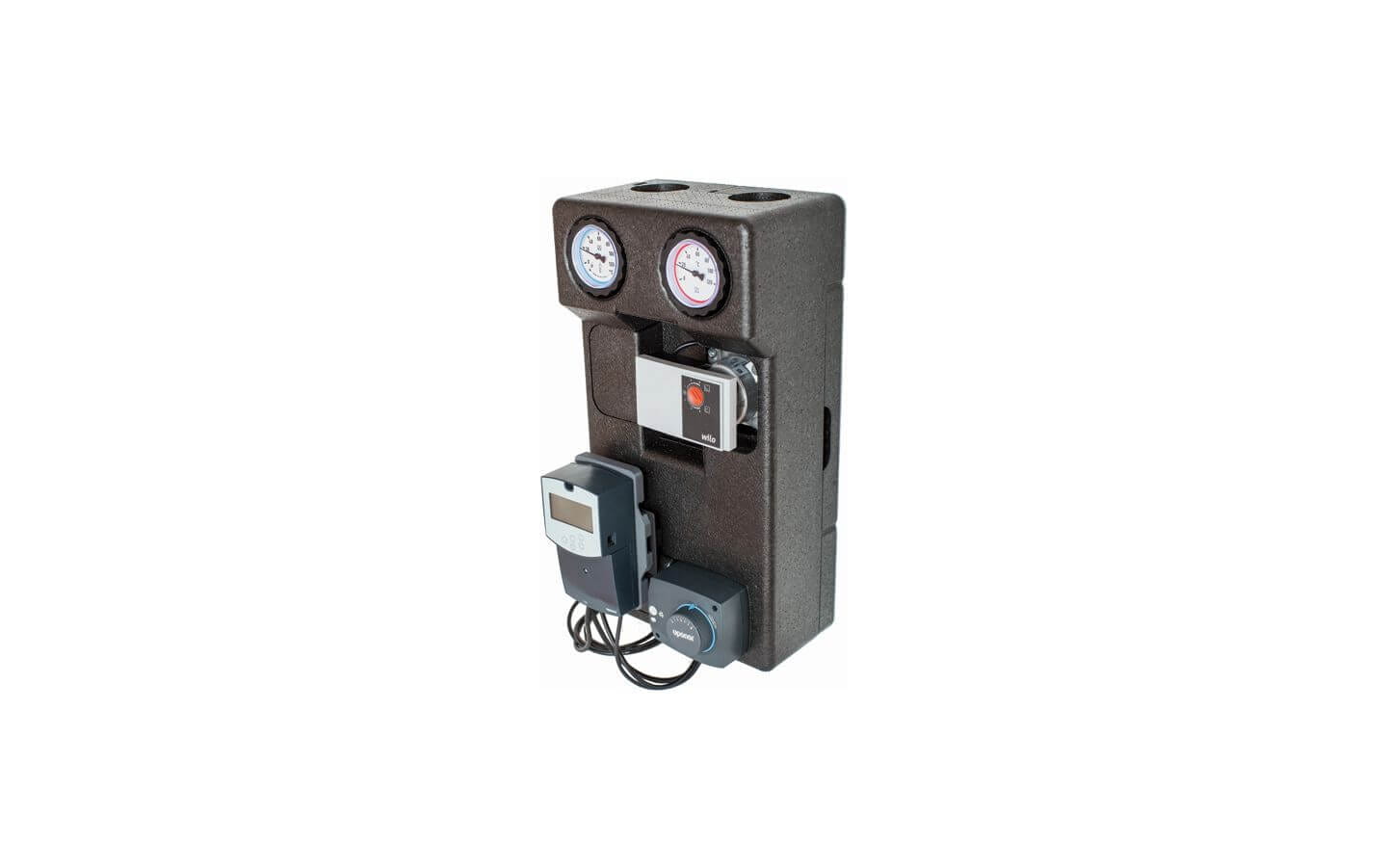

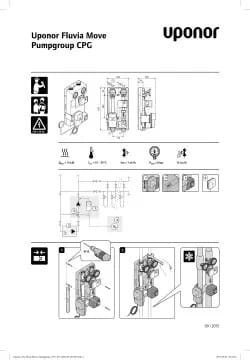

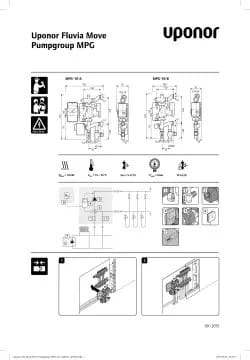

CPG 15 Fluvia Move Pump group with outdoor compensated flow temperature specially designed for cooling installations Installation e.g. in boiler room Push 23 Fluvia Move Pump group for limited maximum flow temperature Installation on manifold PPG 30 Fluvia Move Pump group for limited maximum flow temperature Equipped with Uponor Smatrix Move control unit for supply water control EGP 6 Fluvia Move Pump group with heat exchanger for free cooling Equipped with Uponor Smatrix Move control unit for supply water control incl. outdoor sensor included MPG 10 Fluvia Move Pump group with outdoor compensated flow temperature Installation on manifold
