    Feng Shui home

    Feng Shui home

    An eco-friendly constructor and a bio-architect teamed up with Uponor Italy to create a balanced combination of new and old, for the perfect indoor climate.

    Datos clave del proyecto en PDF

    Location
    Isola Vicentina, Italy
    Finalización
    2009
    Tipo de edificio
    Vivienda unifamiliar
    Product systems
    Climatización Invisible
    Tipo de proyecto
    Reforma

    An eco-friendly constructor and a bio-architect teamed up with Uponor Italy to create a balanced combination of new and old, East and West for the perfect indoor climate.

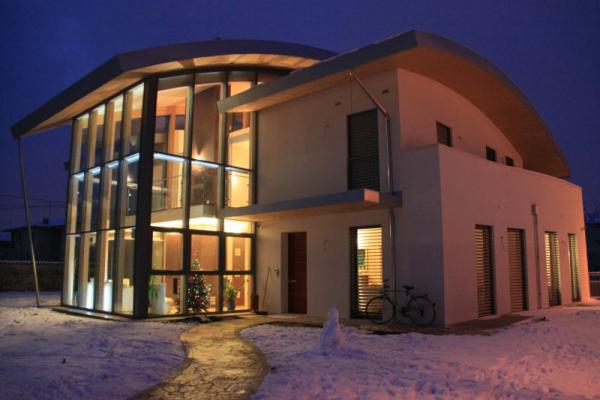

    Uponor Italy accepted the challenge for the project of a sustainable house in Isola Vicentina, Italy. Built with natural materials such as wood and cork, the house was planned to comply with state of the art bio-architecture parameters, with an eye for energy saving and aiming to create the best comfort for the family that would live in it. Uponor Italy came up with a special solution for the integrated heating and cooling system of this project.

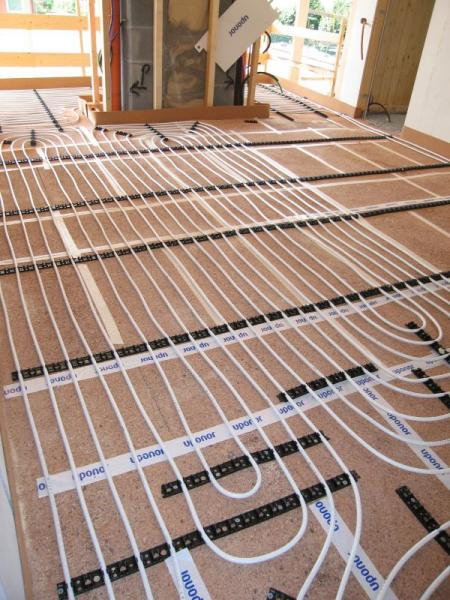

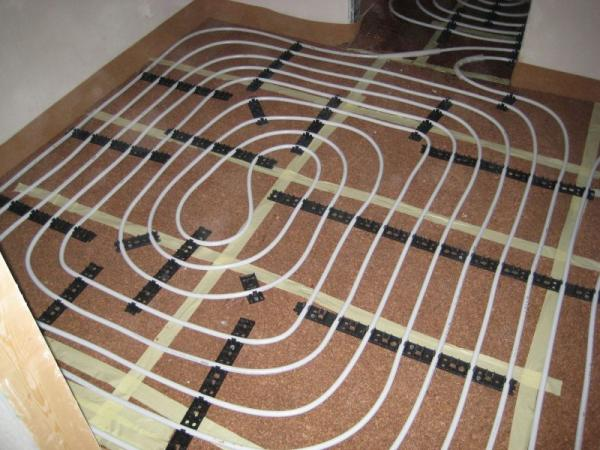

    The project for this new house was definitely challenging especially since architect Giuseppe Maria Padoan planned the house following Feng Shui principles, an Asian philosophy based on the combination of natural elements and energy flows. Uponor was called in for the part of the project concerning indoor climate, and the technical team came up with a solution created specifically for this demanding project which included cork panels, that where biologically pure. The MLCP pipes were installed on tracks laid on the panels.


    The project in brief:


    Name: bio-architecture project in Isola Vicentina, Italy


    Description: integrated heating & cooling underfloor system


    Date of installation: July 2009


    Type of building: new single house


    Constructor: bioHABITAT – Folgaria, Italy www.biohabitat.it


     Architect: Giuseppa Maria Padoan www.casarmonia.com


    Installer: Esteban Lucca – Valdastico, Italy


    Uponor Sales Rep: Emmegi – Padova, Italy


    Wholesaler: La Termica di Miazzon – Schio, Italy


    Uponor solutions: Uponor underfloor panels (tracks + insulating cork panel) - 309.84 m2;  16x2 mm MLCP pipes – 2,856.85 m.


    Feng Shui home

    0001790
    0001728
    0001729
    0001730
    0001731
    0001732
    0001733
