Build on S-Press PLUS

The new Uponor press fitting generation

Build on S-Press PLUS - new press fittings for composite pipes

Installers around the world build on Uponor. After 25 years of real life experience and more than 500 million fittings installed, Uponor has now reinvented the press fitting system for composite pipes. S-Press PLUS is the perfect solution for ensuring permanently tight pipe connections. It’s 100% backward compatible with current Uponor multilayer pipes and tools. Available in dimensions from 16 to 32 mm in both metal and plastic. S-Press PLUS is the fitting that knows no compromise.

The application areas:

Tap water intallation

heating cooling

Radiant heating and cooling

plumbing installation

Radiantor connection

Assortment overview:

Availability of diameters: da x s [mm]

16 x 2 - 20 x 2.25 - 25 x 2.5 - 32 x 3

Start with Augmented Reality experience

Get to know S-Press PLUS in the new 3D dimension

Follow the steps below and get a glimpse into the future:

1. Scan the QR code with your smartphone or tablet

s press plus augmented reality

2. Click on "Start" or AR symbol (on the right hand side of the product image)

Ecoflex VIP Augmented reality

3. Place the product on any surface, zoom in and out, move it around

Start with smartphone or tablet

S-Press PLUS fittings at a glance

>> S-Press PLUS support from Uponor PRO App
>> Planning and installation
>> Product Portfolio
>> Services and documentation

Look up more in the brochure

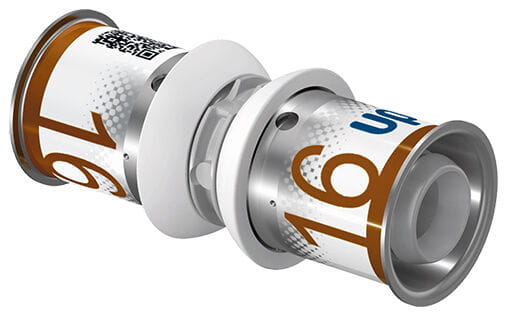

Features for metal and composite S-Press PLUS fittings

Withstanding harshest conditions

Resistant to mechanical stress - e.g.outperform tensile test
Resistant to any kind of drinking water - best Uponor quality for drinking water consumptions
Resistant to chemical components in the concrete - all raw materials used are resistant to corrosion that might occur when the fitting is in contact with surrounding building material
Uponor S-Press PLUS fittings passed dezincification resistance test with highly aggressive drinking water - tested by independent German test institute

TOUGH
SAFE
EASY
SMART

Planning and installation support

Planning support for specifiers

Decreased pressure loss by up to 60 %.

Tap water:
The permanent operating temperature ranges from 0°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time.

Heating:
The permanent operating temperature ranges up to 80°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 100°C for a period
of 100 hours in the operating life time.

Get to know more details

Planning
Installation

On-site support with the Uponor PRO App

Project services

Create and save own projects
Create certificate for pressure test
Send certificate to building owner
Get answers on all questions

Product ordering

Select products from catalogue
Save pdf file
Send to dealer and order online

Download Uponor PRO App with your mobile device

Services and brochures to find out more about S-Press PLUS fittings

Planning support

Get full support for the planning of your project with the HSE Software. S-Press PLUS fittings are included already.

Installation support

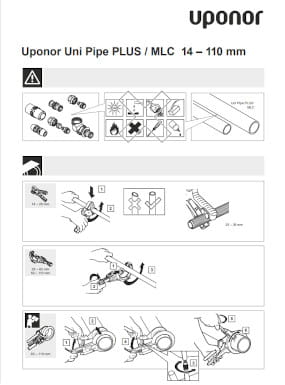

All technical details are summarized in the technical data sheet.

Extensive product portfolio for multilayer pipe fittings

Wide selection of different fittings: S-Press tee, S-Press reducer, S-Press adapters with male and female thread, compression fittings, whatever is needed for your plumbing project

Product online catalogue S-Press PLUS section
