Drinking water delivery

Multilayer pipe system

uponor.mediafile.title.0be63864-a25d-4ead-9482-42c54aa44236

Drinking water installation with Uni Pipe PLUS

With our innovative SACP (seamless aluminium composite pipe) technology, we have created a completely new product group for tap water solutions; the world's first composite pipe with a seamlessly extruded aluminium layer - called Uni Pipe PLUS.

Uni Pipe PLUS does not have a weld joint. This drinking water multilayer pipe (Uponor MLCP) will support your construction project with fast and efficient installations. The Uponor multilayer pipe system has always the right pipe and fittings solution.

Enhanced performance and safety

Uni Pipe PLUS as straight lengths and coils
More flexible and bendable than current multilayer pipes
Saves time during installation
Less installation components reduce costs
Uni pipe PLUS straight lengths feature a special aluminium layer that is more rigid than conventional multilayer composite pipes
Provides a visually attractive, on-wall mounting solution

Uponor S-Press PLUS sliding coupling 16 - 40 mm

Get more details

Application areas:

Tap water installation

Radiator connection

Specification:

Multilayer Pipes

Uni Pipe PLUS 16 - 32 mm
MLC 40 - 110 mm

Fittings:

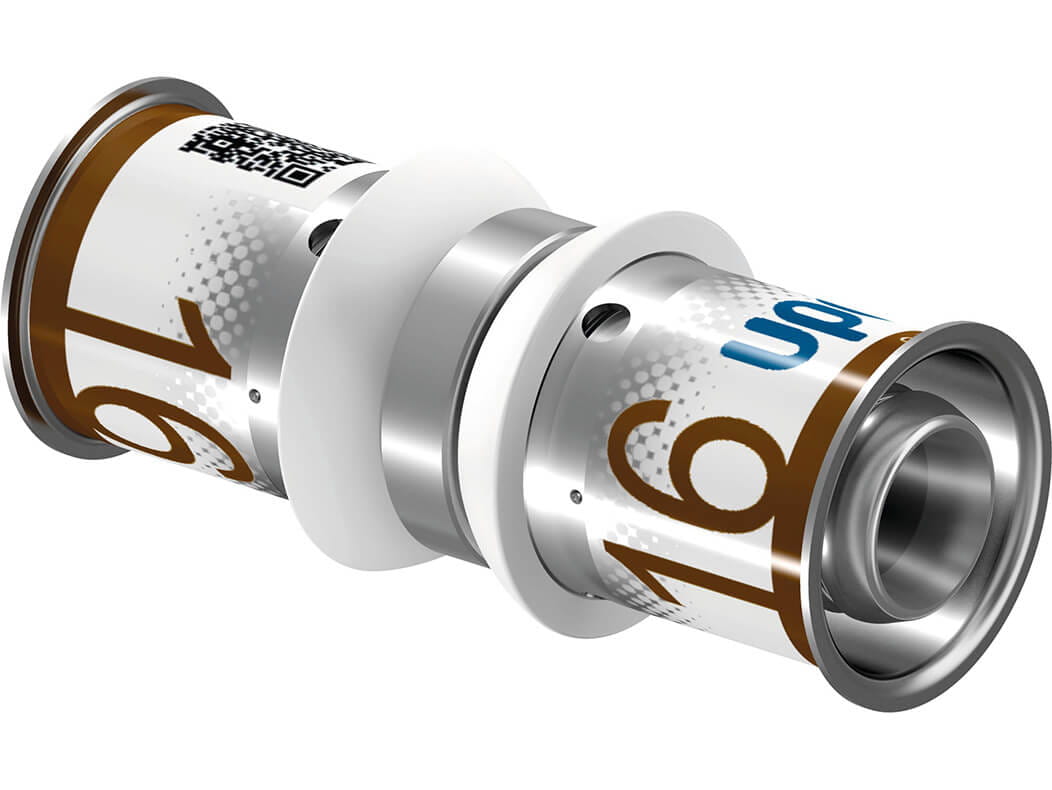

S-Press PLUS 16 - 32 mm

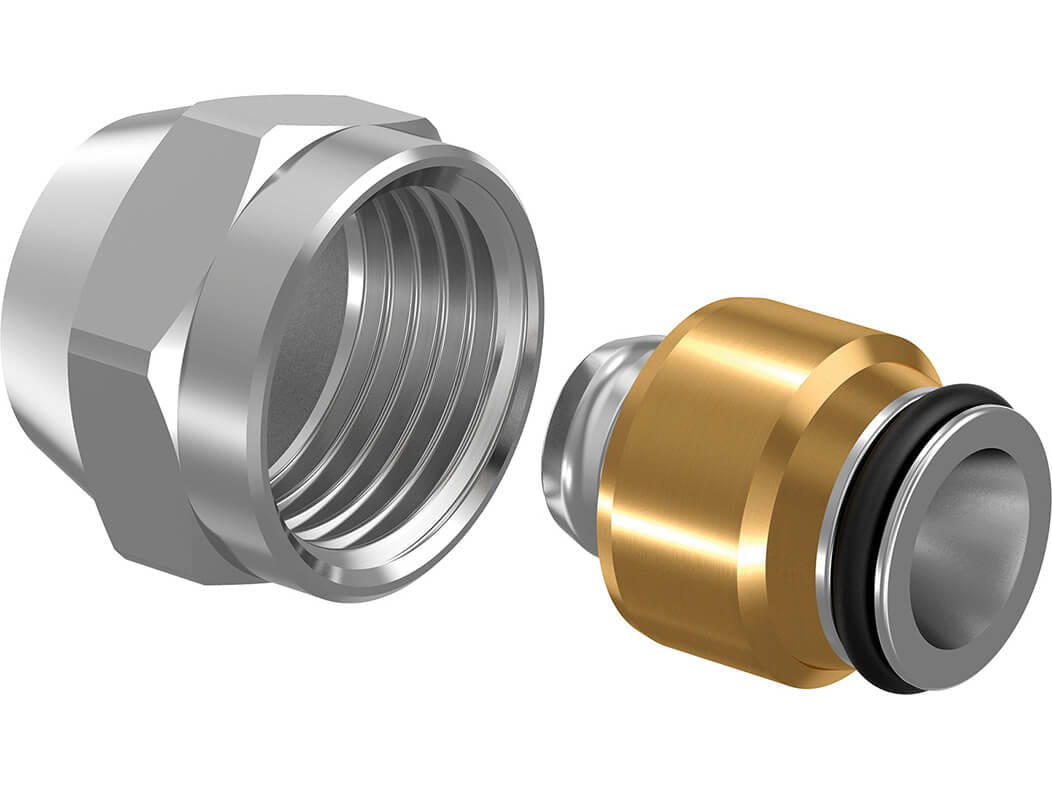

RTM 16 - 32 mm

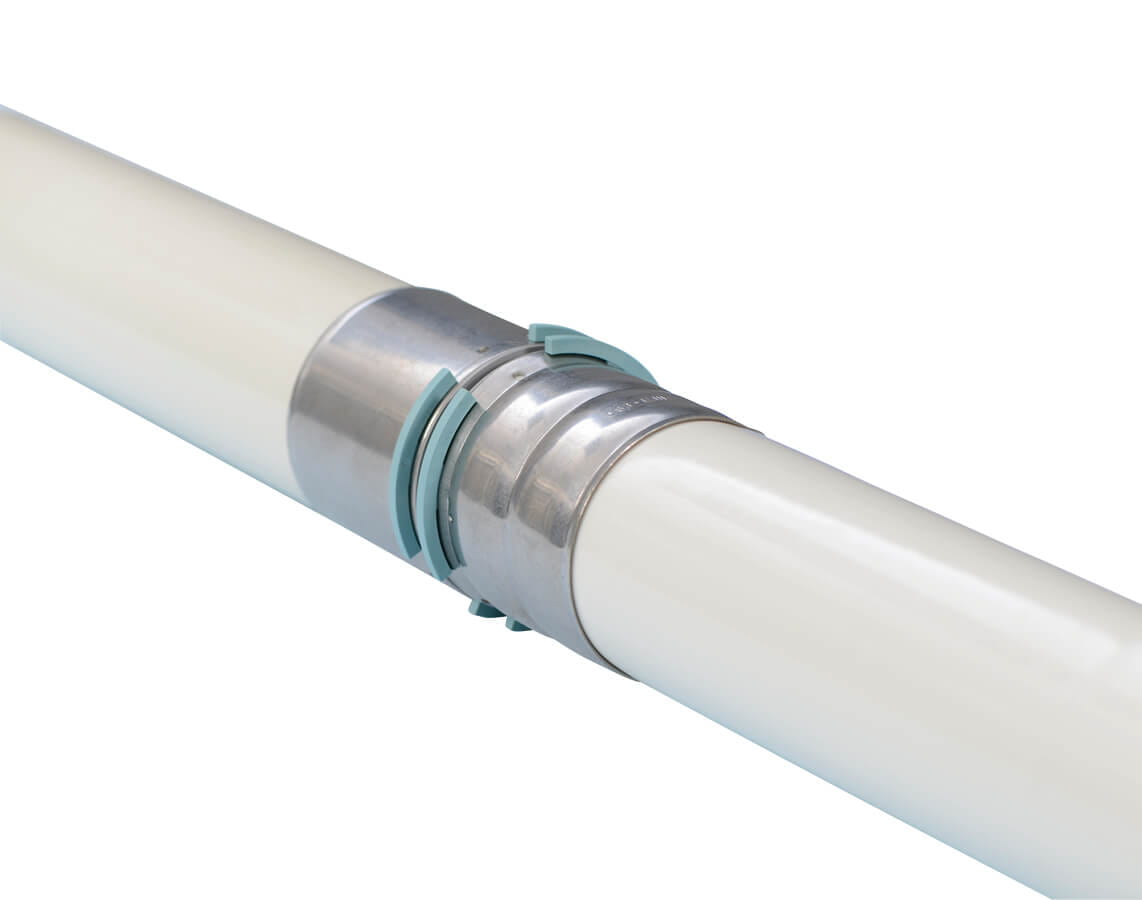

S-Press 40 - 75 mm

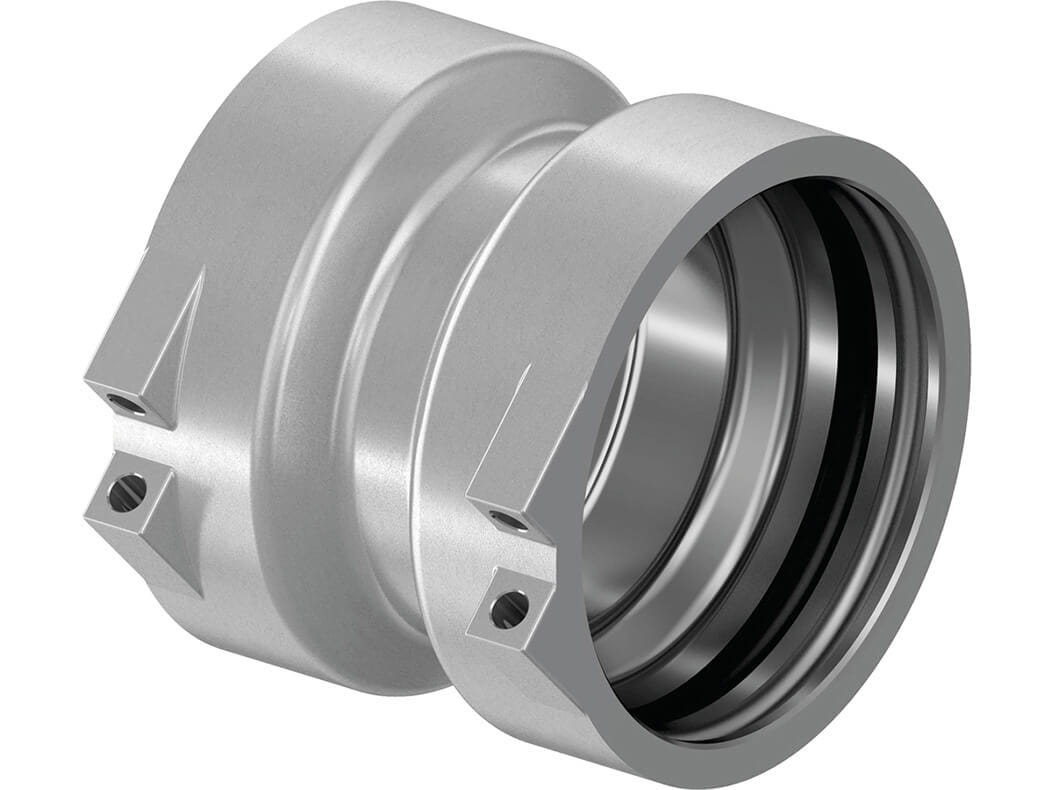

Modular riser fittings 63 - 110 mm

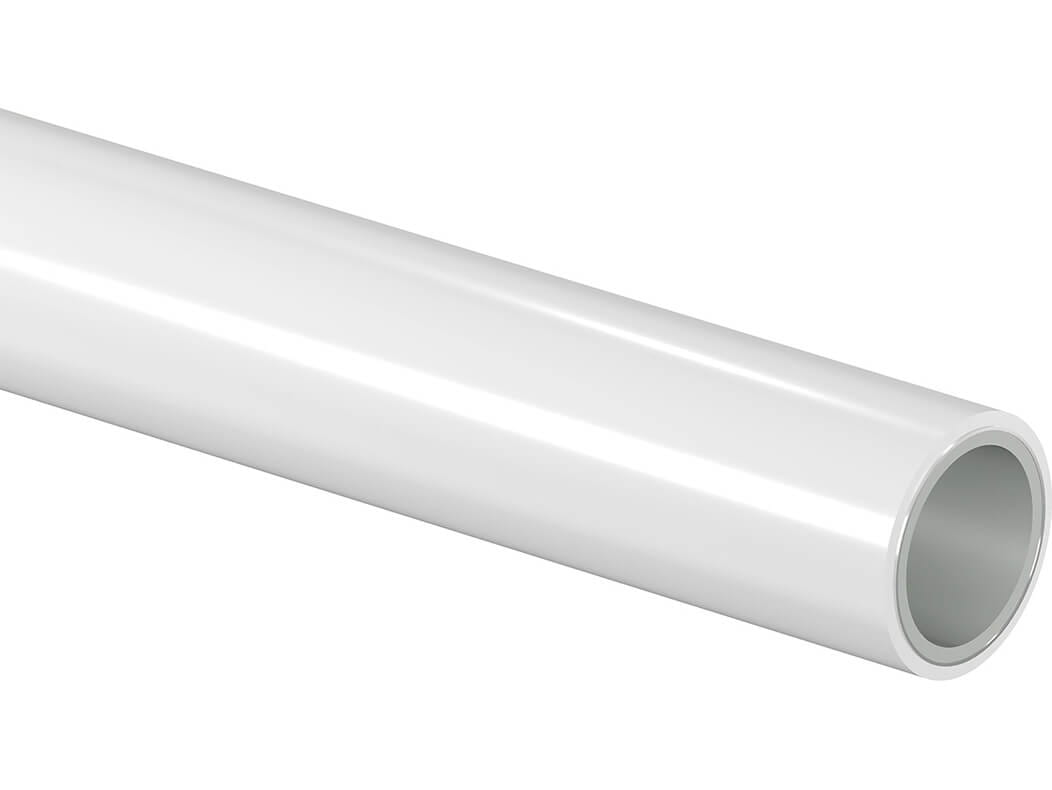

Uponor multilayer pipe system

A composite pipe in both small and large dimensions

Available in dimension 16 - 110 mm
100 % oxygen diffusion tight multilayer pipe and corrosion resistant
Easy handling
Low weight
High inherent stability and bend flexibility
Low linear expansion
Excellent hydrostatic stress performance
Low pressure drop in the pipes due to large internal dimensions

Uponor catalogue

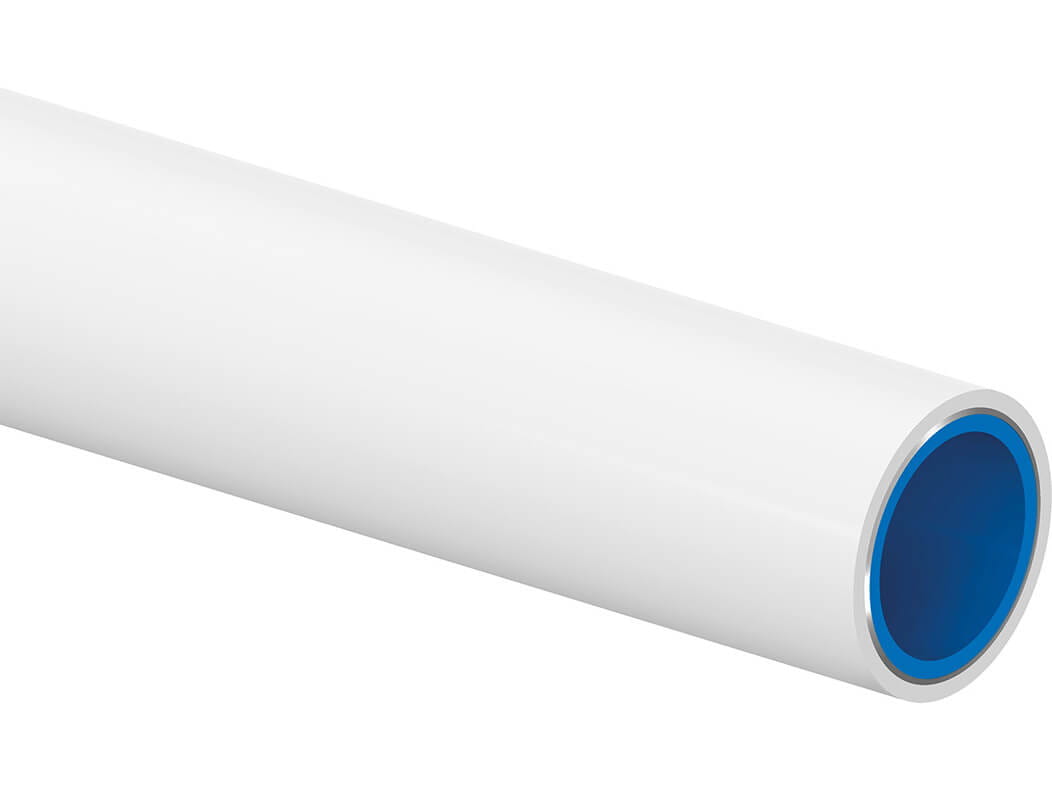

Uni Pipe PLUS - for fast installations

Up to 40 % narrower bending radius compared to conventional multilayer pipes
0 % adjustments - the pipe retains the shape perfectly after bending
Up to 15 % less fittings thanks to the higher bending ability
100 % backward compatible with Uponor's MLC pipes and S-Press connectors
Hygienic pipes that meet drinking water requirements and guidelines

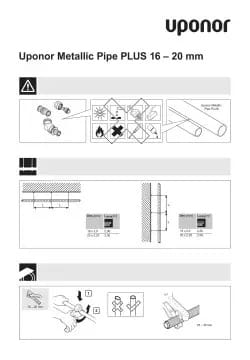

Uponor Metallic Pipe PLUS – for fast and clean installations

Metallic Pipe Column 33 66 image Desktop.jpg

Metallic feel and appearance
Hygienic
Maximum form stability and bending flexibility
Low weight - easy to handle
100 % oxygen and corrosion resistant
Highest level of safety without welding joint

Uni Pipe Plus Multilayer pipe

Check out this video for an introduction to Uponor Uni Pipe Plus

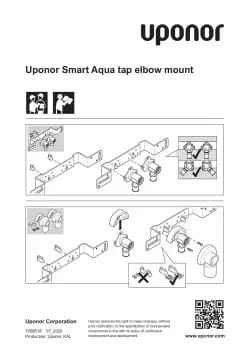

Creating connections in drywall

Shows connections in drywall with the Uponor Smart Aqua wall duct S-Press
Example of wooden and plasterboard construction

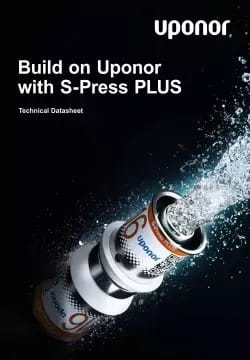

Uponor S-Press fittings

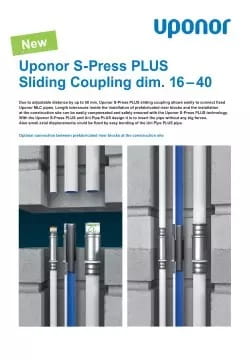

S Press PLUS sliding coupling dim. 16-40

S-Press PLUS features

Uponor innovative 3-step installation
Colour coding
Precise jaw fixation
Uponor unique press indicator
Accurate test safety function
Fully compatible with Uponor composite pipes and existing Uponor jaws

Easy onsite installation inside prefabricated riser blocks

Due to adjustable distance by up to 50 mm, Uponor S-Press PLUS sliding coupling allows easily to connect fixed Uponor MLC pipes. Length tolerances inside the installation of prefabricated riser blocks and the installation at the construction site can be easily compensated and safely ensured with the Uponor S-Press PLUS technology.

It is easy to insert the pipe without any big forces. Also small axial displacements could be fixed by easy bending of the Uni Pipe PLUS pipe.

>> Product information

>> Installation manual

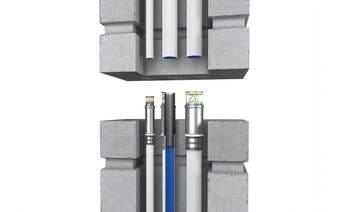

Optimal connection between prefabricated riser blocks at the construction site

Uponor S Press PLUS sliding coupling dim 16 to 40 open view

Uponor S Press PLUS sliding coupling dim 16 to 40 closed view

S Press PLUS sliding coupling
S Press PLUS
Quick intallation
Large dimension

Uponor pipe fittings related to the MLCP system

RTM system for tap water and radiator connection

Key benefits

Secure, safe and quick jointing
Colour coded joint indicator
No tool dependence
Joint indicator – visible and audible
Fast and easy installation
Fully certified and approved

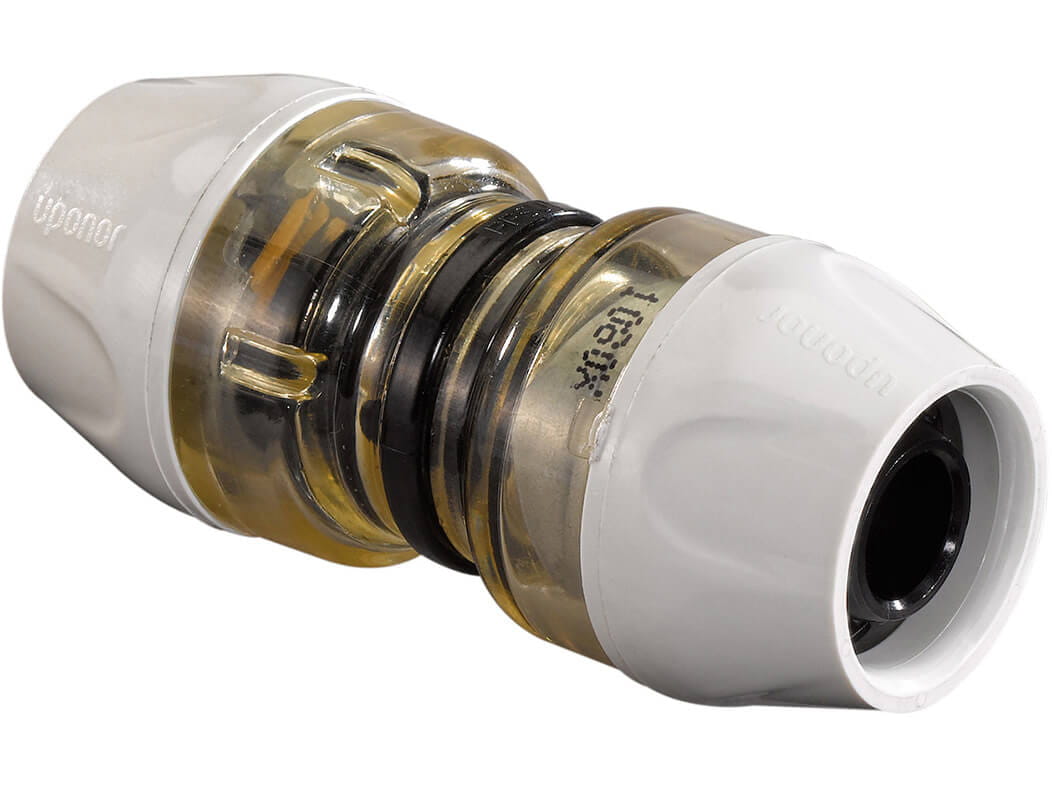

RTM tool free fittings

RTM^TMTechnology = Tool-Inside concept - Ring with Tension Memory
Material used combines the lightest engineered plastic with the best mechanical features of metal
Memory effect that ensures water tightness at all times
Ring applies a consistent pressure around the pipe, it absorbs any temperature fluctuations
