上海世博会2010-芬兰国家馆,
上海,
China

上海世博会2010-芬兰国家馆

芬兰馆—“冰壶”营造了一种“美好生活”的愿景，自由、创造、创新、社区精神、健康与自然。这些美好元素的完美融合，为人们提供了一个探讨美好生活发展蓝图的平台。另外，“冰壶”是按照永久性建筑的标准来设计的。世博会后，“冰壶”可被方便地拆卸，然后异地重建，后续利用。

Project Key Facts as PDF

Location

上海, China

Completion

2010

Building Type

公共建筑

Product systems

辐射供暖供冷

Address

上海世博会

Project Type

New building

项目概况

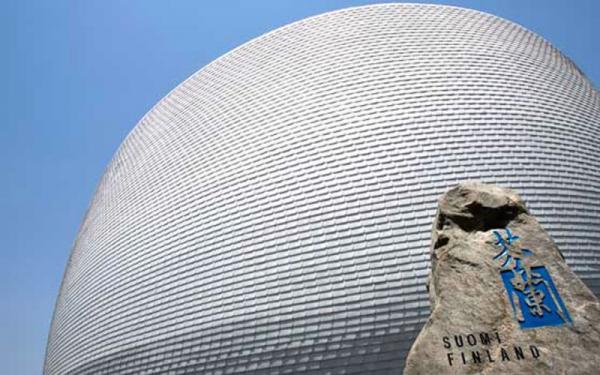

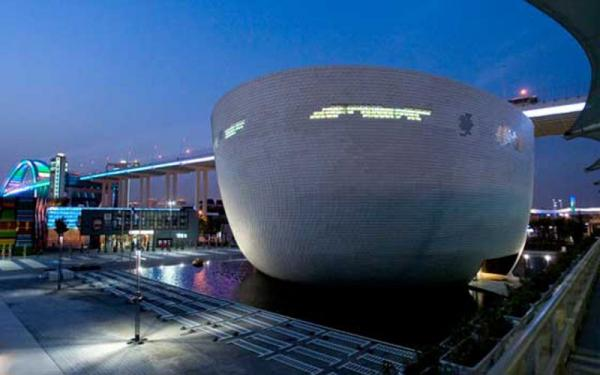

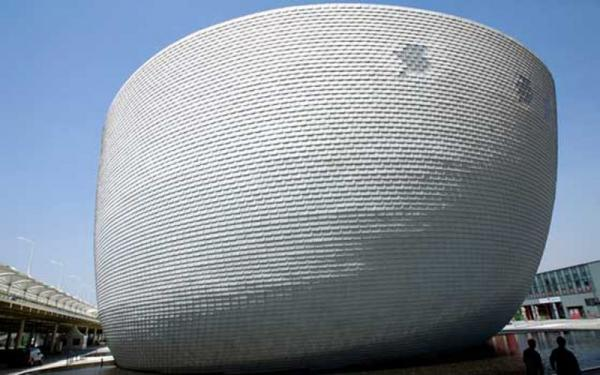

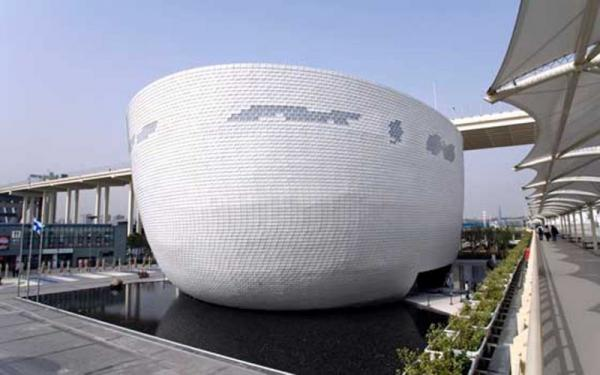

芬兰馆—“冰壶”营造了一种“美好生活”的愿景，自由、创造、创新、社区精神、健康与自然。这些美好元素的完美融合，为人们提供了一个探讨美好生活发展蓝图的平台。另外，“冰壶”是按照永久性建筑的标准来设计的。世博会后，“冰壶”可被方便地拆卸，然后异地重建，后续利用。

“冰壶”的设计体现了许多新型的环保理念，墙壁和顶部的开口促进了自然通风，且能铺设太阳能电池板，为展馆制冷等设备提供电力，雨水也可进行回收再利用。新型轻质墙面、独特的窗户结构都减少了日照引发的热强度，房顶种上植物则用来均衡热负荷。“冰壶”展示了芬兰的生态创新，展示了新的基于可持续发展的高新科技，所有建筑材料均在环保和可回收的原则上经过精挑细选。

欧博诺解决方案

芬兰国家馆—“冰壶”顶部安装的太阳能板，为整个展馆的制冷等设备提供了电力供应，欧博诺创新的HL辐射吊顶板为场馆创建了一个舒适的室内环境。结合展馆顶部太阳能板的使用，可大大节省能源的利用，欧博诺辐射吊顶板具有很高的热效率，通过优化的热传导能力在吊顶板表层和镶嵌在里面的PE-X管道之间进行导热。欧博诺辐射吊顶板是最优化的解决方案，也为使用者提供了最大限度的舒适性。

系统优势

室内温度和冷媒温差在10K时，制冷性能可提升至92.5W/㎡
安装便捷快速
可以与现有金属框架结构兼容
和石膏板相比具有更好的吸音功能
不影响顶棚的美观程度
传热性能提升近70%
基于DIN EN 13501-1标准建筑材料等级属于C-S2-D0，符合DIN 4101标准等级为B1
规格分为正方形尺寸600和625，同样还有尺寸为1250X625和1200X600

上海世博会2010-芬兰国家馆
