    上海佘山院子,
    上海,
    China

    上海佘山院子

    上海佘山院子

    置业公司钦点欧博诺作为其采暖系统的供应商
    上海佘山院子是著名地产公司路劲集团旗下的高档精装住宅区，位于上海市松江区，总面积达42000平方，540套公寓。
    Project Key Facts as PDF

    Location
    上海, China
    Completion
    2018
    Building Type
    独栋住宅
    Product systems
    辐射供暖供冷
    Project Type
    New building

    上海佘山院子是著名地产公司路劲集团旗下的高档精装住宅区，位于上海市松江区，总面积达42000平方，540套公寓。
    为配合该项目的高端定位，置业公司钦点欧博诺作为其采暖系统的供应商。为满足置业公司提出的高舒适性、维护便利、节能环保的要求，我们选用了米欧博诺16X2.0 PERT管以及黄铜分集水器的搭配方式。
    欧博诺PERT管道采用纯进口原料配合德国克劳斯玛菲专业挤出设备生产。全生产过程中配有INNOX超声波尺寸监控系统，全面把控质量。相比较普通PERT管道，欧博诺PERT管道有更好的热稳定性、长期耐压性能以及抗化学腐蚀性能使得管道不生锈、不结垢，完全符合GB/T28799标准。管道柔软性极佳，更便于盘管。其导热系数为0.4W/m.k,是地面辐射供暖中传热最快的塑料管材。
    欧博诺UBC黄铜分集水器，采用模块式设计，两段分别采用内螺纹和外螺纹接口使管道和接口连接更紧密更牢固。回水管各回路带有平衡阀，可用内六角扳手对阀门进行开度预设。可根据每种不同的户型搭配了不同接口数量以及管道回路，最大程度减少能耗，有效为业主节约后期维护成本。
    整套系统与传统采暖系统相比可节约12%的能源和运行费用且具有50年使用寿命，为项目提供可靠的国际化品质保证。
    在整个施工过程中，欧博诺工程师和销售人员积极与设计师和安装工沟通，避免了一些错误的安装方式，同时配合太仓工厂，对项目各批次产品的交货期严格把关，确保项目顺利的进行，为每个空间的安全性和舒适性保驾护航，赢得了业主和项目管理公司的好评。

    上海佘山院子

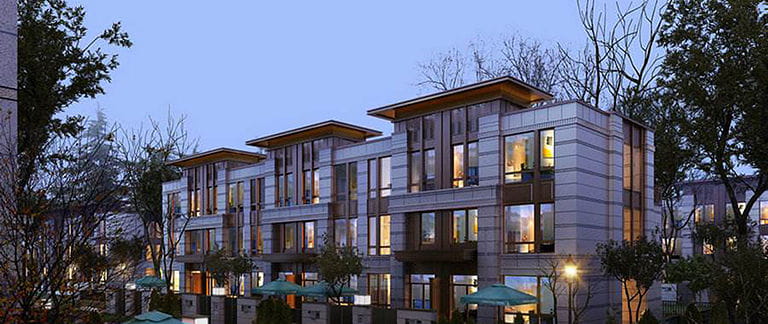

    timg 768_324

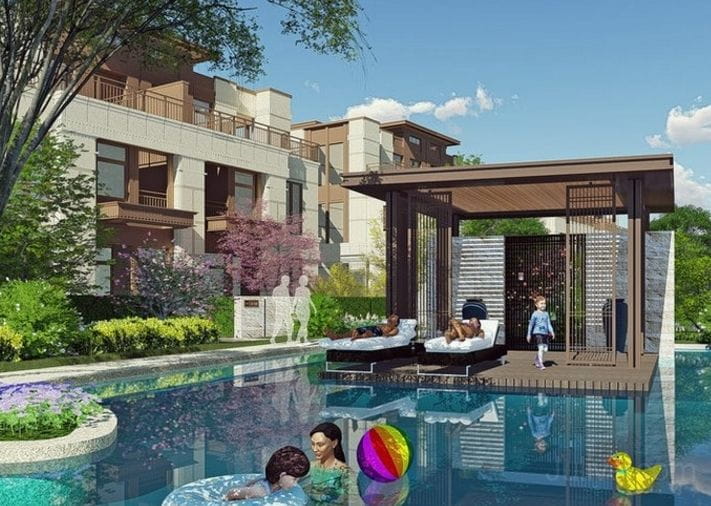

    i2
    i3
    i4

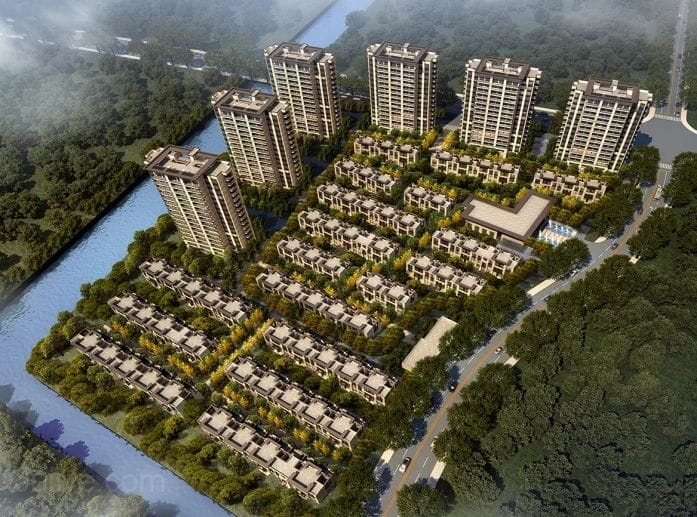

    i5
