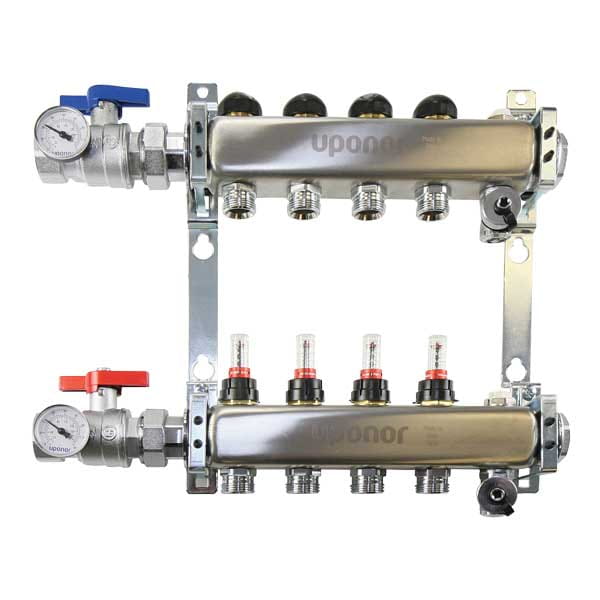

Stainless-steel Manifold Assembly, 1" with flow meter, B&I, ball valve, 5 loops
Número de piezaA2700502
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Detalles del artículo
Información y detalles de la pieza
Dimensions
A [frac] | 17 1/16 inch |
---|---|
A [inch] | 17.065 inch |
B [frac] | 14 1/8 inch |
B [inch] | 14.119 inch |
C [frac] | 3 27/32 inch |
C [inch] | 3.842 inch |
D [frac] | 1 31/32 inch |
D [inch] | 1.969 inch |
E [frac] | 5 31/64 inch |
E [inch] | 5.488 inch |
F [frac] | 1 35/64 inch |
F [inch] | 1.55 inch |
G [frac] | 2 3/64 inch |
G [inch] | 2.05 inch |
H [frac] | 12 13/64 inch |
H [inch] | 12.198 inch |
Manifold Body Size (I.D.) [inch] | 1 inch |
Weight per UOM [lbs/UOM] | 12.2 lbs/uom |
Technical Data
Cv Branch | 1.1 |
---|---|
End Size 1 [inch|mm] | 1-1/4" |
End Size 2 [inch|mm] | 3/4" |
End Type 1 | ISO 228-G |
End Type 2 | ISO 228-G |
Flow Rate Max. [gpm] | 14 gpm |
Operating Pressure 1 [PSI] | 145 psi |
Operating Pressure 2 [PSI] | 87 psi |
Operating Pressure 3 [PSI] | 44 psi |
Operating Temperature 1 [°F] | 68 °F |
Operating Temperature 2 [°F] | 158 °F |
Operating Temperature 3 [°F] | 194 °F |
Material manifold | Stainless steel AISI304 |
Material group | Stainless Steel |
Prop 65 label required? | Yes |
Subcomponent Material | Manifold Components: Brass CW614N-UNI EN12164, CW617N-UNI EN12165 |
