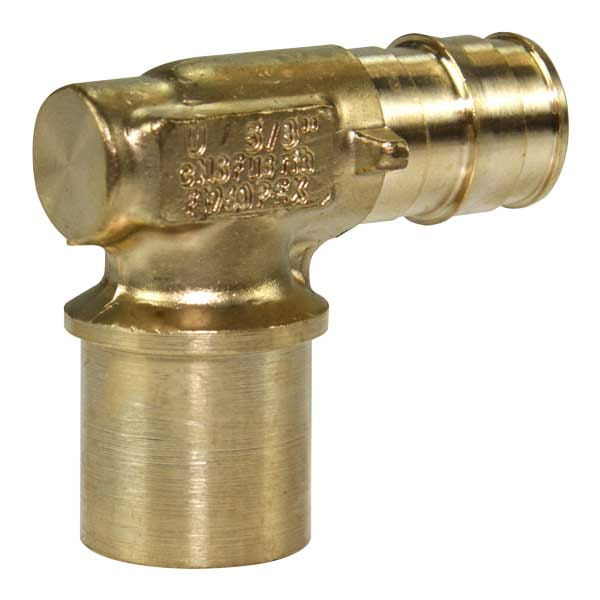

ProPEX Baseboard Elbow, 5/8" PEX x 3/4" Copper Fitting Adapter
Número de piezaQ4376375
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Detalles del artículo
Información y detalles de la pieza
Codes
| Codes | IMC |
|---|
Dimensions
| Weight per UOM [lbs/UOM] | 0.19 lbs/uom |
|---|---|
| A [inch] | 2.03 inch |
| A [frac] | 2 1/32 inch |
| B [inch] | 1.861 inch |
| B [frac] | 1 55/64 inch |
| C [inch] | 1.04 inch |
| C [frac] | 1 3/64 inch |
| D [inch] | 0.874 inch |
| D [frac] | 7/8 inch |
| E [inch] | 0.866 inch |
| E [frac] | 55/64 inch |
| F [inch] | 1.48 inch |
| F [frac] | 1 31/64 inch |
| G [inch] | 1.489 inch |
| G [frac] | 1 31/64 inch |
| H [frac] | 13/16 inch |
| H [inch] | 0.81 inch |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-rfh |
|---|
Standards
| Standards | ASTM F1960|CSA B137.5|NSF/ANSI 14|ASTM F877 |
|---|
Technical Data
| End Type 1 | ProPEX |
|---|---|
| End Type 2 | Sweat |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Prop 65 label required? | Yes |
| End Size 1 [inch|mm] | 5/8" |
| End Size 2 [inch|mm] | 3/4" |
| Material group | Brass |
