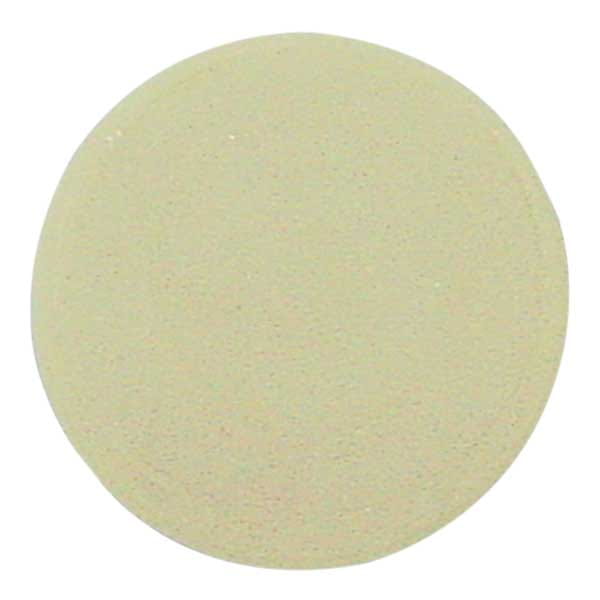

Brass Manifold Loop End Cap Gasket, spare part
Número de piezaA2400020
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Detalles del artículo
Información y detalles de la pieza
Dimensions
| A [frac] | 15/16 inch |
|---|---|
| A [inch] | 0.94 inch |
| B [frac] | 15/16 inch |
| B [inch] | 0.94 inch |
| C [frac] | 3/32 inch |
| C [inch] | 0.09 inch |
| Weight per UOM [lbs/UOM] | 0 lbs/uom |
Standards
| Standards | ASTM F877 |
|---|
Technical Data
| Material Gasket | EPDM, Peroxide Cured, Durometer 80 |
|---|---|
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Prop 65 label required? | Yes |
