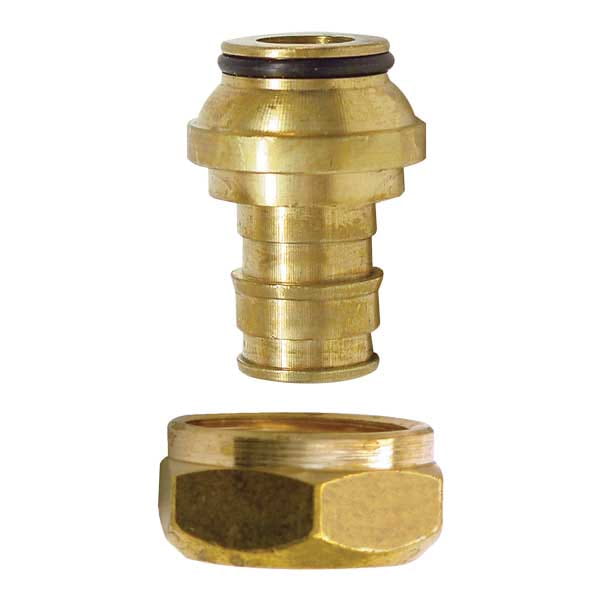

3/4" ProPEX Fitting Assembly, R20 Thread
Número de piezaQ4020750
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Detalles del artículo
Información y detalles de la pieza
Dimensions
| A [frac] | 1 35/64 inch |
|---|---|
| A [inch] | 1.55 inch |
| B [frac] | 39/64 inch |
| B [inch] | 0.605 inch |
| C [frac] | 1 3/8 inch |
| C [inch] | 1.368 inch |
| D [frac] | 9/32 inch |
| D [inch] | 0.285 inch |
| E [frac] | 15/16 inch |
| E [inch] | 0.945 inch |
| F [frac] | 1 3/16 inch |
| F [inch] | 1.187 inch |
| G [frac] | 11/16 inch |
| G [inch] | 0.684 inch |
| Weight per UOM [lbs/UOM] | 0.19 lbs/uom |
Technical Data
| Material group | Brass |
|---|---|
| Prop 65 label required? | Yes |
