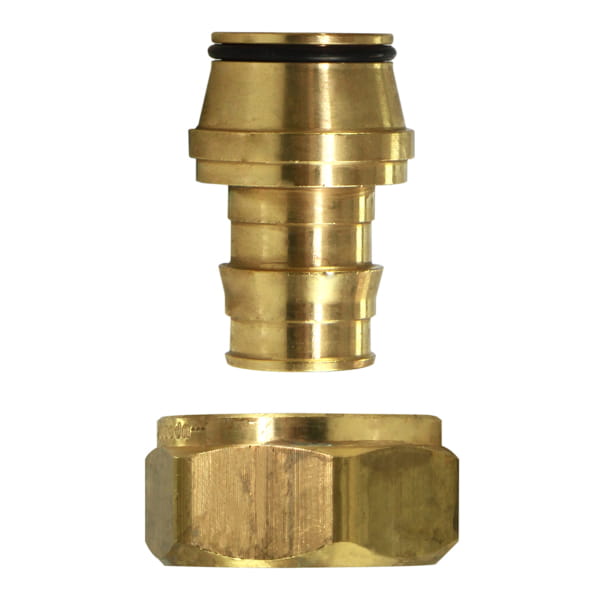

1" ProPEX Fitting Assembly for Commercial Manifold, R25 thread
Número de piezaQ4051000
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Detalles del artículo
Información y detalles de la pieza
Codes
| Codes | IRC|NBC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 1 61/64 inch |
|---|---|
| A [inch] | 1.949 inch |
| B [frac] | 49/64 inch |
| B [inch] | 0.768 inch |
| C [frac] | 1 47/64 inch |
| C [inch] | 1.729 inch |
| D [frac] | 9/32 inch |
| D [inch] | 0.275 inch |
| E [frac] | 1 3/16 inch |
| E [inch] | 1.181 inch |
| F [frac] | 1 1/2 inch |
| F [inch] | 1.5 inch |
| Equivalent length through [ft] | 3.22 ft |
| Weight per UOM [lbs/UOM] | 0.38 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC PMG 1006|cNSFus-rfh|ICC-ES-PMG 1012 |
|---|
Standards
| Standards | ASTM F877|ASTM F1960|CSA B137.5|R25: ISO 228-G 1"|NSF/ANSI 14 |
|---|
Technical Data
| Cv | 23 |
|---|---|
| End Size 1 [inch|mm] | 1" |
| End Size 2 [inch|mm] | 1" |
| End Type 1 | ProPEX |
| End Type 2 | ISO 228-G |
| Material Gasket | Nitrile (Buna N) |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Prop 65 label required? | Yes |
