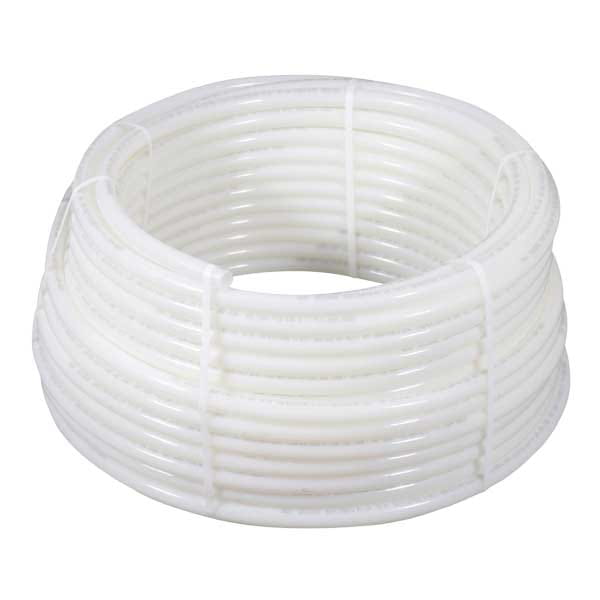

Catalog Image; Coil; Radiant Heating & Cooling Systems; Wirsbo hePEX tubing; a1250500

1/2" Wirsbo hePEX, 300-ft. coil

Número de piezaA1250500
Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Detalles del artículo

Información y detalles de la pieza

Codes

CodesIMC|UPC|IBC|IRC|NBC of Canada|IPC|UFGS|NPC of Canada|UMC|NSPC

Dimensions

Inner diameter coil [inch]19.7 inch
Outer diameter coil [inch]32 inch
Coil width [inch]4 inch
Inner diameter pipe [inch]0.475 inch
Outer diameter pipe [inch]0.625 inch
Weight per UOM [lbs/UOM]22.79 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-rfh|cNSFus-pw|CCMC|PPI TR-4|CSA|UL|U.P.Code|cQAIus P321

Standards

StandardsASTM F1960|ASTM E119/UL 263|ASTM F876|ASTM E84|ASTM F2023|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|CSA B214|NSF/ANSI/CAN 61|ULC S101|NSF/ANSI 14

Technical Data

Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Linear expansion rate [inch/10°F/100ft]1.1 inch/10°f/100ft
Material groupPEX
Pipe density [lb/ft³]0.0584 lb/ft³
Material Service PipeCrosslinked polyethylene (PEX-a) tubing; SDR-9, with EVOH oxygen barrier that conforms to DIN 4726
Thermal conductivity pipe [BTUin/ft²hrF°]0.22 btuin/ft²hrf°
