Stainless-steel manifold assembly, 1 1/4" with flow meter

Stainless-steel manifold assembly, 1 1/4" with flow meter

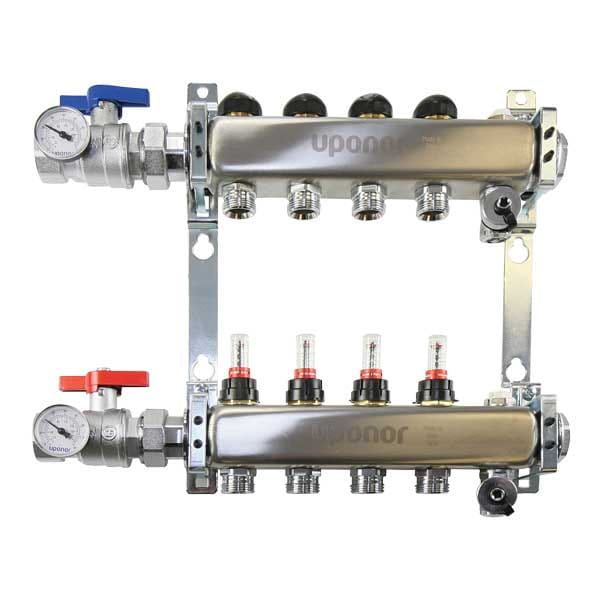

Stainless-steel manifolds feature isolation valves, balancing valves with flow meters, supply and return ball valves with temperature gauges, and come fully assembled, ready for installation. Targeted for commercial and residential radiant heating and cooling applications, the manifolds are available in 1" and 114" sizes. All manifold supply and return ball valves feature 1" NPT thread except for 114" manifold assemblies with 8, 10 and 12 loops which feature 114" NPT. Note: The 114" manifolds with 2 through 7 loops are strategically designed with 1" NPT ball valves to avoid adding extra costs while maintaining the maximum flow of the manifold assembly.
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Item details

NameStatus
Detail
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink

Documents

723 KB

Stainless Steel Manifold installation guide

Installation guide for Uponor stainless steel manifold. Follow the guide for recommendations to ensure proper installation of stainless steel manifold.

Similar products

Commercial stainless-steel manifold assembly, 1 1/2" with flow meter & ball valve

Commercial stainless-steel manifold assembly, 1 1/2" with flow meter & ball valve

The Uponor Commercial Stainless-steel Manifold is used for distribution and loop isolation in hydronic hot-water heating, chilled water, radiant heating and cooling, snow and ice melting, and permafrost prevention (cold storage) applications. The manifold features 1-1/2" distribution ball valves with 1" isolation ball valves on the supply manifold for easy loop isolation along with flow meters on the return manifold to balance the loops from 0-4 gpm. The R25 connections for outlet fittings are sold separately and are available in 5/8" and 3/4" compression or 5/8", 3/4", and 1" ProPEX.

ProPEX (type L) copper branch manifolds

ProPEX (type L) copper branch manifolds

ProPEX 1" copper branch manifolds feature 1/2" ProPEX LF brass outlets brazed to the manifold trunk. Sweat manifolds together to create the desired number of outlets. Do not exceed acceptable flow rates for 1" nominal copper. Note: ProPEX tool is required. ProPEX rings sold separately.



This product is made to order, please contact customer service for lead time.

TruFLOW Jr. valveless manifolds

TruFLOW Jr. valveless manifolds

TruFLOW Jr. valveless manifolds are used with either the TruFLOW Jr. return manifolds with isolation valves or the TruFLOW Jr. supply manifolds with balancing valves to complete the manifold set. TruFLOW Jr. valveless manifolds do not feature flow balancing or isolation capability. Manifolds are available in 2- to 4-loop configurations depending on model. The manifold body (1" barrel diameter) ends have R32 threads as shown in the picture. Maximum recommended flow to the manifold is 14 gpm.
