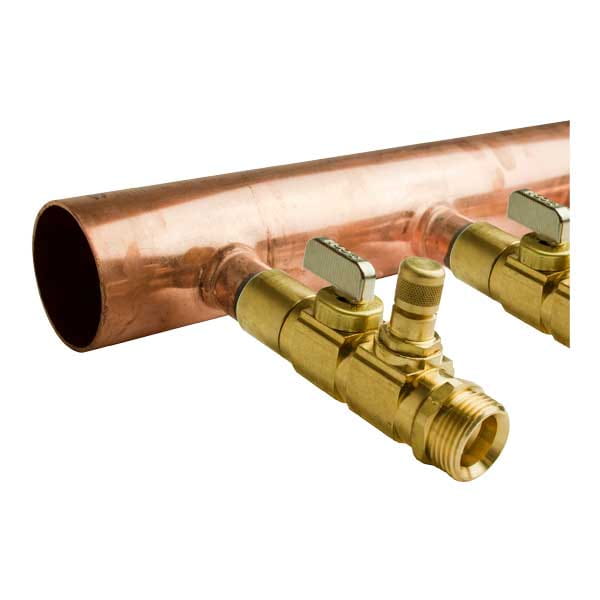

Copper valved manifolds with ProPEX ball valves are made of type L copper and feature 5⁄8" and 3⁄4" nominal branches that are 4" on center. The manifolds are available in 12-outlet configurations. The maximum recommended flow to the manifold based on manifold body diameter is 45 gpm. Note: ProPEX tool is required. ProPEX rings must be purchased separately.
This product is made to order, please contact customer service for lead time.
| Name | Status | Detail | ||
|---|---|---|---|---|
| Phaseout | Download submittal | productFamilyDetail/tab/itemDetails/detailLink | ||
| Phaseout | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
Copper valveless manifolds with 1/2" or 3/4" nominal branches are available in various outlet configurations. The manifolds can join together to create the desired number of outlets. Branches are brazed to the manifold trunk. Use Uponor QS-style or ProPEX 1/2" or 3/4" brass sweat adapters to make connections to 3/8", 1/2", 5/8" and 3/4" Uponor AquaPEX tubing. All manifolds require a 1" copper end cap and applicable transition fitting.Note: Maximum recommended flow rates for these manifolds are: 2", 45 gpm; 1 1/2", 21 gpm; 1",9 gpm.
This product is made to order, please contact customer service for lead time.
The Uponor Commercial Stainless-steel Manifold is used for distribution and loop isolation in hydronic hot-water heating, chilled water, radiant heating and cooling, snow and ice melting, and permafrost prevention (cold storage) applications. The manifold features 1-1/2" distribution ball valves with 1" isolation ball valves on the supply manifold for easy loop isolation along with flow meters on the return manifold to balance the loops from 0-4 gpm. The R25 connections for outlet fittings are sold separately and are available in 5/8" and 3/4" compression or 5/8", 3/4", and 1" ProPEX.
Copper valved manifolds with ProPEX ball valves are made of type L copper and feature 5⁄8" and 3⁄4" nominal branches that are 4" on center. The manifolds are available in 12-outlet configurations. The maximum recommended flow to the manifold based on manifold body diameter is 45 gpm. Note: ProPEX tool is required. ProPEX rings must be purchased separately.
This product is made to order, please contact customer service for lead time.
