Commercial stainless-steel manifold, spare and replacement parts
Spare and replacement parts for Uponor Commercial stainless-steel manifold assemblies.

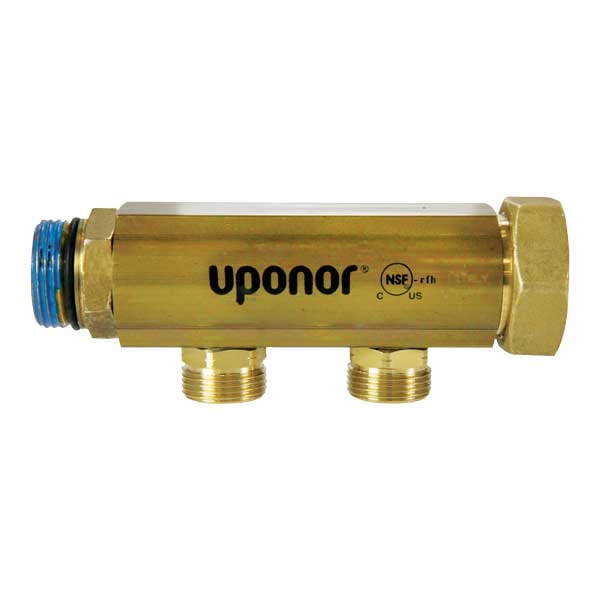

TruFLOW Jr. valveless manifolds
TruFLOW Jr. valveless manifolds are used with either the TruFLOW Jr. return manifolds with isolation valves or the TruFLOW Jr. supply manifolds with balancing valves to complete the manifold set. TruFLOW Jr. valveless manifolds do not feature flow balancing or isolation capability. Manifolds are available in 2- to 4-loop configurations depending on model. The manifold body (1" barrel diameter) ends have R32 threads as shown in the picture. Maximum recommended flow to the manifold is 14 gpm.
Find a distributor
Availability of specific products varies by distributor.
Similar products
Commercial stainless-steel manifold assembly, 1 1/2" with flow meter & ball valve
The Uponor Commercial Stainless-steel Manifold is used for distribution and loop isolation in hydronic hot-water heating, chilled water, radiant heating and cooling, snow and ice melting, and permafrost prevention (cold storage) applications. The manifold features 1-1/2" distribution ball valves with 1" isolation ball valves on the supply manifold for easy loop isolation along with flow meters on the return manifold to balance the loops from 0-4 gpm. The R25 connections for outlet fittings are sold separately and are available in 5/8" and 3/4" compression or 5/8", 3/4", and 1" ProPEX.
Stainless-steel manifold assembly, 1" with flow meter
Stainless-steel manifolds feature isolation valves, balancing valves with flow meters, supply and return ball valves with temperature gauges, and come fully assembled, ready for installation. Targeted for commercial and residential radiant heating and cooling applications, the manifolds are available in 1" and 11⁄4" sizes. All manifold supply and return ball valves feature 1" NPT thread except for 11⁄4" manifold assemblies with 8, 10 and 12 loops which feature 11⁄4" NPT. Note: The 11⁄4" manifolds with 2 through 7 loops are strategically designed with 1" NPT ball valves to avoid adding extra costs while maintaining the maximum flow of the manifold assembly.
Copper valved manifolds with ProPEX ball and balancing valves
Copper valved manifolds with ProPEX ball valves are made of type L copper and feature 5⁄8" and 3⁄4" nominal branches that are 4" on center. The manifolds are available in 12-outlet configurations. The maximum recommended flow to the manifold based on manifold body diameter is 45 gpm. Note: ProPEX tool is required. ProPEX rings must be purchased separately.
This product is made to order, please contact customer service for lead time.
