Stainless Steel Manifold installation guide
Installation guide for Uponor stainless steel manifold. Follow the guide for recommendations to ensure proper installation of stainless steel manifold.

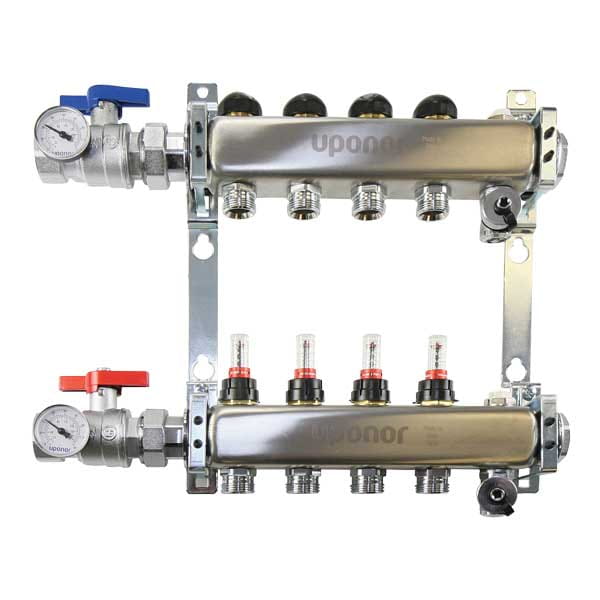

Stainless-steel manifold assembly, 1" with flow meter
Stainless-steel manifolds feature isolation valves, balancing valves with flow meters, supply and return ball valves with temperature gauges, and come fully assembled, ready for installation. Targeted for commercial and residential radiant heating and cooling applications, the manifolds are available in 1" and 11⁄4" sizes. All manifold supply and return ball valves feature 1" NPT thread except for 11⁄4" manifold assemblies with 8, 10 and 12 loops which feature 11⁄4" NPT. Note: The 11⁄4" manifolds with 2 through 7 loops are strategically designed with 1" NPT ball valves to avoid adding extra costs while maintaining the maximum flow of the manifold assembly.
Find a distributor
Availability of specific products varies by distributor.
Item details
Documents
Technical manual
Similar products
Copper valved manifolds with R20/R25 threaded ball and balancing valves
Copper valved manifolds with ProPEX ball valves are made of type L copper and feature 5⁄8" and 3⁄4" nominal branches that are 4" on center. The manifolds are available in 12-outlet configurations. The maximum recommended flow to the manifold based on manifold body diameter is 45 gpm. Note: ProPEX tool is required. ProPEX rings must be purchased separately.
This product is made to order, please contact customer service for lead time.
Copper valved manifolds with R20/R25 threaded ball valves
Copper valved manifolds with ProPEX ball valves are made of type L copper and feature 5⁄8" and 3⁄4" nominal branches that are 4" on center. The manifolds are available in 12-outlet configurations. The maximum recommended flow to the manifold based on manifold body diameter is 45 gpm. Note: ProPEX tool is required. ProPEX rings must be purchased separately.
This product is made to order, please contact customer service for lead time.
TruFLOW Jr. supply manifolds with balancing valves
TruFLOW Jr. supply manifolds with balancing valves are used in conjunction with either the TruFLOW Jr. modular manifolds with isolation valves or the TruFLOW Jr. modular valveless manifolds to complete the manifold set. The TruFLOW Jr. supply manifolds with balancing valves allow manual flow balancing of the individual loops on the manifolds. Manifolds are available in 2- to 4-loop configurations depending on model. The manifold body (1" barrel diameter) ends have R32 threads as shown in the picture. Maximum recommended flow to the manifold is 14 gpm.
Copper valveless manifolds with ProPEX connections
Copper valveless manifolds (type L copper) feature either 5⁄8" or 3⁄4" branches, come 4" on center, and are available in 12-outlet configurations.Note: ProPEX tool is required. ProPEX rings must be purchased separately. Special order only; allow four weeks for delivery.
This product is made to order, please contact customer service for lead time.
