TruFLOW Jr. manifold instruction sheet
Instruction sheet for Uponor TruFLOW Jr. Manifold to connect either an Uponor Manifold Adapter or any of the TruFLOW Jr. add-on modular manifolds.

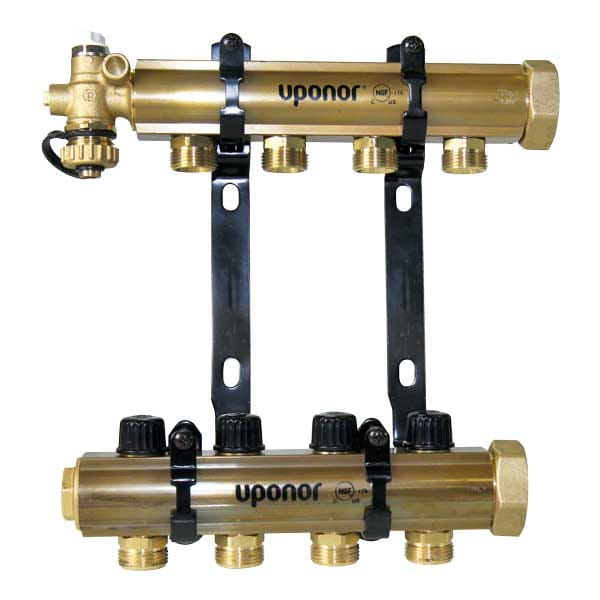

TruFLOW Jr. assemblies with balancing valves and valveless manifolds
TruFLOW Jr. assemblies with balancing valves and valveless manifolds come fully assembled and ready for installation. The manifold body (1" barrel diameter) ends have R32 unions and the loop outlets have R20 male threads. Maximum recommended flow to the manifold based on manifold body diameter is 14 gallons per minute (gpm).
Find a distributor
Availability of specific products varies by distributor.
Item details
| Name | Status | Detail | ||
|---|---|---|---|---|
| Phaseout | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
Documents
Technical manual
