Referencje

Renowacja zniszczonego kanału kamionkowego,
Tomaszów Mazowiecki,
Poland

Renowacja zniszczonego kanału kamionkowego - kraking/ relining krótki modułami VipLiner

W Tomaszowie Mazowieckim przeprowadzono renowację nieszczelnego kanału kamionkowego metodą krakingu statycznego za pomocą polietylenowych modułów VipLiner
W Tomaszowie Mazowieckim przeprowadzono renowację nieszczelnego kanału kamionkowego metodą krakingu statycznego za pomocą polietylenowych modułów VipLiner. W 2013 r. podjęto decyzję o przeprowadzeniu renowacji kanału kamionkowego o średnicy dn250mm i dn400mm. Kanał wykazywał liczne nieszczelności, także w miejscach łączenia ze studzienkami.

Pobierz kluczowe fakty jako plik PDF

Location

Tomaszów Mazowiecki, Poland

Realizacja

2014

Rodzaj budynku

Infrastruktura miejska

Product systems

Renowacje, Kanalizacja sanitarna i ogólnospławna

Rodzaj projektu

Renowacje

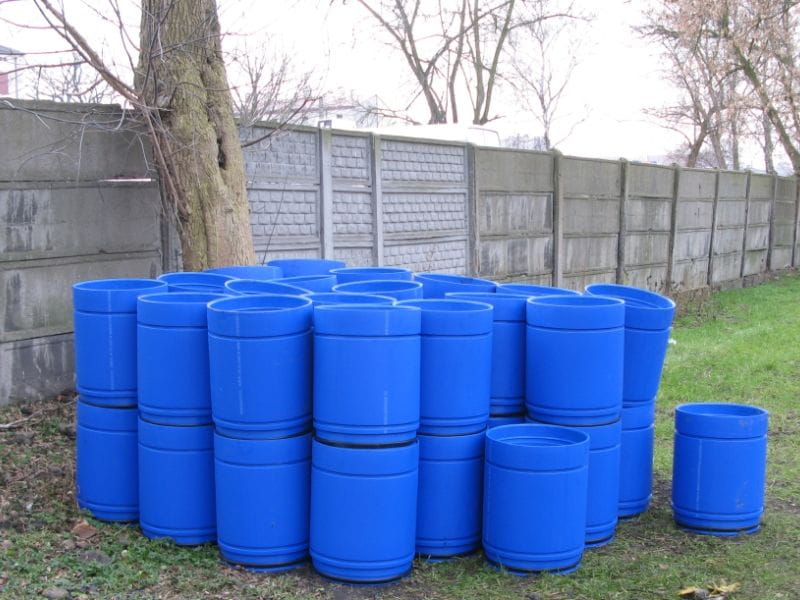

Moduły VipLiner o podwyższonej odporności

Po przeanalizowaniu różnych technik renowacji postanowiono naprawić VipLiner z polietylenu PE100 RC o podwyższonej odporności na propagację pęknięćkanał modułami , naciski punktowe i skutki zarysowań. Firma Blejkan zastosowała metodę krakingu statycznego, który polegał na kruszeniu starego kanału za pomocą głowicy połączonej stalowymi skręcanymi żerdziami z wciągarką o napędzie hydraulicznym i jednoczesnym wpychaniu za głowicą modułów VipLiner. Metoda ta pozwoliła uzyskać poprawę parametrów hydraulicznych sieci kanalizacyjnej.

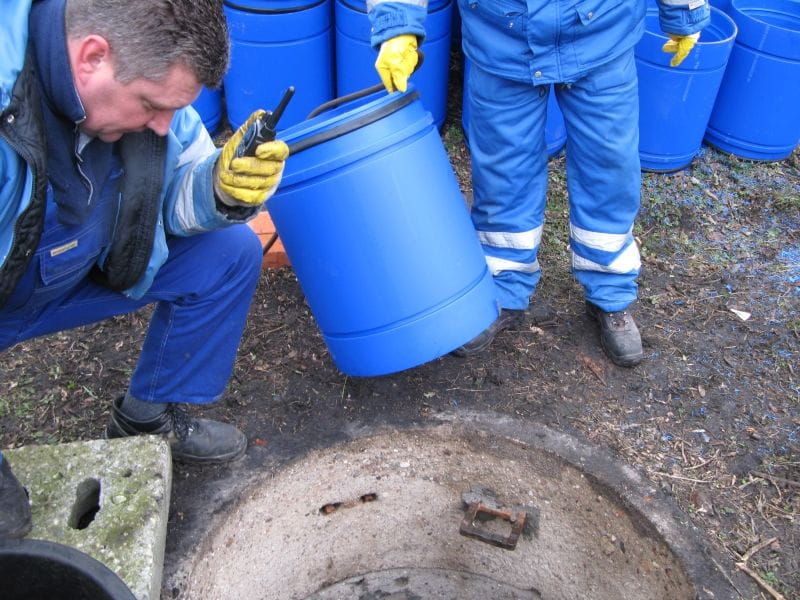

Na potrzeby tej inwestycji firma Uponor Infra dostarczyła moduły o długości 0,5 m i średnicy odpowiednio większej niż poddany renowacji odcinek (dn355 i 450mm). Roboty przeprowadzano zimą na przełomie roku 2013 i 2014. Rehabilitacji poddano 8 odcinków a najdłuższy odcinek pomiędzy studzienkami wynosił 60 m. Wykonawca chwalił łatwość i prostotę montażu modułów oraz szybkość prac przy wykorzystaniu VipLinerów (średni czas rehabilitacji odcinka to ok. 3 dni).

Renowacja zniszczonego kanału kamionkowego - kraking/ relining krótki modułami VipLiner
