Installation of Uponor Infra smart tanks at Rossmann Distribution Center
Uponor Infra has delivered two SN4 and SN8 DN2400 retention tanks with a total capacity of V=365m3, which will collect stormwater from warehouse roofs and be used for watering greenery.
Climate change and related extreme weather events, such as droughts and storms, increasingly affect cities, municipalities and businesses. A simple yet effective way to combat these phenomena is to improve local retention, i.e. retaining rainwater at the point of preciitation, delaying its runoff and storing it for use in dry periods. One of the places where such retention solutions are implemented is the Rossmann Distribution Center in Grudziądz.
Climate change and related extreme weather events, such as droughts and storms, increasingly affect cities, municipalities and businesses. A simple yet effective way to combat these phenomena is to improve local retention, i.e. retaining rainwater at the point of preciitation, delaying its runoff and storing it for use in dry periods. One of the places where such retention solutions are implemented is the Rossmann Distribution Center in Grudziądz.
Location
Grudziądz, Poland
Ferdigstilt
2022
Bygningstype
Kommersielt område
Product systems
Overvann
Modern logistics infrastructure using smart tanks
The Rossmann Distribution Center in Grudziądz is a key logistics facility for drugstores located in northern Poland. It started its operations in 2012, but due to the dynamic development of the company, a decision was made to expand it. As part of the investment, which lasted from April 2022 to March 2023, a new warehouse hall with an area of more than 11,200 sqm was built. The total area of Rossmann's warehouses in Grudziądz thus reached 35.5 thousand m².

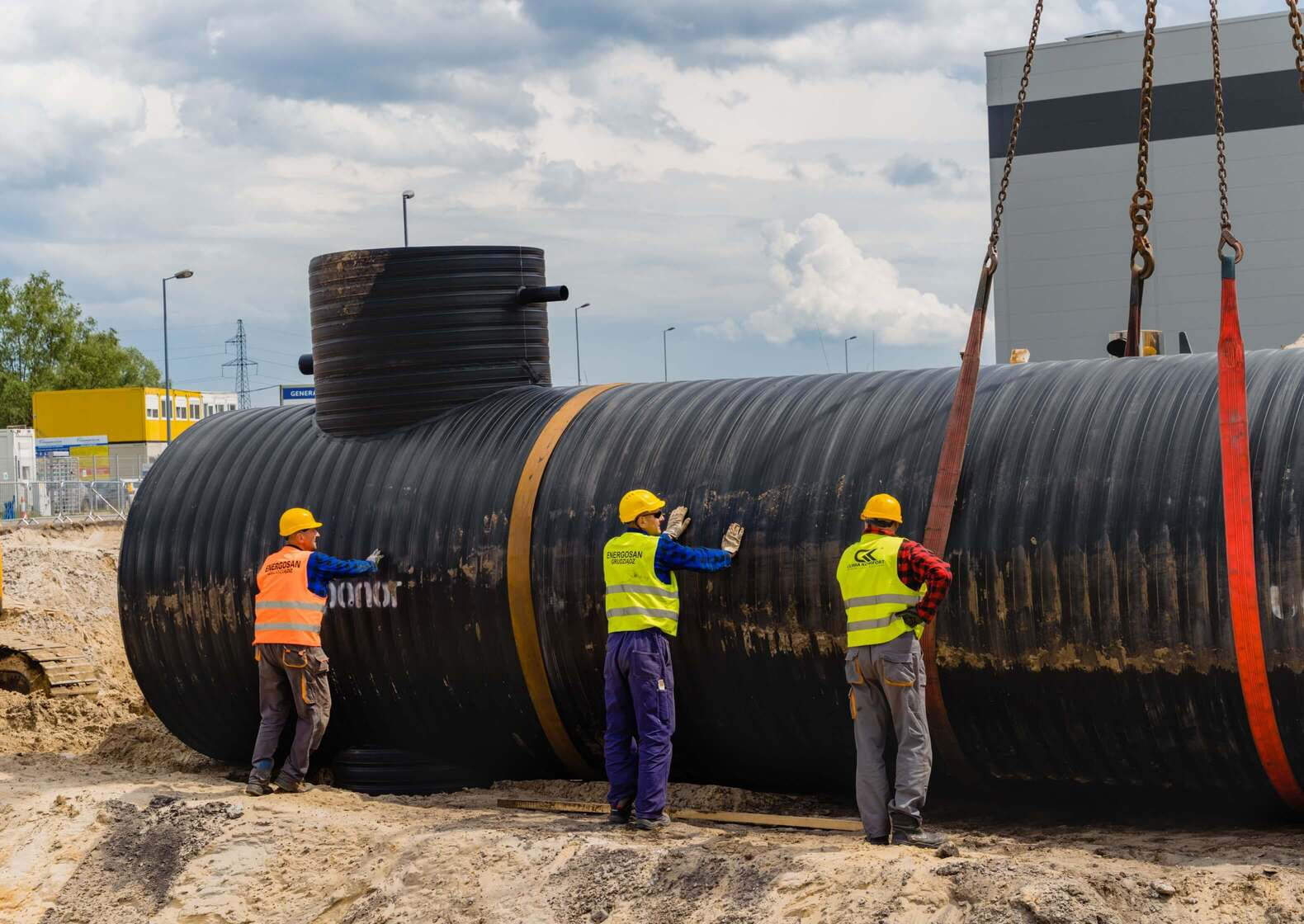

During the expansion of the warehouses, it was decided to install a system for managing stormwater from the facility's roofs. Two smart tanks manufactured by Uponor Infra were used for this purpose. The first tank is DN2400 SN4, 65 meters long and has a capacity of 290 m³, while the second is DN2400 SN8, 22 meters long and has a capacity of 96 m³. Both tanks are made of durable high-density polyethylene (PEHD), which guarantees their durability of more than 100 years.
Collected stormwater is transferred to the receiver via pumping systems installed directly in the tanks. The ability to store and manage the collected water allows it to be reused for, among other things, watering the greenery around the facility or washing the streets. The installation of the tanks was carried out in stages due to challenging soil and water conditions. Work began with extrusion welding, which ensured the tightness and durability of the connections. In July 2022, the pumps were installed, and in August the control cabinet was installed. After the pump system was put into operation, training was conducted for the center's staff.
The Uponor Infra retention system offers many benefits:
During the expansion of the warehouses, it was decided to install a system for managing stormwater from the facility's roofs. Two smart tanks manufactured by Uponor Infra were used for this purpose. The first tank is DN2400 SN4, 65 meters long and has a capacity of 290 m³, while the second is DN2400 SN8, 22 meters long and has a capacity of 96 m³. Both tanks are made of durable high-density polyethylene (PEHD), which guarantees their durability of more than 100 years.
Collected stormwater is transferred to the receiver via pumping systems installed directly in the tanks. The ability to store and manage the collected water allows it to be reused for, among other things, watering the greenery around the facility or washing the streets. The installation of the tanks was carried out in stages due to challenging soil and water conditions. Work began with extrusion welding, which ensured the tightness and durability of the connections. In July 2022, the pumps were installed, and in August the control cabinet was installed. After the pump system was put into operation, training was conducted for the center's staff.
The Uponor Infra retention system offers many benefits:
- Customization: The ability to tailor the tanks to the investor's specific needs.
- Durability and robustness: Resistance to dynamic traffic loads and stray currents.
- Modular design: Adaptation of the shape of the tanks to the available terrain.
- Cost savings: Reduction in costs associated with infrastructure maintenance, stormwater fees and tap water intake.
