    Uponor Vario C razdjelnik FM

    Uponor Vario C razdjelnik FM

    - polaz s mjeračem protoka za balansiranje i zatvaranje protoka
    - povrat s ventilima i ručkom

    Detalji o proizvodu

    ImeStatusIznos
    		Detalji
    Uponor Vario C razdjelnik FM 2x3/4 Euro
    1133470 / - / -

    Uponor Vario C razdjelnik FM 2x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 3x3/4 Euro
    1133471 / - / -

    Uponor Vario C razdjelnik FM 3x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 4x3/4 Euro
    1133472 / - / -

    Uponor Vario C razdjelnik FM 4x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 5x3/4 Euro
    1133473 / - / -

    Uponor Vario C razdjelnik FM 5x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 6x3/4 Euro
    1133474 / - / -

    Uponor Vario C razdjelnik FM 6x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 9x3/4 Euro
    1133477 / - / -

    Uponor Vario C razdjelnik FM 9x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 10x3/4 Euro
    1133478 / - / -

    Uponor Vario C razdjelnik FM 10x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 11x3/4 Euro
    1133479 / - / -

    Uponor Vario C razdjelnik FM 11x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink
    Uponor Vario C razdjelnik FM 12x3/4 Euro
    1133480 / - / -

    Uponor Vario C razdjelnik FM 12x3/4 Euro

    		Do isteka zaliha
    		productFamilyDetail/tab/itemDetails/detailLink

    Dokumenti

    Priručnik za postavljanje
    1 KB1122087

    Priručnik za postavljanje Vario C manifold FM (1122087)

    Download document

    Općenito

    Projektanti

    - Izrađen od nehrđajućeg čelika
    - S integriranim ventilima
    - Priključak s desne ili lijeve strane G1, s ravnom brtvom
    - S balans ventilom ili mjeračem protoka za balansiranje i zatvaranje protoka
    - Integrirani odzračni otvori i slavina za punjenje i pražnjenje na polazu i povratu
    - Priključak za petlje: G3/4" eurokonus
    - Razmak petlji 50 mm
    - Međusobni razmak sabirnika i razdjelnika je 225 mm

    Primjena

    - Za površinsko grijanje i hlađenje
    - Primjenjivo za ugradnju sa termopogonima s unutarnjim navojem FT 30x1.5: 1141676 (230V) i 1141677 (24V)
    - Max. tlak: 6 bar pri 60°C

    Crteži proizvoda

    1133470_ZMD
    1133470
    268 B
    268 B
    Download document
    1133471_ZMD
    1133471
    268 B
    268 B
    Download document
    1133471_ZMD
    1133471
    268 B
    268 B
    Download document
    1133472_ZMD
    1133472
    268 B
    268 B
    Download document

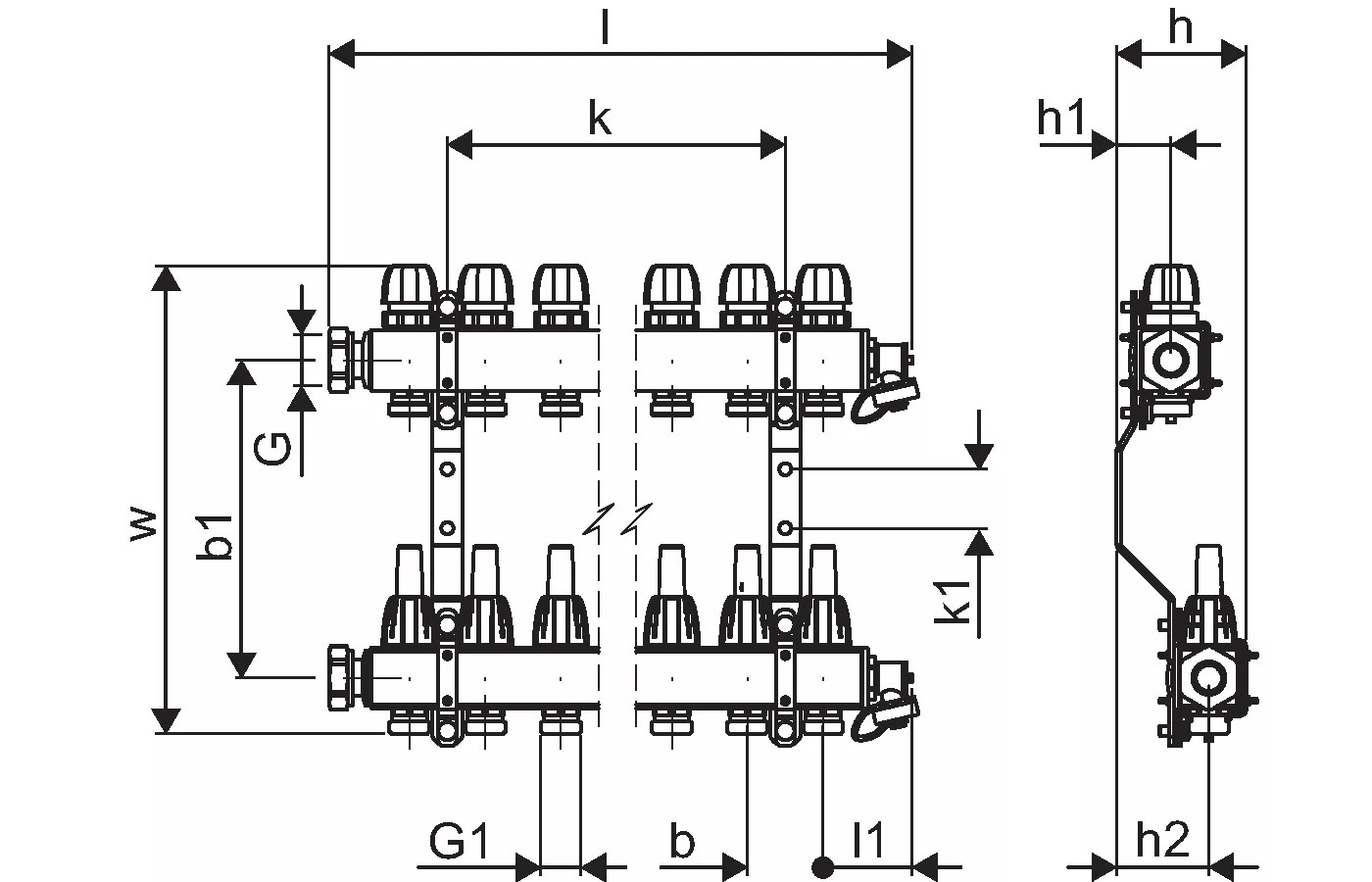

    1133473_ZMD
    1133473
    268 B
    268 B
    Download document
    1133474_ZMD
    1133474
    268 B
    268 B
    Download document
    1133477_ZMD
    1133477
    268 B
    268 B
    Download document
    1133477_ZMD
    1133477
    268 B
    268 B
    Download document
    1133478_ZMD
    1133478
    268 B
    268 B
    Download document
    1133478_ZMD
    1133478
    268 B
    268 B
    Download document
    1133478_ZMD
    1133478
    268 B
    268 B
    Download document
    1133479_ZMD
    1133479
    268 B
    268 B
    Download document
    1133479_ZMD
    1133479
    268 B
    268 B
    Download document
    1133479_ZMD
    1133479
    268 B
    268 B
    Download document
    1133480_ZMD
    1133480
    268 B
    268 B
    Download document
    1133480_ZMD
    1133480
    268 B
    268 B
    Download document
    1133470_REN
    1133470
    68 B
    68 B
    Download document
    1133471_REN
    1133471
    75 B
    75 B
    Download document
    1133471_REN
    1133471
    75 B
    75 B
    Download document
    1133472_REN
    1133472
    86 B
    86 B
    Download document

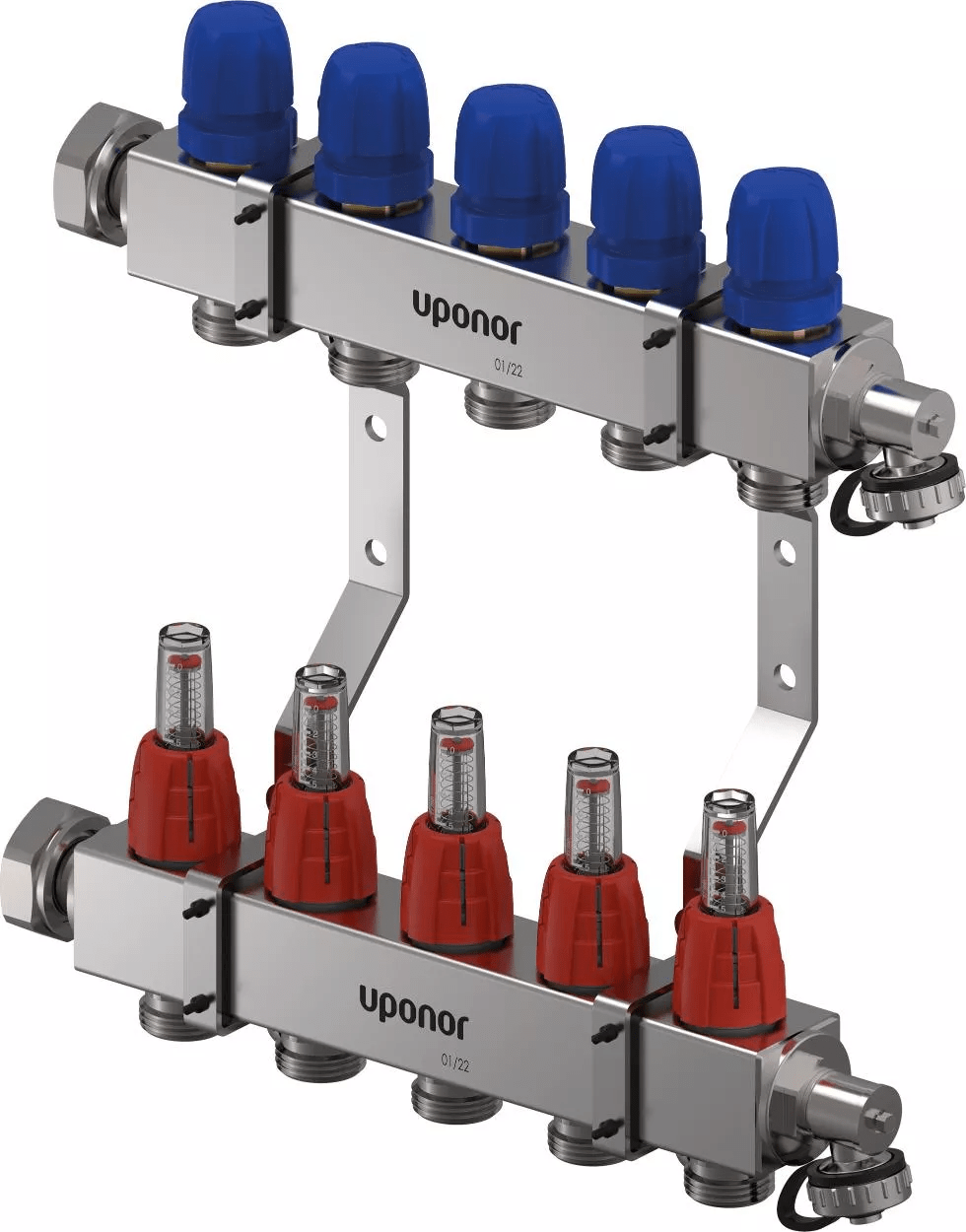

    1133473_REN
    1133473
    95 B
    95 B
    Download document
    1133474_REN
    1133474
    104 B
    104 B
    Download document
    1133477_REN
    1133477
    120 B
    120 B
    Download document
    1133477_REN
    1133477
    120 B
    120 B
    Download document
    1133478_REN
    1133478
    126 B
    126 B
    Download document
    1133478_REN
    1133478
    126 B
    126 B
    Download document
    1133479_REN
    1133479
    132 B
    132 B
    Download document
    1133479_REN
    1133479
    132 B
    132 B
    Download document
    1133479_REN
    1133479
    132 B
    132 B
    Download document
    1133480_REN
    1133480
    136 B
    136 B
    Download document
    1133480_REN
    1133480
    136 B
    136 B
    Download document
    1133480_REN
    1133480
    136 B
    136 B
    Download document
    1133470_LAB
    1133470
    87 B
    87 B
    Download document
    1133471_LAB
    1133471
    94 B
    94 B
    Download document
    1133472_LAB
    1133472
    115 B
    115 B
    Download document

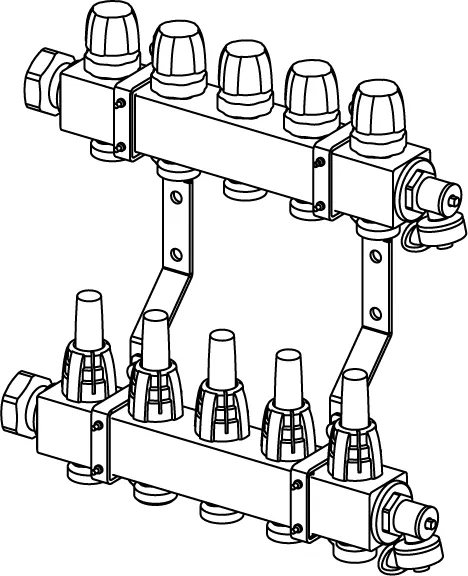

    1133473_LAB
    1133473
    123 B
    123 B
    Download document
    1133474_LAB
    1133474
    123 B
    123 B
    Download document
    1133474_LAB
    1133474
    123 B
    123 B
    Download document
    1133477_LAB
    1133477
    135 B
    135 B
    Download document
    1133477_LAB
    1133477
    135 B
    135 B
    Download document

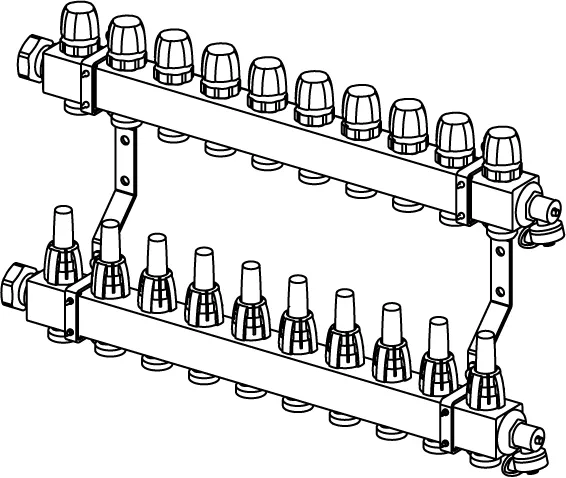

    1133478_LAB
