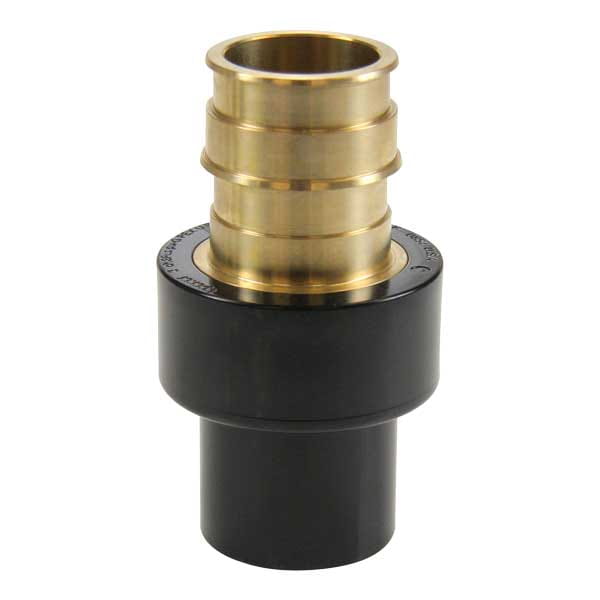

ProPEX LF Brass x CPVC Spigot Adapter, 2" PEX x 2" CPVC (CTS)
Numéro de pièceCP4502020
Trouver un distributeur
La disponibilité de produits spécifiques varie selon le distributeur.
Détails de l’élément
Informations et détails sur les pièces
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| Weight per UOM [lbs/UOM] | 1.4 lbs/uom |
|---|---|
| A [inch] | 5.287 inch |
| A [frac] | 5 9/32 inch |
| B [inch] | 1.42 inch |
| B [frac] | 1 27/64 inch |
| C [inch] | 1.72 inch |
| C [frac] | 1 23/32 inch |
| D [inch] | 2.123 inch |
| D [frac] | 2 1/8 inch |
| E [inch] | 1.5 inch |
| E [frac] | 1 1/2 inch |
| F [inch] | 3.0 inch |
| F [frac] | 3 inch |
| G [frac] | 1 1/16 inch |
| G [inch] | 1.061 inch |
| H [frac] | 2 9/64 inch |
| H [inch] | 2.147 inch |
Listings
| Listings | IAPMO-ES|HUD MR 1269|ICC-ES-PMG|cNSFus-pw-G|U.P.Code|cQAIus P321 |
|---|
Normes
| Standards | NSF-372|ASTM F877|ASTM F1960|CSA B137.5|ASTM D2846|NSF-61|NSF-14 |
|---|
Technical Data
| End Type 1 | ProPEX |
|---|---|
| End Type 2 | CPVC |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Subcomponent Material | Body: LF Brass and CPVC O-ring: EPDM |
| Prop 65 label required? | Yes |
| End Size 1 [inch|mm] | 2" |
| End Size 2 [inch|mm] | 2" |
| Material group | LF Brass |
