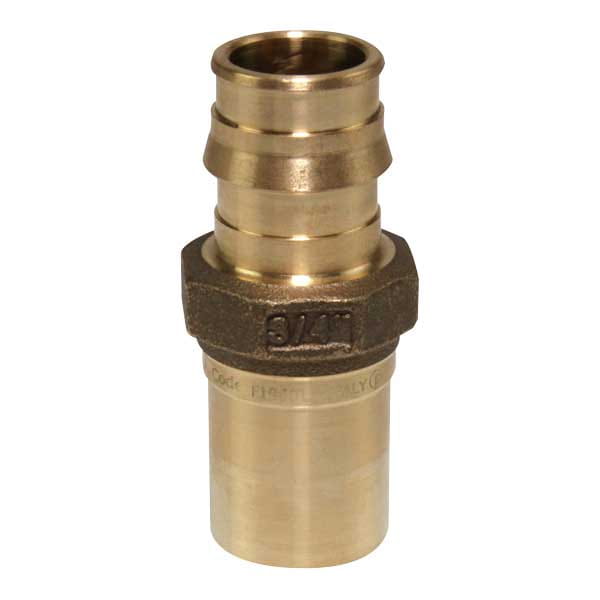

ProPEX LF Brass Copper Press Fitting Adapter, 3/4" PEX x 3/4" Copper
Numéro de pièceLFP4507575
Trouver un distributeur
La disponibilité de produits spécifiques varie selon le distributeur.
Détails de l’élément
Informations et détails sur les pièces
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 2 13/32 inch |
|---|---|
| A [inch] | 2.404 inch |
| B [frac] | 19/32 inch |
| B [inch] | 0.593 inch |
| C [frac] | 55/64 inch |
| C [inch] | 0.866 inch |
| D [frac] | 7/8 inch |
| D [inch] | 0.874 inch |
| E [frac] | 1 5/64 inch |
| E [inch] | 1.083 inch |
| F [frac] | 7/16 inch |
| F [inch] | 0.437 inch |
| G [frac] | 15/16 inch |
| G [inch] | 0.945 inch |
| Equivalent length through [ft] | 2.4 ft |
| Weight per UOM [lbs/UOM] | 0.16 lbs/uom |
Listings
| Listings | IAPMO-ES|cNSFus-pw-G|U.P.Code|ICC-PMG-1412 |
|---|
Normes
| Standards | ASME B16.51|IAPMO PS 117|NSF-372|ASTM F877|ICC-ES LC1002|ASTM F1960|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| Cv | 12.8 |
|---|---|
| End Size 1 [inch|mm] | 3/4" |
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | ProPEX |
| End Type 2 | Copper Press |
| Material Gasket | EPDM |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
