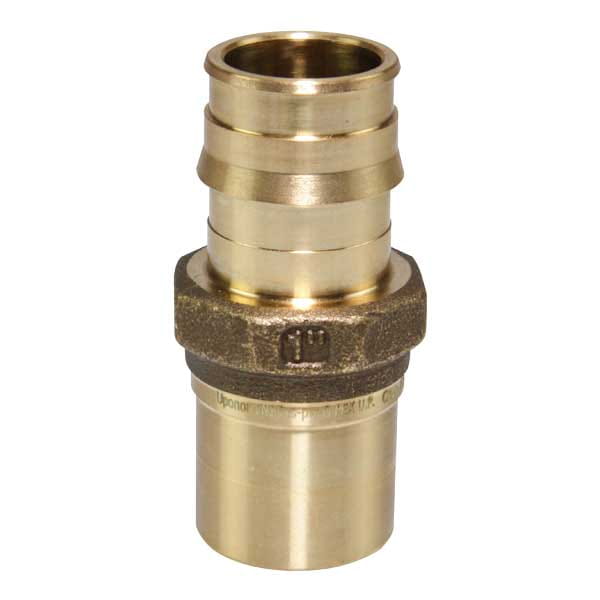

ProPEX LF Brass Copper Press Fitting Adapter, 1" PEX x 1" Copper
Numéro de pièceLFP4501010
Trouver un distributeur
La disponibilité de produits spécifiques varie selon le distributeur.
Détails de l’élément
Informations et détails sur les pièces
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 2 27/32 inch |
|---|---|
| A [inch] | 2.851 inch |
| B [frac] | 43/64 inch |
| B [inch] | 0.67 inch |
| C [frac] | 1 inch |
| C [inch] | 1 inch |
| D [frac] | 1 1/8 inch |
| D [inch] | 1.125 inch |
| E [frac] | 1 23/64 inch |
| E [inch] | 1.358 inch |
| F [frac] | 9/16 inch |
| F [inch] | 0.563 inch |
| G [frac] | 1 3/16 inch |
| G [inch] | 1.181 inch |
| Equivalent length through [ft] | 3.1 ft |
| Weight per UOM [lbs/UOM] | 0.26 lbs/uom |
Listings
| Listings | IAPMO-ES|cNSFus-pw-G|U.P.Code|ICC-PMG-1412 |
|---|
Normes
| Standards | ASME B16.51|IAPMO PS 117|NSF/ANSI/CAN 372|ASTM F877|ICC-ES LC1002|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cv | 21.4 |
|---|---|
| End Size 1 [inch|mm] | 1" |
| End Size 2 [inch|mm] | 1" |
| End Type 1 | ProPEX |
| End Type 2 | Copper Press |
| Material Gasket | EPDM |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
