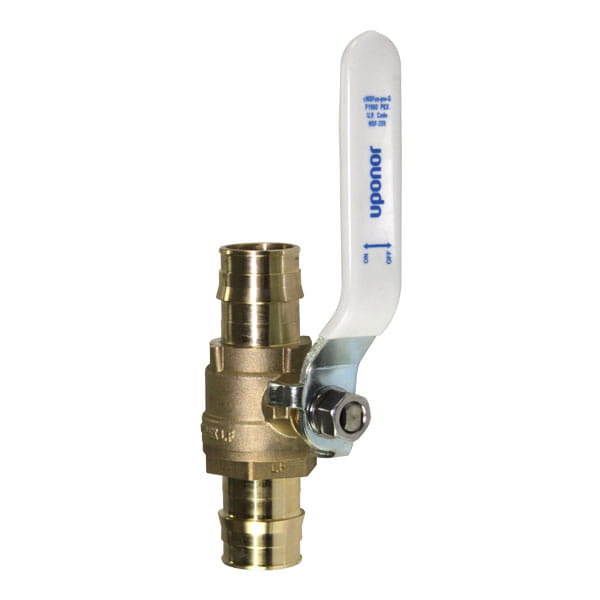

ProPEX LF Brass Commercial Ball Valve (full port) SS Ball and Stem 1 1/2" PEX x 1 1/2" PEX
Numéro de pièceLFC4821515SS
Trouver un distributeur
La disponibilité de produits spécifiques varie selon le distributeur.
Détails de l’élément
Informations et détails sur les pièces
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 1 45/64 inch |
|---|---|
| A [inch] | 1.705 inch |
| B [frac] | 2 1/16 inch |
| B [inch] | 2.059 inch |
| C [frac] | 3 7/64 inch |
| C [inch] | 3.114 inch |
| D [frac] | 5 37/64 inch |
| D [inch] | 5.584 inch |
| E [frac] | 1 1/32 inch |
| E [inch] | 1.024 inch |
| F [frac] | 63/64 inch |
| F [inch] | 0.98 inch |
| G [frac] | 8 3/8 inch |
| G [inch] | 8.368 inch |
| H [frac] | 4 9/64 inch |
| H [inch] | 4.138 inch |
| I [frac] | 2 3/32 inch |
| I [inch] | 2.087 inch |
| J [frac] | 5 15/32 inch |
| J [inch] | 5.469 inch |
| Weight per UOM [lbs/UOM] | 1.9 lbs/uom |
Listings
| Listings | cNSFus-pw-G|U.P.Code |
|---|
Normes
| Standards | ASTM F877|NSF/ANSI/CAN 372|NSF/ANSI 359|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cold working pressure (CWP) [psi] | 250 psi |
|---|---|
| Cv | 58.9 |
| End Size 1 [inch|mm] | 1-1/2" |
| End Size 2 [inch|mm] | 1-1/2" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| Operating Pressure 1 [PSI] | 200 psi |
| Operating Temperature 1 [°F] | 200 °F |
| Prop 65 label required? | Yes |
