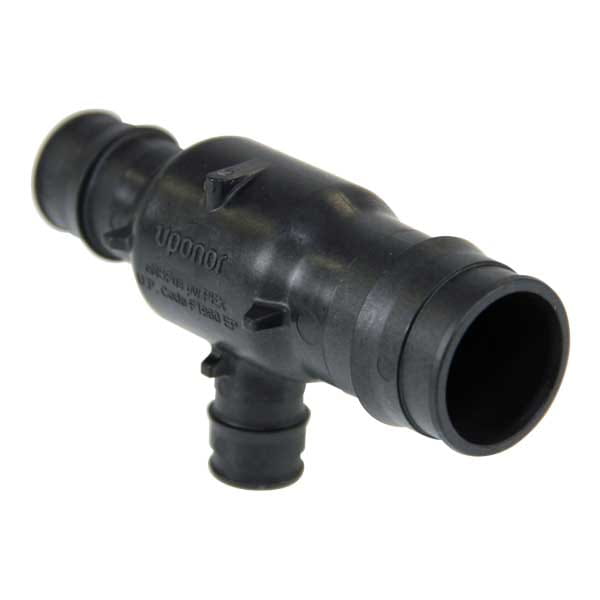

ProPEX EP Reducing Tee, 1" PEX x 3/4" PEX x 1/2" PEX

Numéro de pièceQ4751750
Télécharger la soumission

Trouver un distributeur

La disponibilité de produits spécifiques varie selon le distributeur.

Détails de l’élément

Informations et détails sur les pièces

Codes

CodesIMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC

Dimensions

A [frac]1 3/16 inch
A [inch]1.191 inch
B [frac]3/4 inch
B [inch]0.75 inch
C [frac]3/4 inch
C [inch]0.75 inch
D [frac]61/64 inch
D [inch]0.955 inch
E [frac]21/32 inch
E [inch]0.65 inch
F [frac]23/32 inch
F [inch]0.719 inch
G [frac]3 41/64 inch
G [inch]3.646 inch
H [frac]1 61/64 inch
H [inch]1.959 inch
I [frac]1 31/64 inch
I [inch]1.48 inch
Equivalent length branch [ft]15.1 ft
Equivalent length through [ft]2.4 ft
Weight per UOM [lbs/UOM]0.07 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321|HUD MR 1269

Normes

StandardsASTM F1960|ASTM E119/UL 263|ASTM E84|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF/ANSI/CAN 61|ULC S101|NSF/ANSI 14

Technical Data

Cv Branch13.2
Cv Through3.1
End Size 1 [inch|mm]1"
End Size 2 [inch|mm]3/4"
End Size 3 [inch|mm]1/2"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupEngineered Polymer
