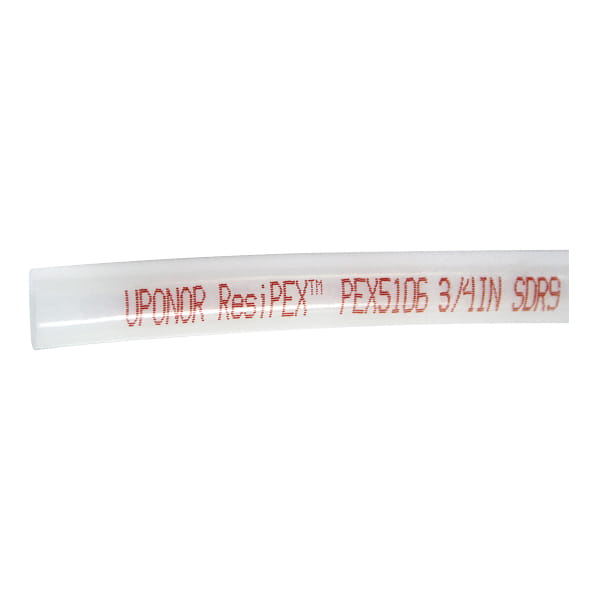

3/4" Uponor ResiPEX White, Red Print, 20-ft. straight length, 300 ft. (15 per bundle)
Numéro de pièceF8920750
Trouver un distributeur
La disponibilité de produits spécifiques varie selon le distributeur.
Détails de l’élément
Informations et détails sur les pièces
Codes
| Codes | UPC|IBC|IRC|NBC of Canada|IPC|NPC of Canada|NSPC |
|---|
Dimensions
| Inner diameter coil [inch] | 4.5 inch |
|---|---|
| Outer diameter coil [inch] | 258 inch |
| Inner diameter pipe [inch] | 0.671 inch |
| Outer diameter pipe [inch] | 0.875 inch |
| Weight per UOM [lbs/UOM] | 31 lbs/uom |
Listings
| Listings | cNSFus-pw |
|---|
Normes
| Standards | ASTM F877|CAN/CSA B137.5|ASTM F1960|NSF/ANSI/CAN 61|ASTM F876|NSF/ANSI 14|ASTM F2023 |
|---|
Technical Data
| Operating Pressure 1 [PSI] | 160 psi |
|---|---|
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Linear expansion rate [inch/10°F/100ft] | 1.1 inch/10°f/100ft |
| SDR-class | 9 |
| Material Service Pipe | Crosslinked polyethylene (PEX-a) tubing; SDR-9 |
