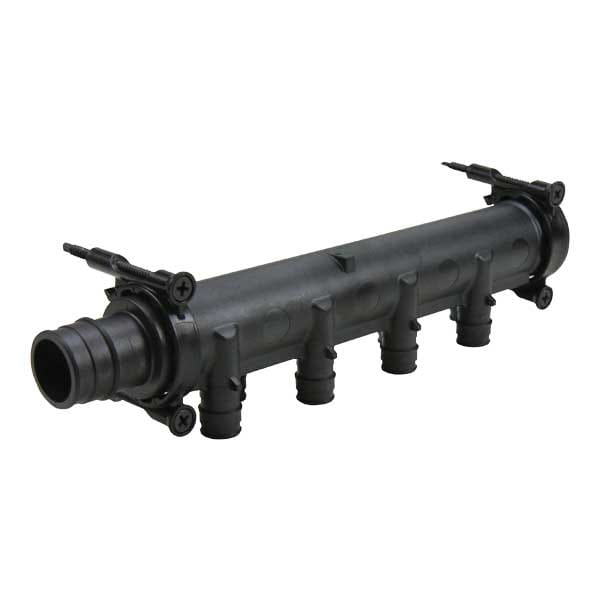

1" EP Branch Multi-port Tee, 8 (1/2") outlets with mounting clips
Numéro de pièceQ2281051
Trouver un distributeur
La disponibilité de produits spécifiques varie selon le distributeur.
Détails de l’élément
Informations et détails sur les pièces
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 9 51/64 inch |
|---|---|
| A [inch] | 9.791 inch |
| B [frac] | 1 3/16 inch |
| B [inch] | 1.191 inch |
| C [frac] | 1 3/32 inch |
| C [inch] | 1.1 inch |
| D [frac] | 29/32 inch |
| D [inch] | 0.9 inch |
| E [frac] | 21/32 inch |
| E [inch] | 0.65 inch |
| F [frac] | 23/32 inch |
| F [inch] | 0.719 inch |
| G [frac] | 2 3/64 inch |
| G [inch] | 2.054 inch |
| H [frac] | 1 49/64 inch |
| H [inch] | 1.768 inch |
| Weight per UOM [lbs/UOM] | 0.45 lbs/uom |
Listings
| Listings | IAPMO-ES|HUD MR 1269|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321 |
|---|
Normes
| Standards | ASTM E814/ULC S115|ASTM F877|ASTM F1960|CSA B137.5|ULC S102.2|ASTM E119/UL 263|NSF/ANSI/CAN 61|ULC S101|NSF/ANSI 14 |
|---|
Technical Data
| End Size 1 [inch|mm] | 1" |
|---|---|
| End Size 2 [inch|mm] | 1/2" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Engineered Polymer |
| Subcomponent Material | Body: Engineered Plastic Mounting clip: Polyethylene Screws: Carbon steel |
