Laipat PP pinnoitetut
Tuotetiedot
1068651 / 0545702
PAINEP. PP/METALLI LAIPPA 15-20 PN10/PN16
1068652 / 0545703
PAINEP. PP/METALLI LAIPPA 20-25 PN10/PN16
1068653 / 0545704
PAINEP. PP/METALLI LAIPPA 25-32 PN10/PN16
1068654 / 0545705
PAINEP. PP/METALLI LAIPPA 32-40 PN10/PN16
1053778 / 0543920
PAINEP. PP/METALLI LAIPPA 40-50 PN10/PN16
1053779 / 0543921
PAINEP. PP/METALLI LAIPPA 50-63 PN10/PN16
1033666 / 0543922
PAINEP. PP/METALLI LAIPPA 65-75 PN10/PN16
1053781 / 0543923
PAINEP. PP/METALLI LAIPPA 80-90 PN10/PN16
1033667 / 0543924
PAINEP. PP/METALLI LAIPPA 100-110 PN10/PN16
1053783 / 0543925
PAINEP. PP/METALLI LAIPPA 100-125 PN10/PN16
1053784 / 0543926
PAINEP. PP/METALLI LAIPPA 125-140 PN10/PN16
1033668 / 0543927
PAINEP. PP/METALLI LAIPPA 150-160 PN10/PN16
1053786 / 0543928
PAINEP. PP/METALLI LAIPPA 150-180 PN10/PN16
1053787 / 0543929
PAINEP. PP/METALLI LAIPPA 200-200 PN10/PN16
1053788 / 0543930
PAINEP. PP/METALLI LAIPPA 200-225 PN10/PN16
1053789 / 0543931
PAINEP. PP/METALLI LAIPPA 250-250 PN10/PN16
1056572 / 0543932
PAINEP. PP/METALLI LAIPPA 250-280 PN10/PN16
1053790 / 0543933
PAINEP. PP/METALLI LAIPPA 300-315 PN10/PN16
1056573 / 0543934
PAINEP. PP/METALLI LAIPPA 350-355 PN10/PN16
1053791 / 0543935
PAINEP. PP/METALLI LAIPPA 400-400 PN10/PN16
Dokumentit
Tuotteen tekniset dokumentit
2D Customer Drawings
94 B0000088099
Mounting dimensions Pressure flange DN 15-65 PN10/PN16 PP
Tuotekuvat
Tuotekuvat

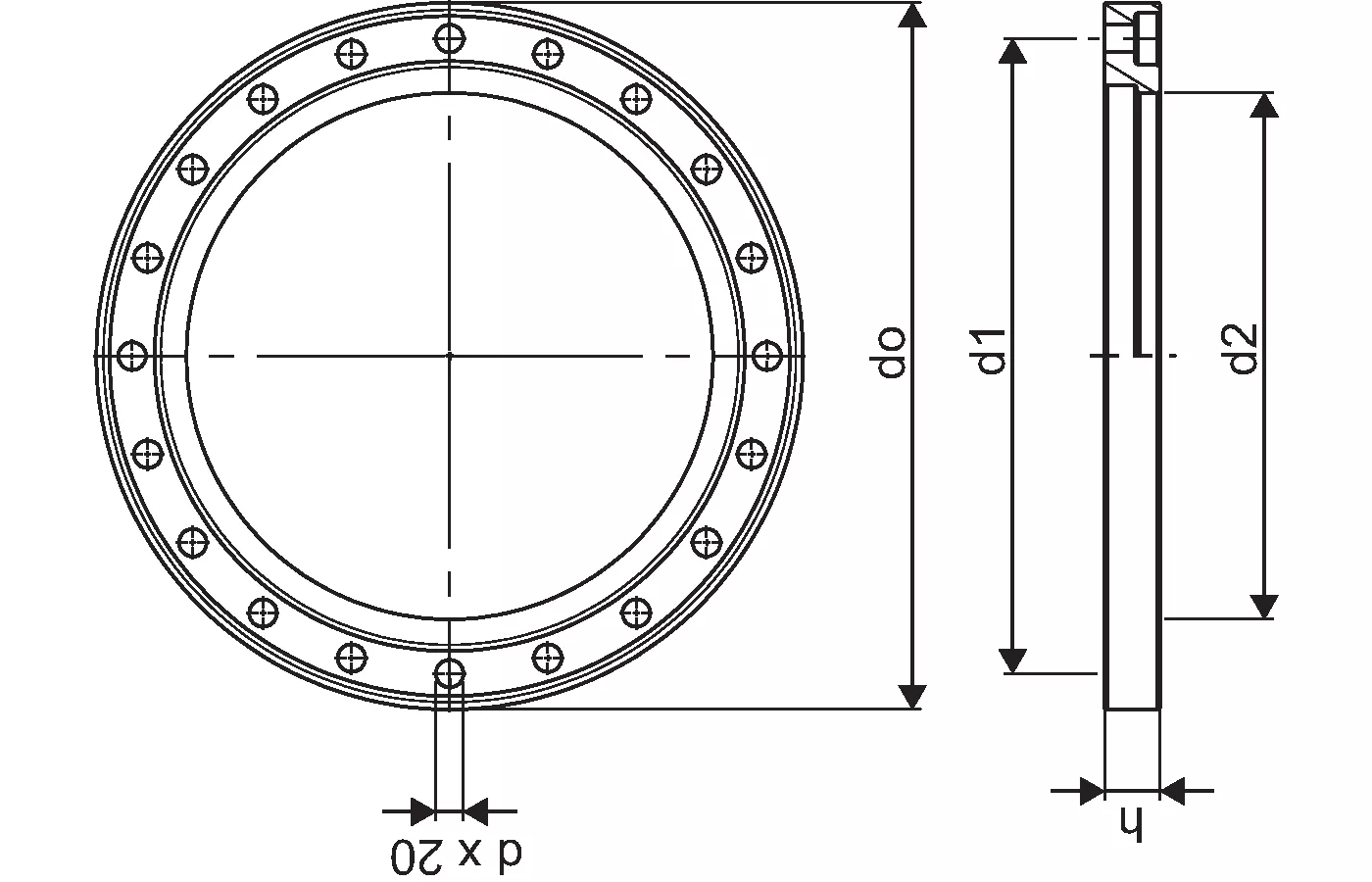

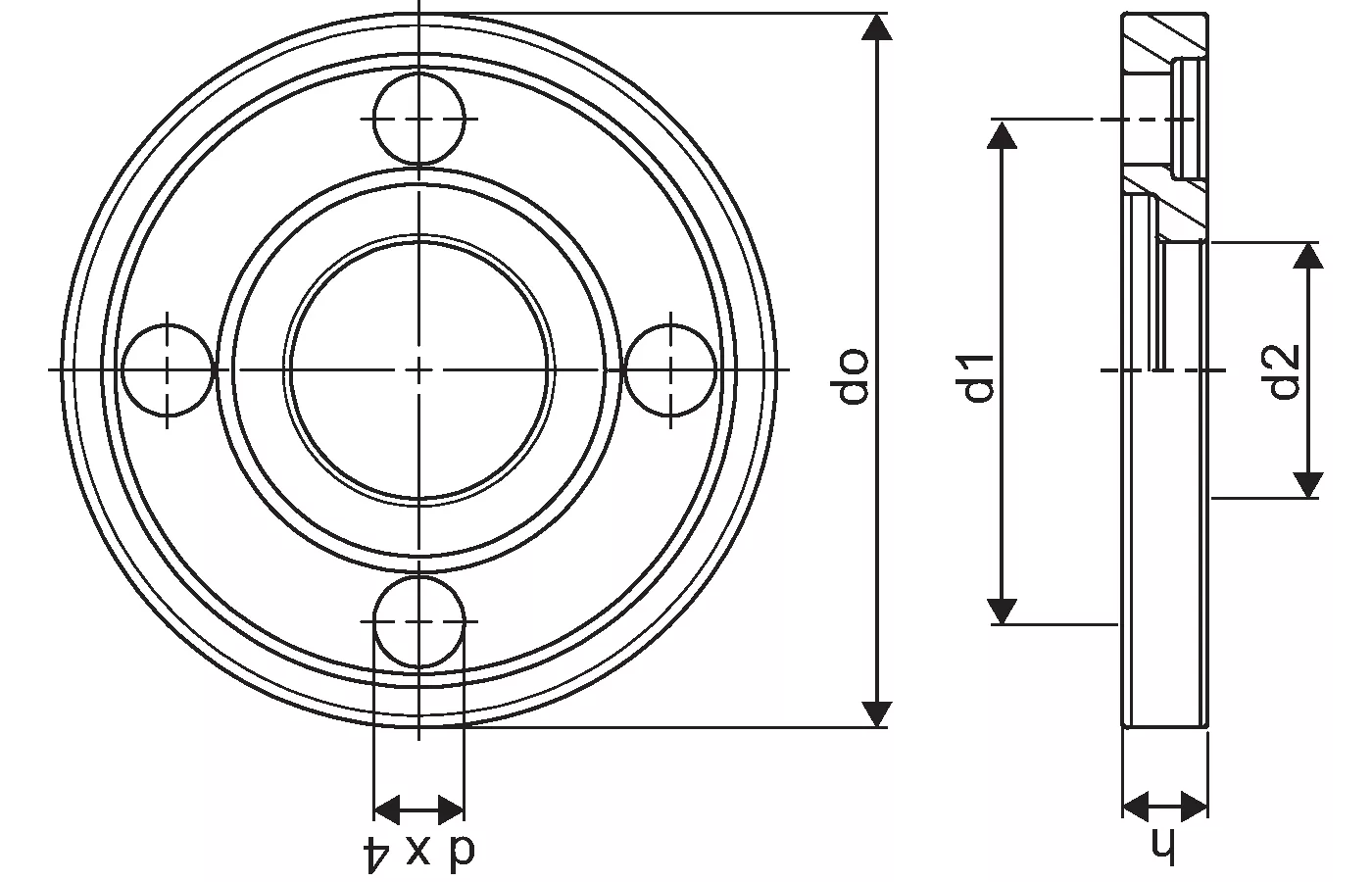

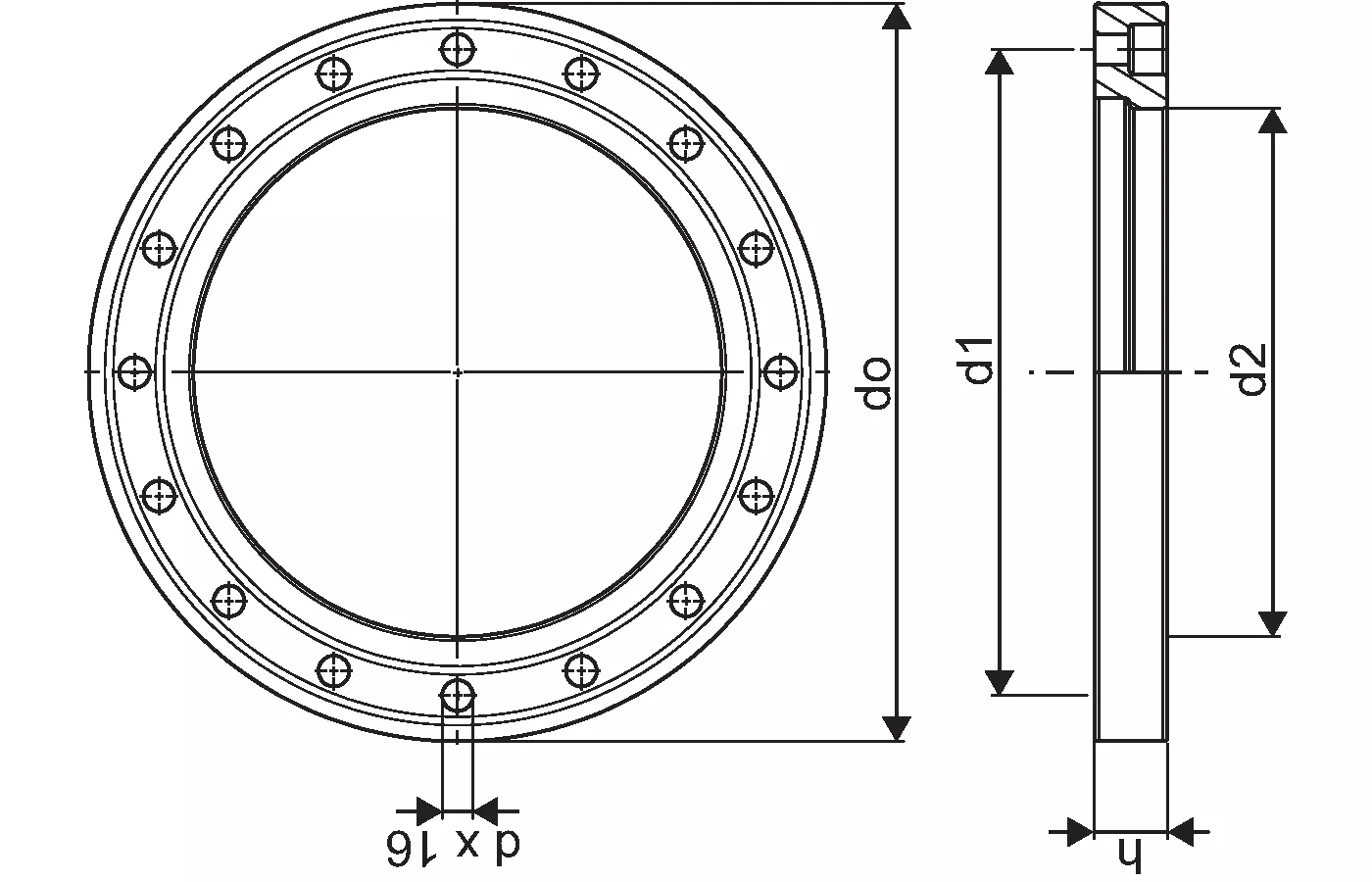

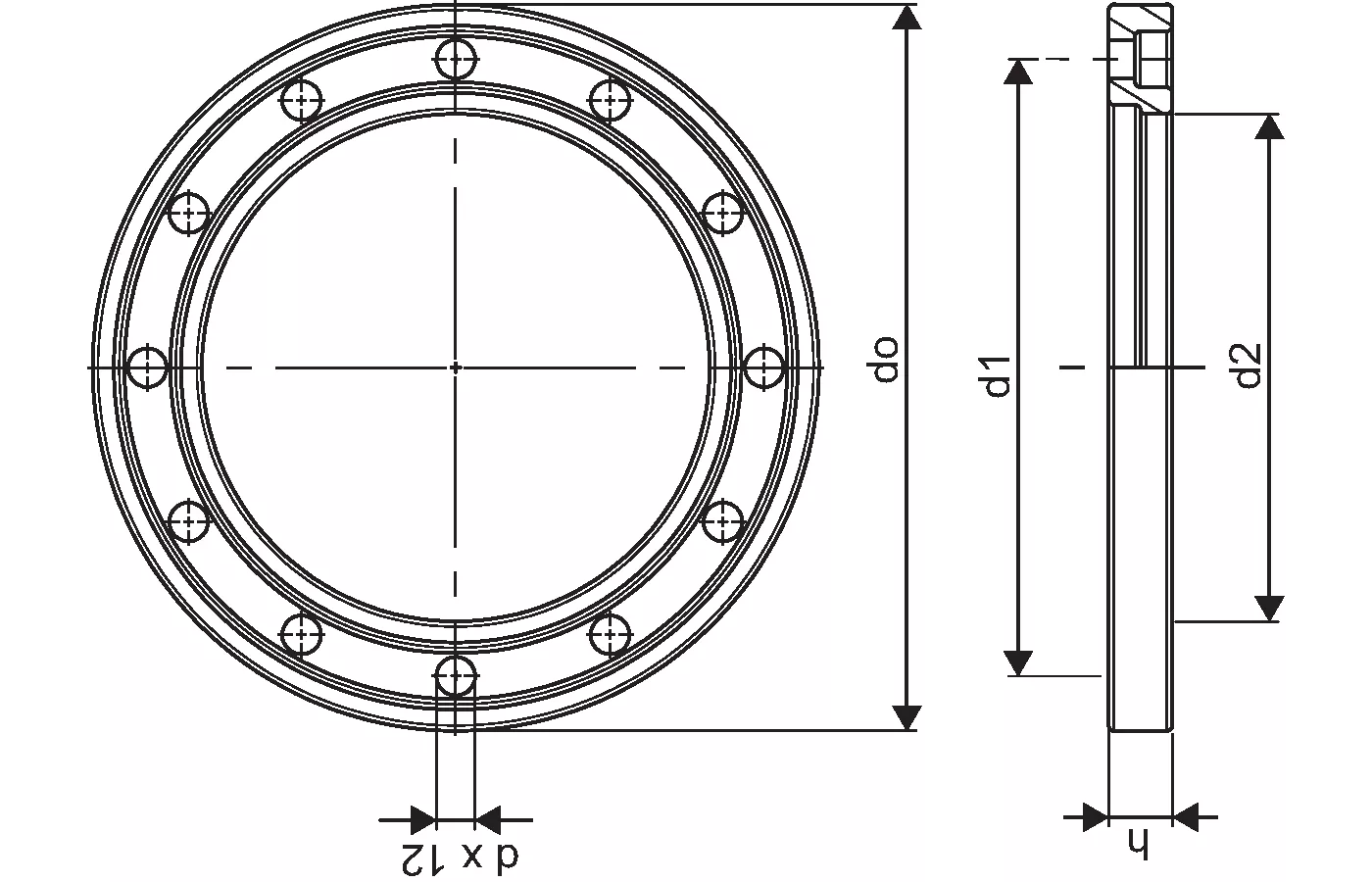

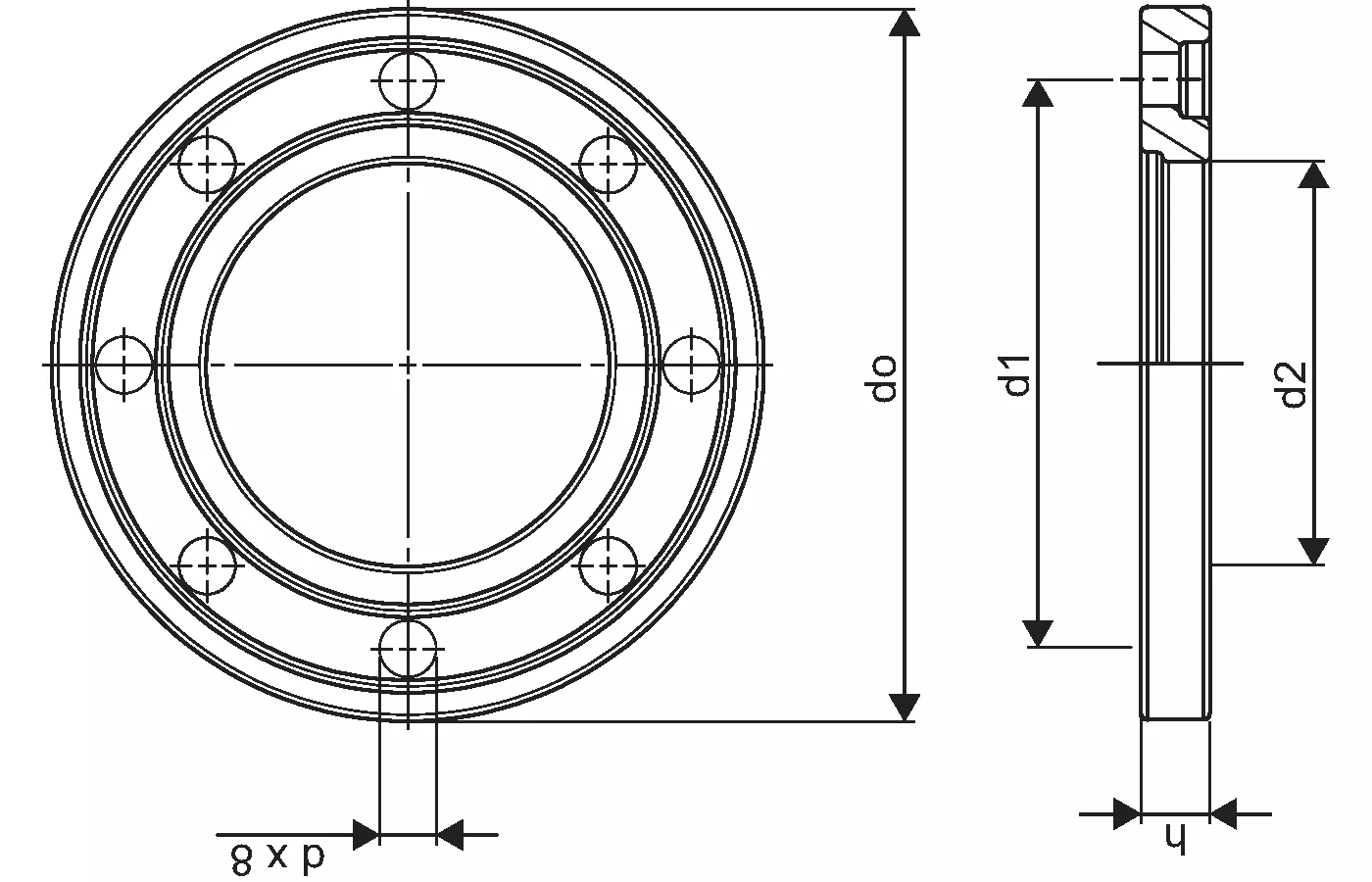

Z-mittapiirros
