Hitsattavat haarat
Tuotetiedot
1056670 / 1834441
PAINEP. PE HAARA 63/63X45 PN10 SDR17 PE100
1056671 / 1834442
PAINEP. PE HAARA 75/75X45 PN10 SDR17 PE100
1056672 / 1834443
PAINEP. PE HAARA 90/90X45 PN10 SDR17 PE100
1056673 / 1834444
PAINEP. PE HAARA 110/110X45 PN10 SDR17 PE100
1055680 / 1834431
IPLAST PAINEP. PE HAARA 140/140X90 PN10 SDR17 PE100
1068423 / 1830831
PAINEP. PE HAARA 160/160X45 PN10 SDR17 PE100
1033650 / 1834432
IPLAST PAINEP. PE HAARA 160/160X90 PN10 SDR17 PE100
1088360 / 1838441
PAINEP. PE HAARA 200/200X45 PN10 SDR17 PE100
1033651 / 1834434
IPLAST PAINEP. PE HAARA 200/200X90 PN10 SDR17 PE100
1052106 / 1834435
IPLAST PAINEP. PE HAARA 225/225X90 PN10 SDR17 PE100
1088362 / 1838442
PAINEP. PE HAARA 250/250X45 PN10 SDR17 PE100
1052107 / 1834436
IPLAST PAINEP. PE HAARA 250/250X90 PN10 SDR17 PE100
1088363 / 1838443
PAINEP. PE HAARA 280/280X45 PN10 SDR17 PE100
1055681 / 1834437
IPLAST PAINEP. PE HAARA 280/280X90 PN10 SDR17 PE100
1088364 / 1838444
PAINEP. PE HAARA 315/315X45 PN10 SDR17 PE100
1055682 / 1834438
IPLAST PAINEP. PE HAARA 315/315X90 PN10 SDR17 PE100
1068420 / 1830825
PAINEP. PE HAARA 40/40X45 PN16 SDR11 PE100
1068421 / 1830826
PAINEP. PE HAARA 50/50X45 PN16 SDR11 PE100
1068422 / 1830827
PAINEP. PE HAARA 63/63X45 PN16 SDR11 PE100
1052155 / 1828879
IPLAST PAINEP. PE HAARA 200/200X90 PN16 SDR11 PE100
1052156 / 1828888
IPLAST PAINEP. PE HAARA 225/225X90 PN16 SDR11 PE100
1052157 / 1828897
IPLAST PAINEP. PE HAARA 250/250X90 PN16 SDR11 PE100
1055695 / 1828906

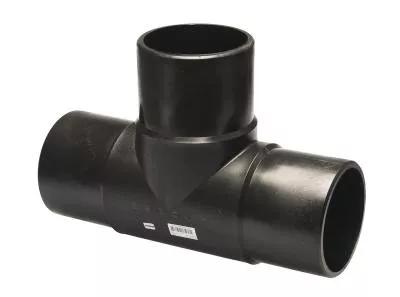

IPLAST PAINEP. PE HAARA 280/280X90 PN16 SDR11 PE100
Dokumentit
Tuotteen tekniset dokumentit
2D Customer Drawings
74 B0000088094

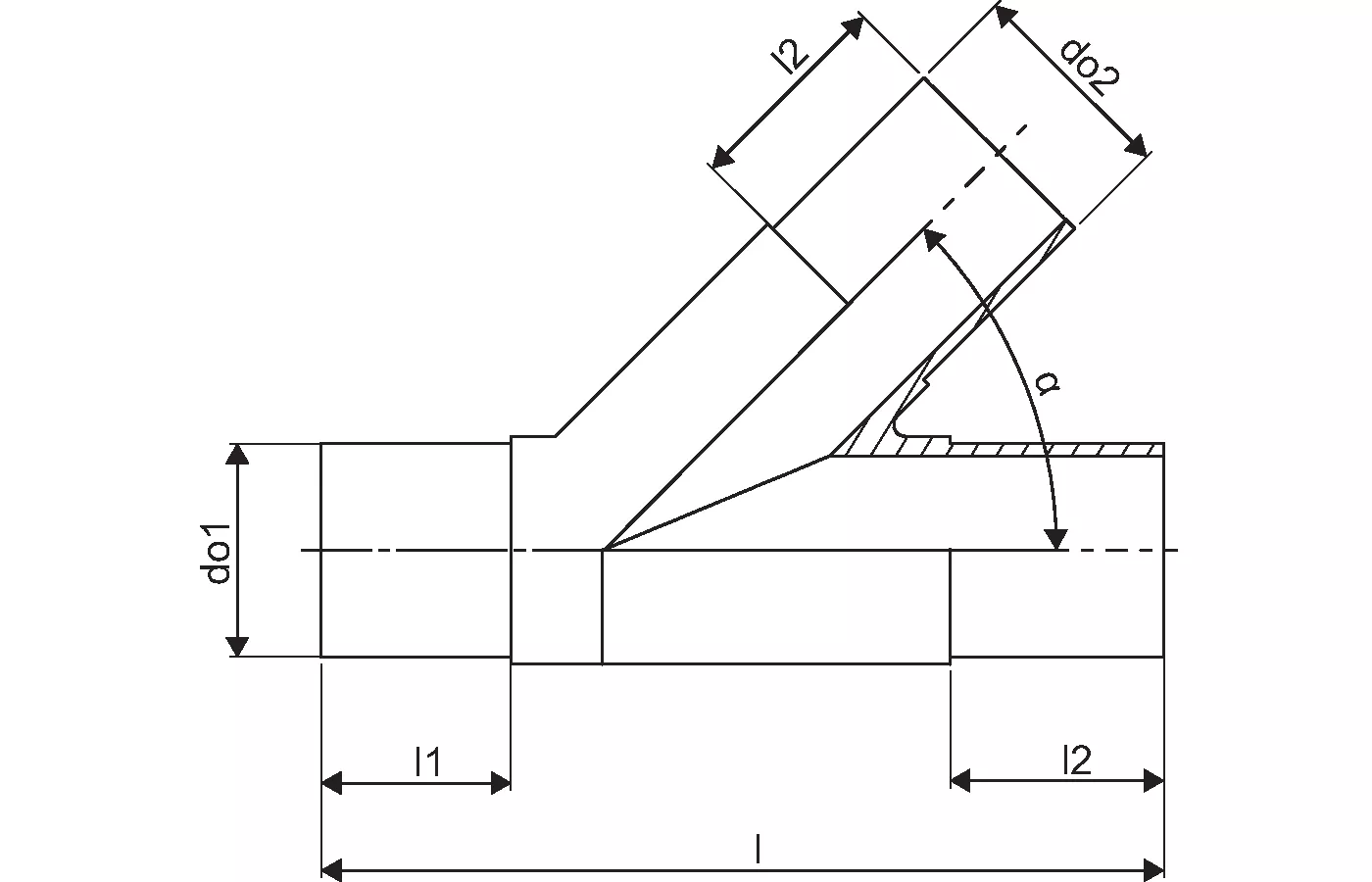

Mounting dimensions Pressure tee 45 deg PN10 SDR17
2D Customer Drawings
76 B0000088121
Mounting dimensions Pressure tee 90 deg PN10 SDR17
Tuotekuvat
Tuotekuvat

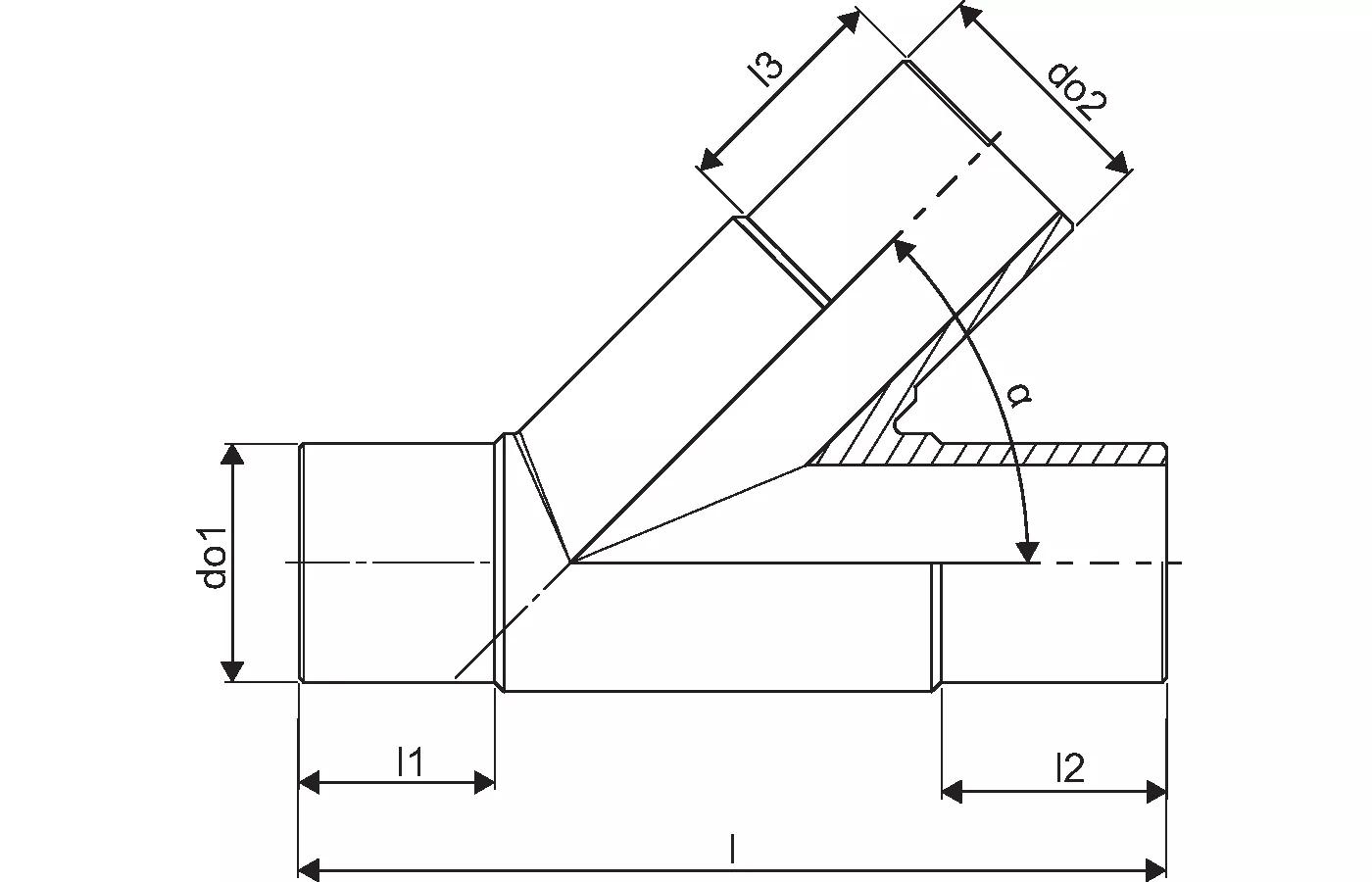

Z-mittapiirros
