UPONOR

ÖLJYNEROTIN-PE-30-6

ÖLJYNEROTIN-PE-30-6
Osan numero1141781
Tuotekortti

Tuotetiedot

Tekniset tiedot

LVI nro3634063
Mittayksikkökpl

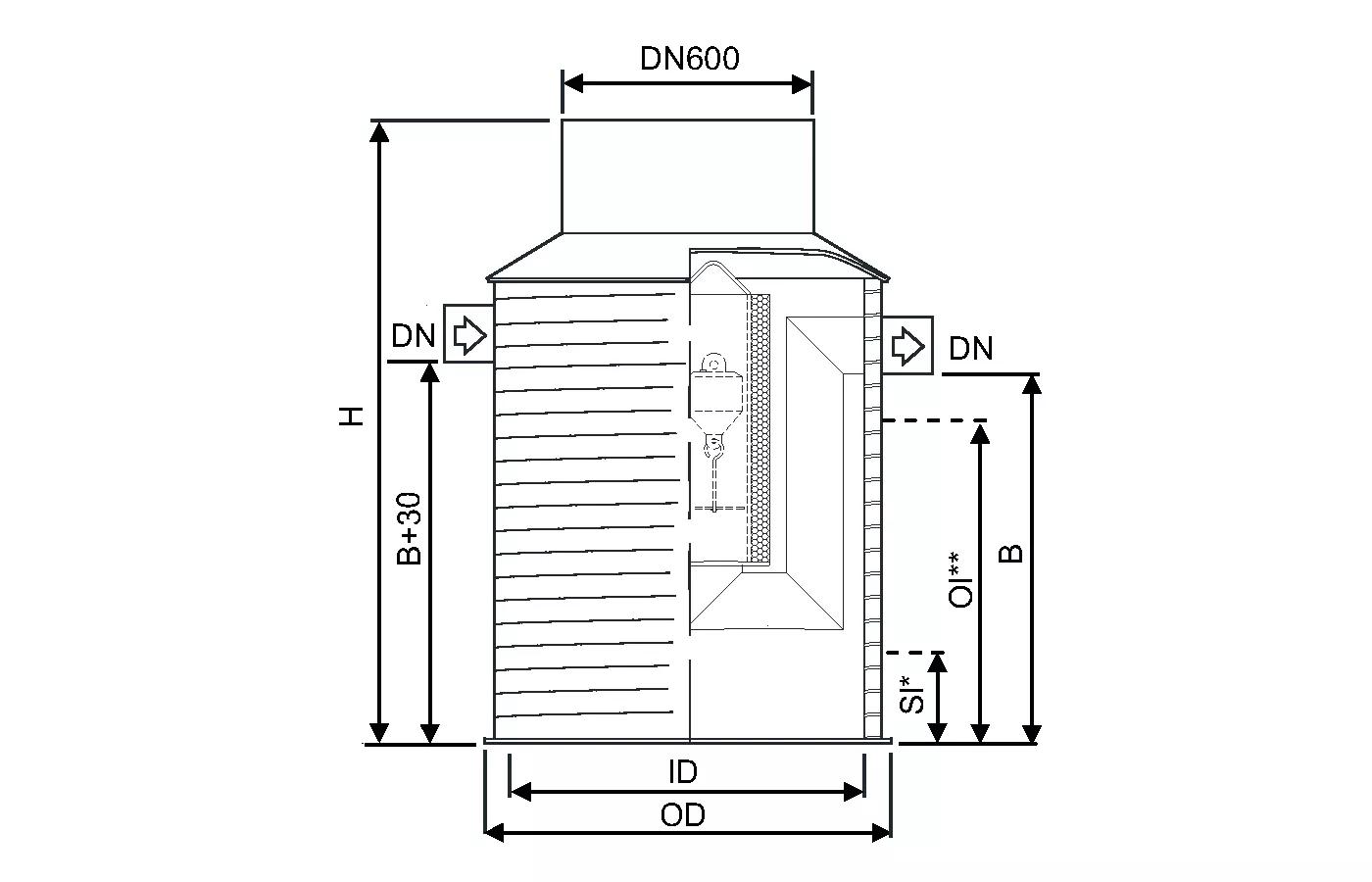

Z-mitta h3600 mm
Z-mitta h12760 mm
Z-mitta h22730 mm
Korkeus3600
Pituus2250
Paino698
Leveys2250

Dokumentit

2D Customer Drawings
227 B0000092229

Type drawing of Uponor Oil Separator PE-30-6 (PDF)

Download document
2D Customer Drawings
261 B0000090162

Uponor oil separator, all items 1141770-1141784 in the same image, mounting dimensions (EN)

Download document
Manuals
1 KB0000090147

Installation Manual for Uponor Oil separator (EN)

Download document
Suoritustasoilmoitukset
71 B0000089972

Declaration of Performance (DoP) for Uponor Oil Separators, in Finnish

Download document
Suoritustasoilmoitukset
102 B0000089815

Declaration of Performance (DoP) for Uponor Oil Separators

Download document
