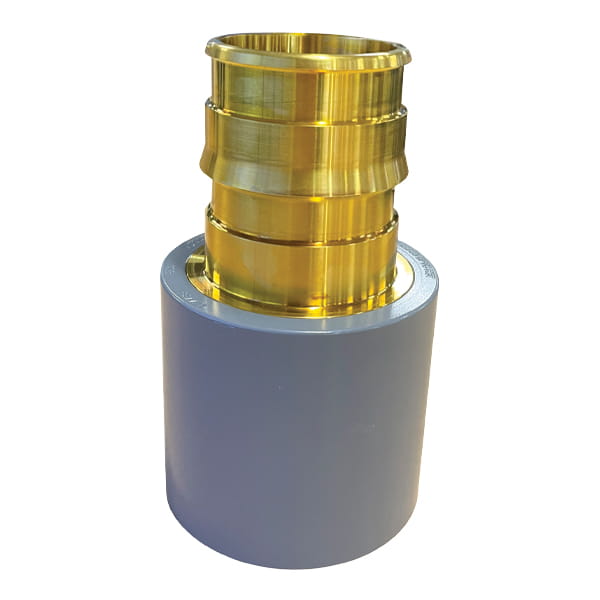

ProPEX LF Brass x CPVC Socket Adapter, 1/2" PEX x 1/2" CPVC (IPS Sch 80)
Part no.CP8515050
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 2 35/64 inch |
|---|---|
| A [inch] | 2.544 inch |
| B [frac] | 61/64 inch |
| B [inch] | 0.96 inch |
| C [frac] | 7/8 inch |
| C [inch] | 0.875 inch |
| D [frac] | 27/32 inch |
| D [inch] | 0.848 inch |
| E [frac] | 37/64 inch |
| E [inch] | 0.571 inch |
| F [frac] | 1 15/64 inch |
| F [inch] | 1.23 inch |
| G [frac] | 27/64 inch |
| G [inch] | 0.424 inch |
| H [frac] | 45/64 inch |
| H [inch] | 0.709 inch |
| Weight per UOM [lbs/UOM] | 0.18 lbs/uom |
Listings
| Listings | cNSFus-pw-G|U.P.Code|cQAIus P321 |
|---|
Standards
| Standards | ASTM F441|ASTM F439|ASTM F877|NSF/ANSI/CAN 372|ASTM F1960|ASTM F1970|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| End Size 1 [inch|mm] | 1/2" |
|---|---|
| End Size 2 [inch|mm] | 1/2" |
| End Type 1 | ProPEX |
| End Type 2 | CPVC |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Material group | LF Brass |
| Subcomponent Material | Body: LF Brass. CPVC O-ring: EPDM |
