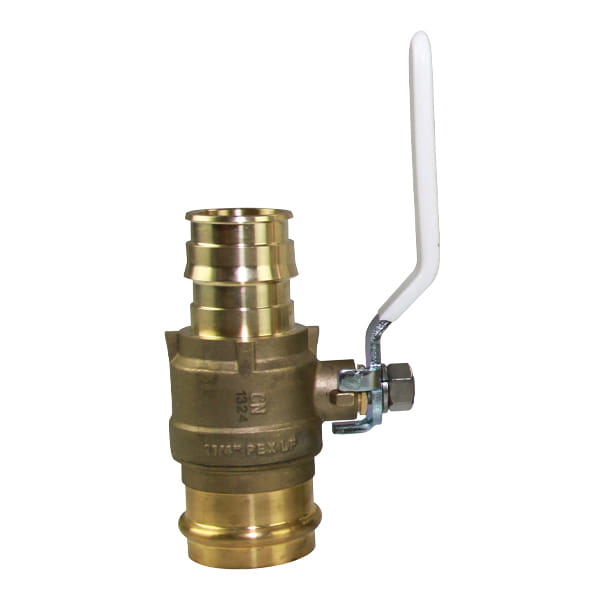

ProPEX LF Brass Transition Ball Valve (full port) SS Ball and Stem 2 1/2" PEX x 2 1/2" Copper Press
Part no.LFT4922525SS
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 7 15/16 inch |
|---|---|
| A [inch] | 7.945 inch |
| B [frac] | 3 61/64 inch |
| B [inch] | 3.956 inch |
| C [frac] | 6 37/64 inch |
| C [inch] | 6.578 inch |
| D [frac] | 13 1/8 inch |
| D [inch] | 13.121 inch |
| E [frac] | 9 33/64 inch |
| E [inch] | 9.508 inch |
| F [frac] | 1 35/64 inch |
| F [inch] | 1.543 inch |
| G [frac] | 4 5/8 inch |
| G [inch] | 4.619 inch |
| H [frac] | 1 37/64 inch |
| H [inch] | 1.584 inch |
| I [frac] | 2 51/64 inch |
| I [inch] | 2.79 inch |
| J [frac] | 3 5/32 inch |
| J [inch] | 3.159 inch |
| Weight per UOM [lbs/UOM] | 7.82 lbs/uom |
Listings
| Listings | cNSFus-pw-G|U.P.Code|ICC-PMG-1412 |
|---|
Standards
| Standards | ASME B16.51|ASTM F877|NSF/ANSI/CAN 372|NSF/ANSI 359|ICC-ES LC1002|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cold working pressure (CWP) [psi] | 250 psi |
|---|---|
| Cv | 110.9 |
| End Size 1 [inch|mm] | 2-1/2" |
| End Size 2 [inch|mm] | 2-1/2" |
| End Type 1 | ProPEX |
| End Type 2 | Copper Press |
| Operating Pressure 1 [PSI] | 200 psi |
| Operating Temperature 1 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
