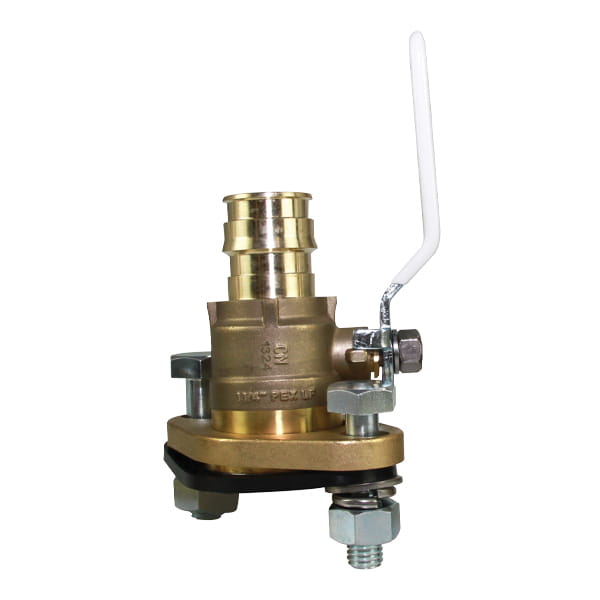

ProPEX LF Brass Transition Ball Valve (full port) SS Ball and Stem 1" PEX x 1" Flange
Part no.LFT4941010SS
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 3 9/64 inch |
|---|---|
| A [inch] | 3.146 inch |
| B [frac] | 4 1/8 inch |
| B [inch] | 4.125 inch |
| C [frac] | 3 17/32 inch |
| C [inch] | 3.531 inch |
| D [frac] | 5 53/64 inch |
| D [inch] | 5.827 inch |
| E [frac] | 4 35/64 inch |
| E [inch] | 4.547 inch |
| F [frac] | 11/16 inch |
| F [inch] | 0.685 inch |
| G [frac] | 2 15/64 inch |
| G [inch] | 2.236 inch |
| H [frac] | 3/4 inch |
| H [inch] | 0.748 inch |
| I [frac] | 1 19/64 inch |
| I [inch] | 1.295 inch |
| J [frac] | 1 3/16 inch |
| J [inch] | 1.181 inch |
| K [frac] | 1 21/64 inch |
| K [inch] | 1.335 inch |
| Weight per UOM [lbs/UOM] | 1.45 lbs/uom |
Listings
| Listings | cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | ASTM F877|NSF/ANSI/CAN 372|NSF/ANSI 359|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cold working pressure (CWP) [psi] | 250 psi |
|---|---|
| Cv | 24.2 |
| End Size 1 [inch|mm] | 1" |
| End Size 2 [inch|mm] | 1" |
| End Type 1 | ProPEX |
| End Type 2 | Flange |
| Operating Pressure 1 [PSI] | 200 psi |
| Operating Temperature 1 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
