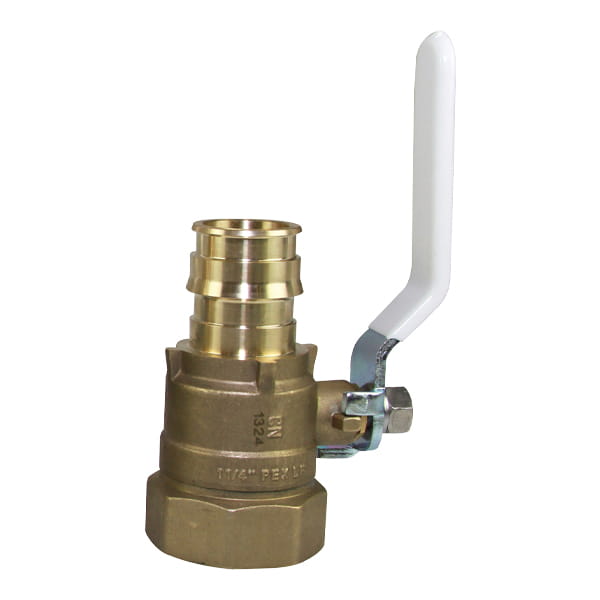

ProPEX LF Brass Transition Ball Valve (full port) SS Ball and Stem 1 1/4" PEX x 1 1/4" FNPT
Part no.LFT4901313SS
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 3 13/16 inch |
|---|---|
| A [inch] | 3.807 inch |
| B [frac] | 2 inch |
| B [inch] | 2 inch |
| C [frac] | 3 25/64 inch |
| C [inch] | 3.396 inch |
| D [frac] | 6 3/32 inch |
| D [inch] | 6.089 inch |
| E [frac] | 4 35/64 inch |
| E [inch] | 4.547 inch |
| F [frac] | 53/64 inch |
| F [inch] | 0.821 inch |
| G [frac] | 2 25/64 inch |
| G [inch] | 2.396 inch |
| H [frac] | 1 inch |
| H [inch] | 1 inch |
| I [frac] | 2 inch |
| I [inch] | 2 inch |
| J [frac] | 1 7/16 inch |
| J [inch] | 1.445 inch |
| K [frac] | 1 5/8 inch |
| K [inch] | 1.618 inch |
| Weight per UOM [lbs/UOM] | 1.38 lbs/uom |
Listings
| Listings | cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | ASTM F877|NSF/ANSI/CAN 372|NSF/ANSI 359|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cold working pressure (CWP) [psi] | 250 psi |
|---|---|
| Cv | 28.1 |
| End Size 1 [inch|mm] | 1-1/4" |
| End Size 2 [inch|mm] | 1-1/4" |
| End Type 1 | ProPEX |
| End Type 2 | FNPT |
| Operating Pressure 1 [PSI] | 200 psi |
| Operating Temperature 1 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
