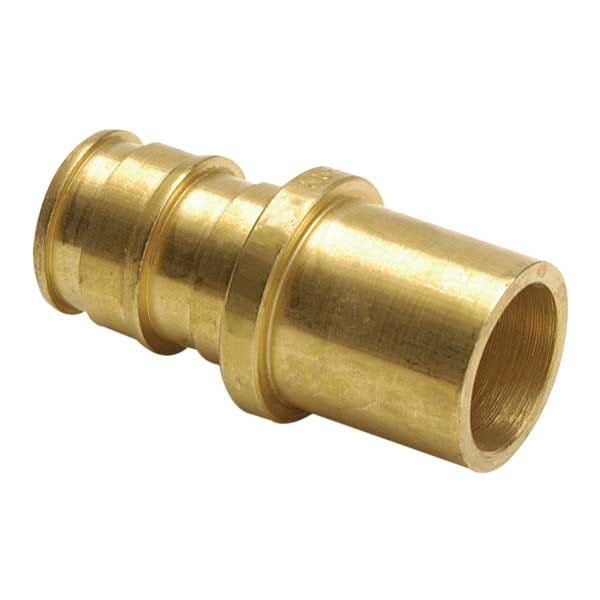

ProPEX LF Brass Sweat Fitting Adapter, 2" PEX x 2" Copper
Part no.LF4502020
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|USEHC|NSPC|IMC |
|---|
Dimensions
| Weight per UOM [lbs/UOM] | 0.8 lbs/uom |
|---|---|
| A [inch] | 3.807 inch |
| A [frac] | 3 13/16 inch |
| B [inch] | 0.25 inch |
| B [frac] | 1/4 inch |
| C [inch] | 1.41 inch |
| C [frac] | 1 13/32 inch |
| D [inch] | 2.124 inch |
| D [frac] | 2 1/8 inch |
| E [inch] | 2.6 inch |
| E [frac] | 2 19/32 inch |
| F [inch] | 1.062 inch |
| F [frac] | 1 1/16 inch |
| G [inch] | 2.147 inch |
| G [frac] | 2 9/64 inch |
Listings
| Listings | HUD MR 1269|ICC-ES-PMG|cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | ASTM F877|NSF/ANSI/CAN 372|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| End Type 1 | ProPEX |
|---|---|
| End Type 2 | Sweat |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Prop 65 label required? | Yes |
| End Size 1 [inch|mm] | 2" |
| End Size 2 [inch|mm] | 2" |
| Material group | LF Brass |
