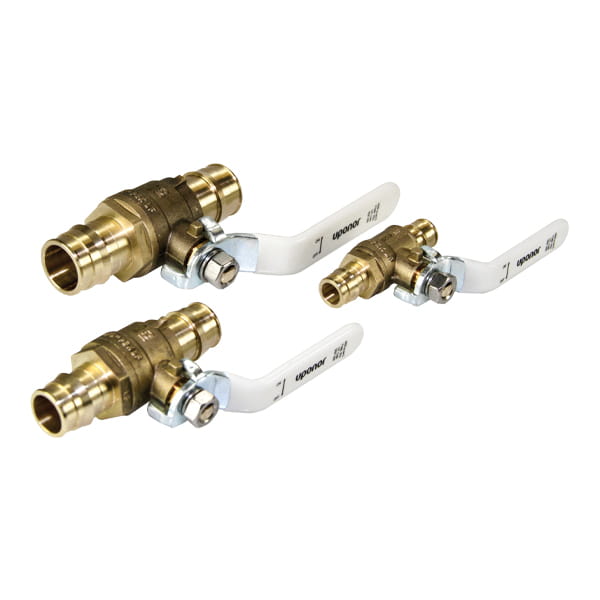

ProPEX LF Brass Stop and Drain Ball Valve (full port), 1/2" PEX x 1/2" PEX
Part no.LFD4815050
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 45/64 inch |
|---|---|
| A [inch] | 0.709 inch |
| B [frac] | 1 15/64 inch |
| B [inch] | 1.24 inch |
| C [frac] | 1 7/16 inch |
| C [inch] | 1.44 inch |
| D [frac] | 3 23/64 inch |
| D [inch] | 3.361 inch |
| E [frac] | 25/64 inch |
| E [inch] | 0.394 inch |
| F [frac] | 5/8 inch |
| F [inch] | 0.63 inch |
| G [frac] | 4 11/16 inch |
| G [inch] | 4.68 inch |
| H [frac] | 1 53/64 inch |
| H [inch] | 1.834 inch |
| I [frac] | 1 29/64 inch |
| I [inch] | 1.459 inch |
| Weight per UOM [lbs/UOM] | 0.3 lbs/uom |
| J [frac] | 2 21/32 inch |
| J [inch] | 2.657 inch |
Listings
| Listings | cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | ASTM F877|NSF/ANSI/CAN 372|NSF/ANSI 359|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cv | 5.7 |
|---|---|
| End Size 1 [inch|mm] | 1/2" |
| End Size 2 [inch|mm] | 1/2" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| Operating Pressure 1 [PSI] | 200 psi |
| Operating Temperature 1 [°F] | 200 °F |
| Prop 65 label required? | Yes |
| Material group | LF Brass |
