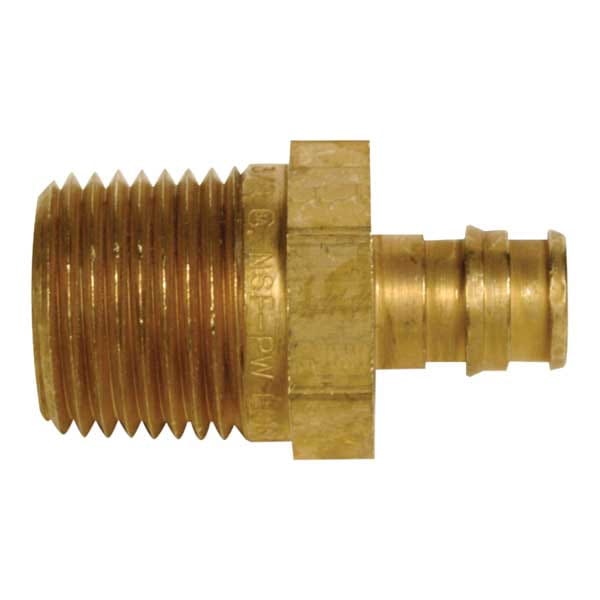

ProPEX LF Brass Male Threaded Adapter, 1" PEX x 1" NPT

Part no.LF4521010
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Item details

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 9/32 inch
A [inch]2.286 inch
B [frac]1 7/64 inch
B [inch]1.105 inch
C [frac]1 1/2 inch
C [inch]1.502 inch
D [frac]27/64 inch
D [inch]0.422 inch
E [frac]1 3/16 inch
E [inch]1.181 inch
F [frac]1 21/64 inch
F [inch]1.335 inch
G [frac]3/4 inch
G [inch]0.751 inch
Equivalent length through [ft]3.2 ft
Weight per UOM [lbs/UOM]0.38 lbs/uom

Listings

ListingsIAPMO-ES|cNSFus-pw-fs-G|ICC-ES-PMG|U.P.Code

Standards

StandardsASTM F877|NSF/ANSI/CAN 372|ASTM F1960|CSA B137.5|UL 1821|NSF/ANSI/CAN 61|NSF/ANSI 14

Technical Data

Cv19.9
End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2MNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupLF Brass
Prop 65 label required?Yes
