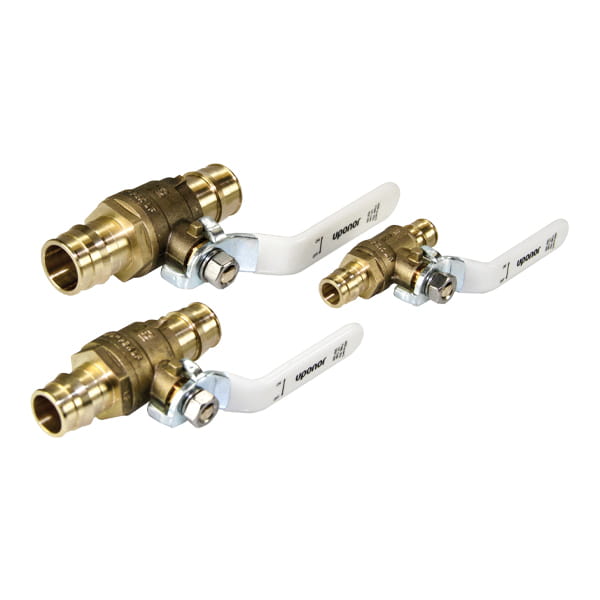

ProPEX LF Brass Ball Valve (full port), 3/4" PEX x 3/4" PEX
Part no.LFR4817575
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC |
|---|
Dimensions
| A [frac] | 15/16 inch |
|---|---|
| A [inch] | 0.945 inch |
| B [frac] | 1 1/8 inch |
| B [inch] | 1.13 inch |
| C [frac] | 1 5/8 inch |
| C [inch] | 1.621 inch |
| D [frac] | 3 11/32 inch |
| D [inch] | 3.348 inch |
| E [frac] | 17/32 inch |
| E [inch] | 0.531 inch |
| F [frac] | 29/64 inch |
| F [inch] | 0.447 inch |
| G [frac] | 4 31/32 inch |
| G [inch] | 4.976 inch |
| H [frac] | 2 5/32 inch |
| H [inch] | 2.153 inch |
| I [frac] | 1 11/32 inch |
| I [inch] | 1.339 inch |
| Weight per UOM [lbs/UOM] | 0.39 lbs/uom |
| J [frac] | 3 1/64 inch |
| J [inch] | 3.02 inch |
Listings
| Listings | cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | NSF/ANSI/CAN 372|ASTM F877|NSF/ANSI 359|ASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| Cv | 10.1 |
|---|---|
| End Size 1 [inch|mm] | 3/4" |
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| Prop 65 label required? | Yes |
| Operating Pressure 1 [PSI] | 200 psi |
| Operating Temperature 1 [°F] | 200 °F |
| Material group | LF Brass |
