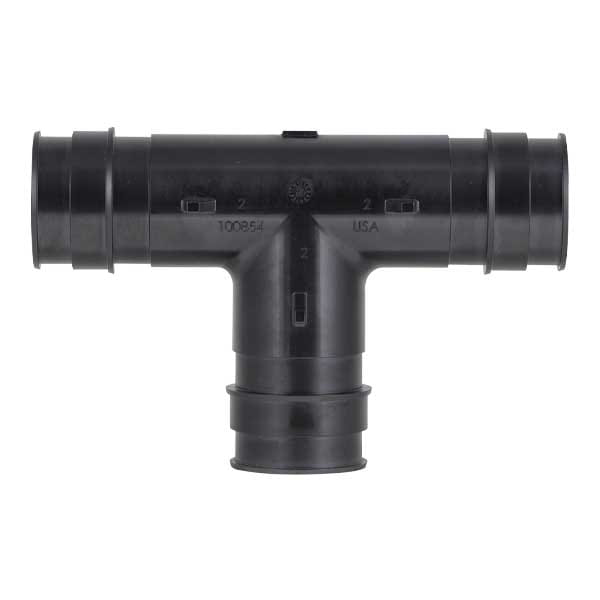

ProPEX EP Tee, 3" PEX x 3" PEX x 3" PEX
Part no.Q4753000
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | IMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC |
|---|
Dimensions
| A [frac] | 3 3/8 inch |
|---|---|
| A [inch] | 3.38 inch |
| B [frac] | 2 3/4 inch |
| B [inch] | 2.75 inch |
| C [frac] | 2 3/4 inch |
| C [inch] | 2.75 inch |
| D [frac] | 3 3/8 inch |
| D [inch] | 3.38 inch |
| E [frac] | 1 29/64 inch |
| E [inch] | 1.45 inch |
| F [frac] | 3 3/8 inch |
| F [inch] | 3.38 inch |
| G [frac] | 12 17/64 inch |
| G [inch] | 12.26 inch |
| H [frac] | 6 3/8 inch |
| H [inch] | 6.367 inch |
| I [frac] | 4 13/64 inch |
| I [inch] | 4.2 inch |
| Equivalent length branch [ft] | 23.9 ft |
| Equivalent length through [ft] | 2.8 ft |
| Weight per UOM [lbs/UOM] | 1.86 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321|HUD MR 1269 |
|---|
Standards
| Standards | ASTM F1960|ASTM E119/UL 263|ASTM E84|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF/ANSI/CAN 61|ULC S101|NSF/ANSI 14 |
|---|
Technical Data
| Cv Branch | 122.8 |
|---|---|
| Cv Through | 286.6 |
| End Size 1 [inch|mm] | 3" |
| End Size 2 [inch|mm] | 3" |
| End Size 3 [inch|mm] | 3" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| End Type 3 | ProPEX |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Engineered Polymer |
