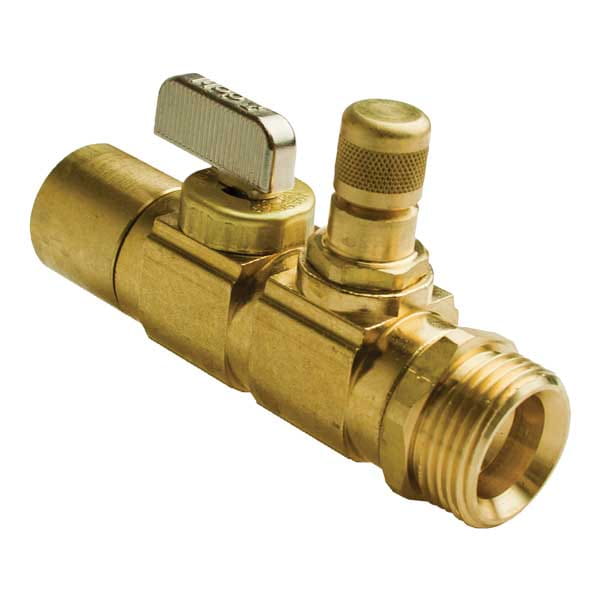

ProPEX Ball and Balancing Valve, 3/4" PEX x 3/4" Copper Adapter
Part no.Q5907575
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Dimensions
| A [frac] | 55/64 inch |
|---|---|
| A [inch] | 0.866 inch |
| B [frac] | 2 21/32 inch |
| B [inch] | 2.65 inch |
| C [frac] | 1 19/64 inch |
| C [inch] | 1.301 inch |
| D [frac] | 29/32 inch |
| D [inch] | 0.913 inch |
| E [frac] | 1/2 inch |
| E [inch] | 0.5 inch |
| F [frac] | 11/16 inch |
| F [inch] | 0.683 inch |
| G [frac] | 3 3/4 inch |
| G [inch] | 3.746 inch |
| H [frac] | 2 1/8 inch |
| H [inch] | 2.133 inch |
| I [frac] | 1 inch |
| I [inch] | 1 inch |
| J [frac] | 4 27/64 inch |
| J [inch] | 4.417 inch |
| Weight per UOM [lbs/UOM] | 0.8 lbs/uom |
Standards
| Standards | ASTM F1960|ASTM F877 |
|---|
Technical Data
| Cold working pressure (CWP) [psi] | 249.5 psi |
|---|---|
| Cv | 6.7 |
| End Size 1 [inch|mm] | 3/4" |
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | ProPEX |
| End Type 2 | Sweat |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Prop 65 label required? | Yes |
| Subcomponent Material | CA 360 Brass |
