Coil; PEX-a Plumbing Systems; Tubing; Uponor AquaPEX; White; f1060750

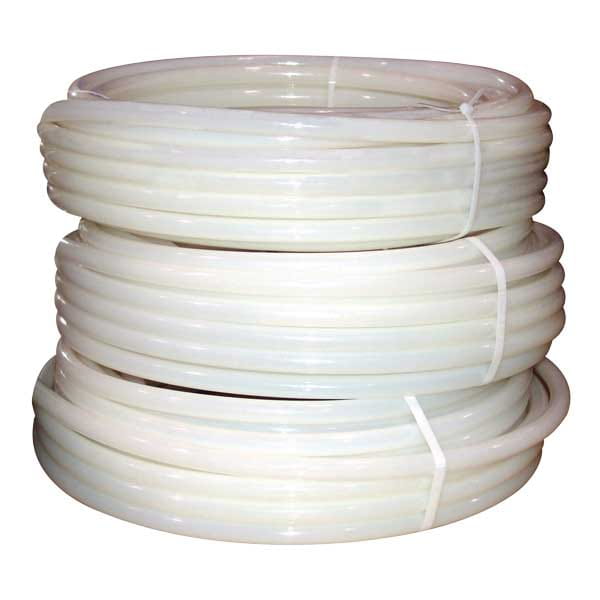

3/4" Uponor AquaPEX White, 300-ft. coil

Part no.F1060750
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Item details

Part information and details

Codes

CodesIMC|UPC|IBC|IRC|NBC of Canada|IPC|UFGS|NPC of Canada|UMC|NSPC

Dimensions

Inner diameter coil [inch]22 inch
Outer diameter coil [inch]32 inch
Coil width [inch]8 inch
Inner diameter pipe [inch]0.671 inch
Outer diameter pipe [inch]0.875 inch
Weight per UOM [lbs/UOM]34 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|CCMC|PPI TR-4|CSA|UL|U.P.Code|cQAIus P321|cNSFus-pw-fs|HUD MR 1269|BMEC

Standards

StandardsASTM F1960|UL 1821|ASTM E119/UL 263|ASTM F876|ASTM E84|ASTM F2023|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|CSA B214|NSF/ANSI/CAN 61|ULC S101|NSF/ANSI 14

Technical Data

Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Linear expansion rate [inch/10°F/100ft]1.1 inch/10°f/100ft
Material groupPEX
Pipe density [lb/ft³]0.0584 lb/ft³
SDR-class9
Material Service PipeCrosslinked polyethylene (PEX-a) tubing; SDR-9
Thermal conductivity pipe [BTUin/ft²hrF°]0.22 btuin/ft²hrf°
