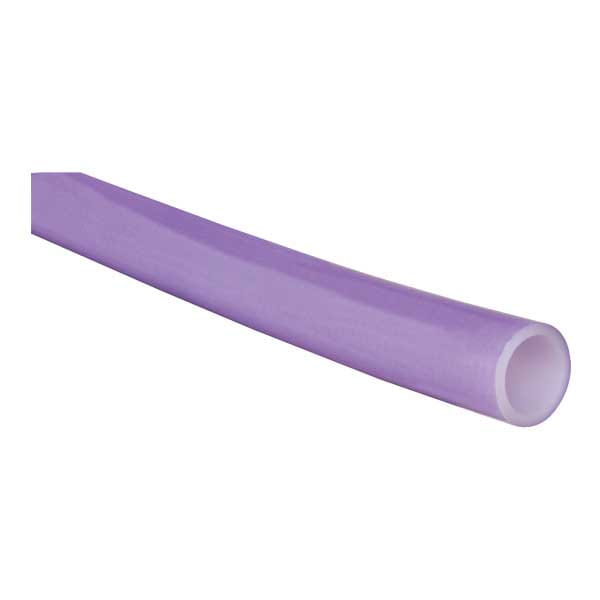

2" Uponor AquaPEX Purple Reclaimed Water, 20-ft. straight length, 100 ft. (5 per bundle)
Part no.F1962002
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IMC|NBC of Canada|IPC|IBC|IRC|UMC|NSPC|UFGS|NPC of Canada |
|---|
Dimensions
| Weight per UOM [lbs/UOM] | 68.1 lbs/uom |
|---|---|
| Inner diameter pipe [inch] | 1.629 inch |
| Outer diameter pipe [inch] | 2.125 inch |
| Bundle Diameter [in] | 8 inch |
| Bundle Length [in] | 258 inch |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|CSA|PPI TR-4|cQAIus P321|U.P.Code|HUD MR 1269|cNSFus-rw|BMEC |
|---|
Standards
| Standards | ASTM E119/UL 263|ASTM F1960|ASTM E84|ASTM F2023|ASTM E814/ULC S115|CSA B214|CSA B137.5|NSF/ANSI 14|ASTM F876|ASTM F877|ULC S102.2|ULC S101|CSA B128.1 |
|---|
Technical Data
| Operating Pressure 1 [PSI] | 160 psi |
|---|---|
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material Service Pipe | Crosslinked polyethylene (PEX-a) tubing; SDR-9 |
| Thermal conductivity pipe [BTUin/ft²hrF°] | 0.22 btuin/ft²hrf° |
| Material group | PEX |
| Linear expansion rate [inch/10°F/100ft] | 1.1 inch/10°f/100ft |
| Pipe density [lb/ft³] | 0.0584 lb/ft³ |
