TruFLOW extension kit instruction sheet
Instruction sheet for Uponor TruFLOW classic manifold extension kit. See how to assemble and install the TruFLOW extension kit for radiant heating systems.
TruFLOW classic manifold extension kits
The TruFLOW Classic manifold extension kits are designed for easy in-line extension of up to two additional loops for the TruFLOW Classic manifold assembly. The kit contains two 11⁄4" BSP nipples, one supply manifold, one return manifold and two loop end caps. Use silicone lubricant on the male threads to ease installation.
Find a distributor
Availability of specific products varies by distributor.
Documents
Technical manual
Similar products
Replacement and spare parts
Replacement parts for all Uponor products.
TruFLOW manifold actuator adapters
TruFLOW manifold actuator adapters and spacer rings convert the manifold actuator threads to fit Uponor thermal actuators (A3023522). The brass adapter is included with the TruFLOW manifolds (Jr. and Classic). The spacer ring is included in the actuator packaging.Note: Use only with TruFLOW Jr. and Classic manifolds.

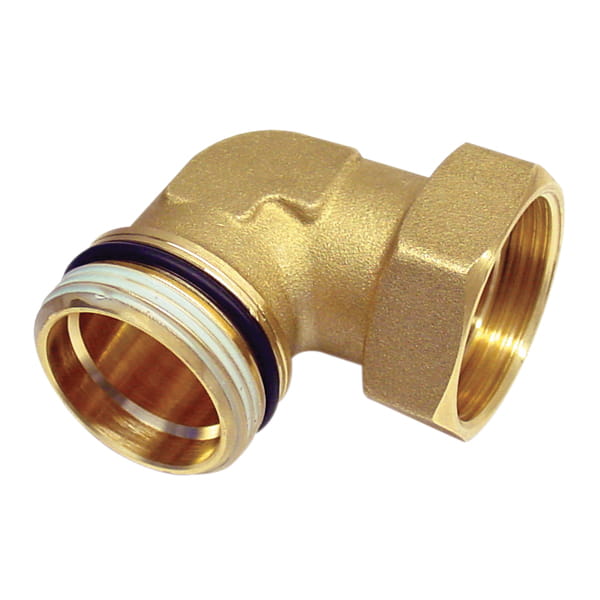

TruFLOW classic manifold offset unions
The TruFLOW Classic manifold offset unions feature an R32 union by 11⁄4" BSP male connection. They are designed for easy alignment of the supply and return piping at the manifold. Use silicone lubricant on the male threads to ease installation.
EP heating manifold mounting brackets
EP heating manifold mounting brackets mount manifold assemblies to a wall.
