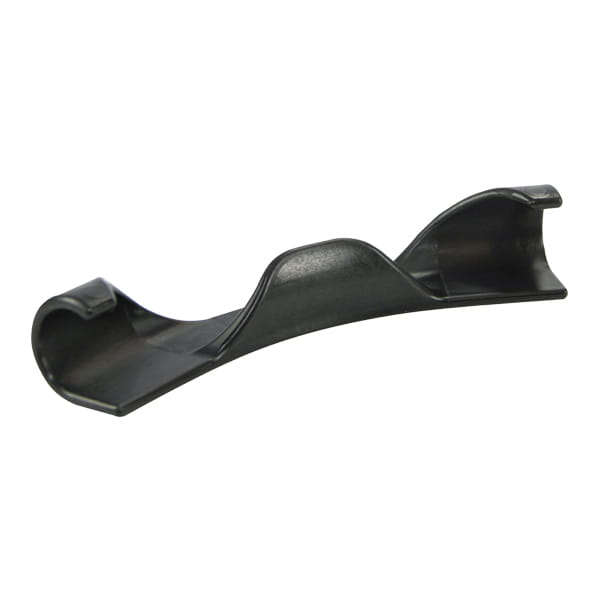

45-degree plastic bend supports

PEX clips provide excellent holding power. The 3/8" and 1/2" can attach together laterally for tight installations. PEX clips attach under the wood subfloor for joist-heating applications. The clips prevent the tubing from coming in direct contact with the subfloor, eliminating the possibility of creating uncomfortable hot spots on the floor above. Drywall screws are commonly used to secure the clips to the wood subfloor.Note: Select a screw length that does not penetrate entirely through the wood subfloor once installed.

PEX stand-up brackets are used in residential slab or commercial multi-floor construction. Secure the bracket to the deck form. Then install the 1/2" PEX tubing in the bracket, either with the 1/2" PEX tubing alone or the 1/2" PEX tubing sleeved inside a corrugated polyethylene carrier tube. The brackets are available in either single- or five-tube configurations.

PEX-a pipe supports are made of 23-gauge, galvanized steel and are available in 1/2" to 3-1/2" sizes for suspended commercial plumbing and hydronic piping applications, enabling extended support spacing. Each package quantity contains 15 support straps (i.e., three support straps per 9-ft. length).

PVC bend supports provide a rigid, 90-degree bend and sleeve for 3/8", 1/2", 5/8", 3/4" and 1" Uponor PEX tubing runs exiting a concrete slab.
